Casement (PlyGem) window hardware

Quick Learner from Calabash NC

Oct 18, 2023 1:31 pm

Tom
As a follow up ... I have 14 windows and and I need 12 sets of hinge hardware (upper and lower) replaced. My original supplier said it may be yuor part # 36-048 .
Also if there are other parts for casement windows can you recommend them? (example the plastic hook shaped clip)

I've seen the video but will hire a contractor to do the work if needed.

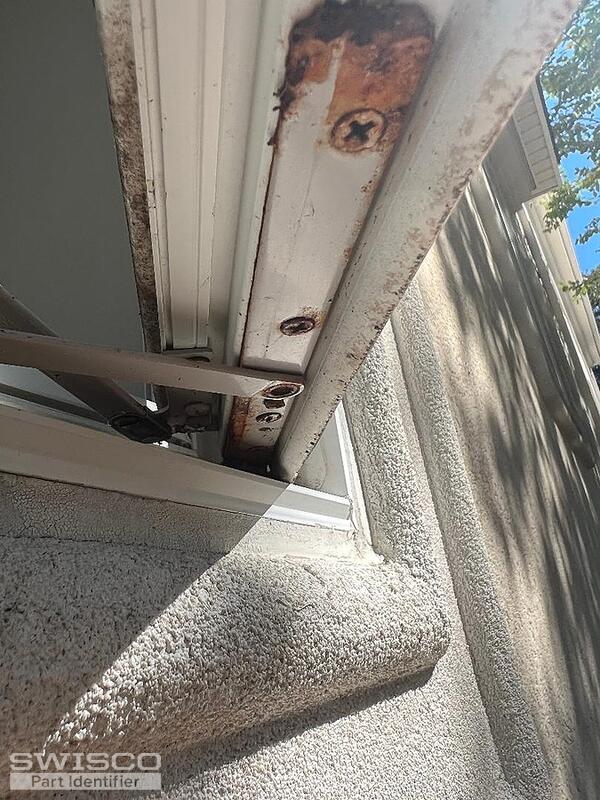

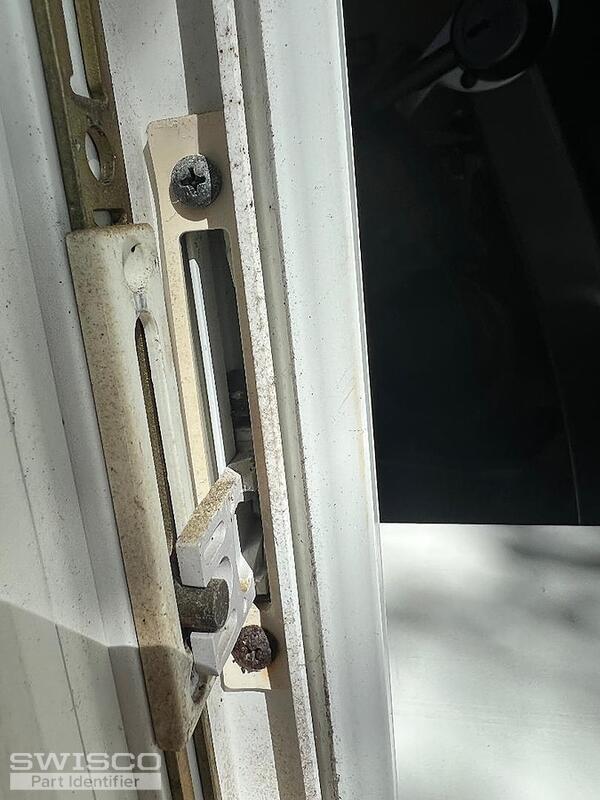

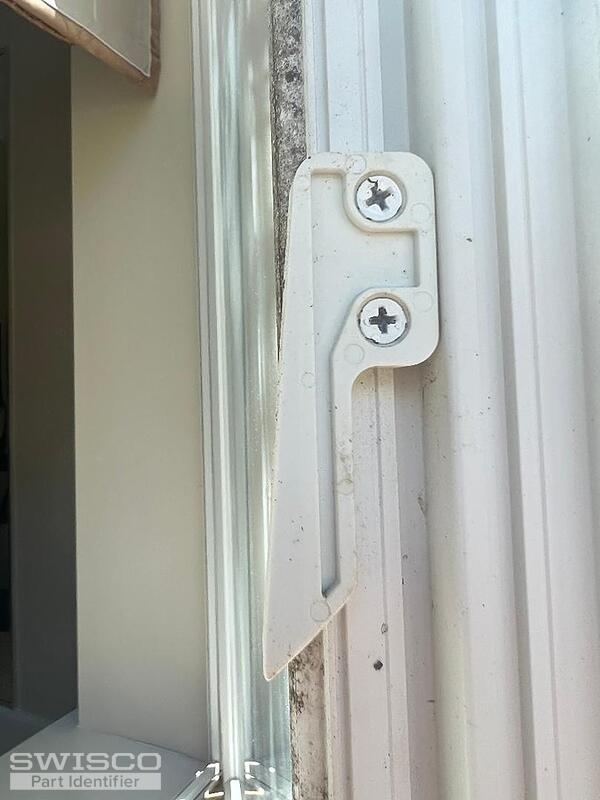

3 user uploaded images

6 Replies

+ Add a Comment

Quick Learner from Calabash NC

Oct 18, 2023 2:09 pm

Second part to my earlier communications

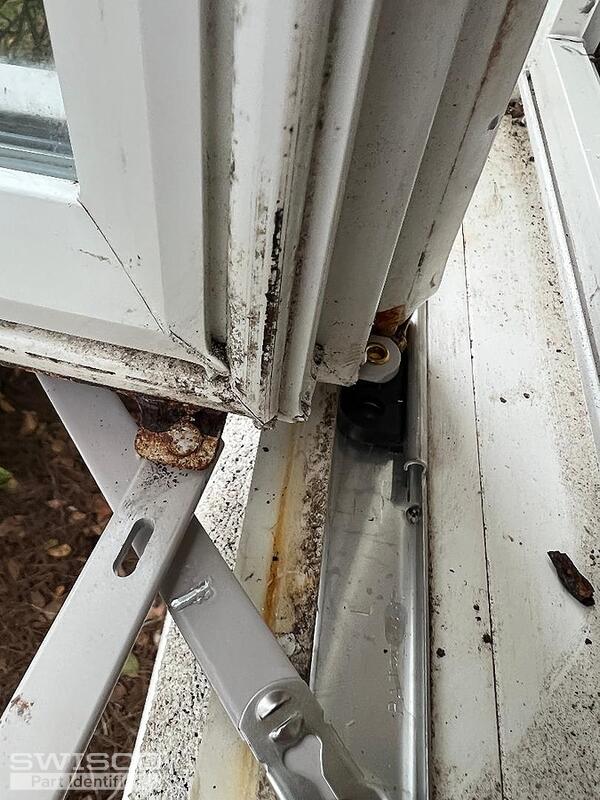

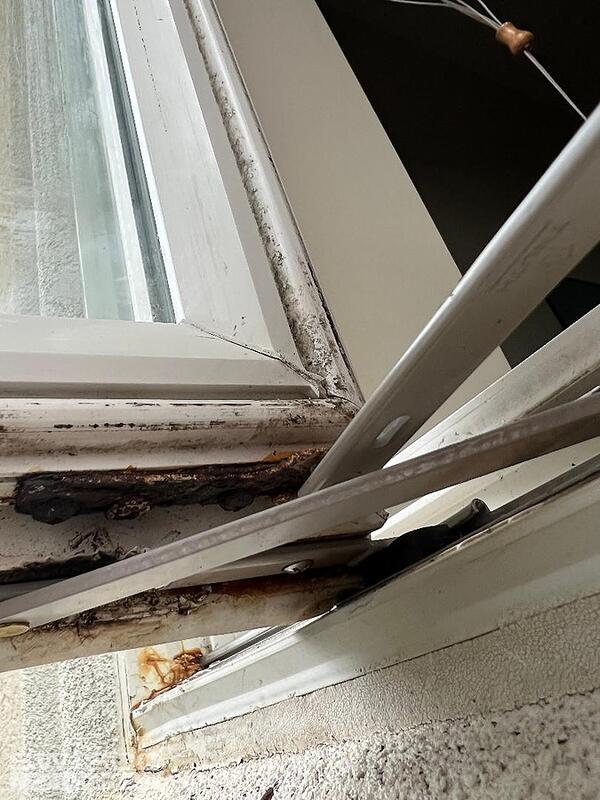

3 user uploaded images

Emily from SWISCO

Oct 18, 2023 3:12 pm

EXPERT

Hi there!

Thank you for reaching out to us. I agree that our 36-048 hinge set is what you want if the specifications align and if you replace the top and bottom at the same time. As for the operator, our 39-316 looks to be a good match.

For the other hardware shown in your photos, see the 39-265 lock bar guide, 38-158 handle plate, 38-286 casement strike, as well as the 38-095 and 38-138 locks. Carefully review the specifications for these parts and see how they compare with yours.

Quick Learner from Calabash NC

Oct 20, 2023 9:39 am

Thank you
Do you offer the services of talking with me to help me be assured that I'm ordering the right things?

Emily from SWISCO

Oct 20, 2023 1:23 pm

EXPERT

I'm afraid our department doesn't have a call center if that's what you're asking. I can only respond right here on this page but I'm happy to answer any questions you may have. I apologize for any inconvenience.
