Casement Window Hardware

A contractor from Newport, NC says:
July 19, 2020
My client has a twin casement window where both the left and right hinges have rusted and broken off the window, both lower and upper sections of the sash. The operators are 39-155/156, the tracks are 39-505, and the stud brackets are 39-509/510 and seem to be fine. The hinge is Entry Gard 40887 from what I can make out of it and obviously it is broken from the window frame. What do you suggest?
Thumbnail of the uploaded file named 20200502_122803.jpg
Thumbnail of the uploaded file named 20200502_123124.jpg
Thumbnail of the uploaded file named Burchfield Hinge.jpg

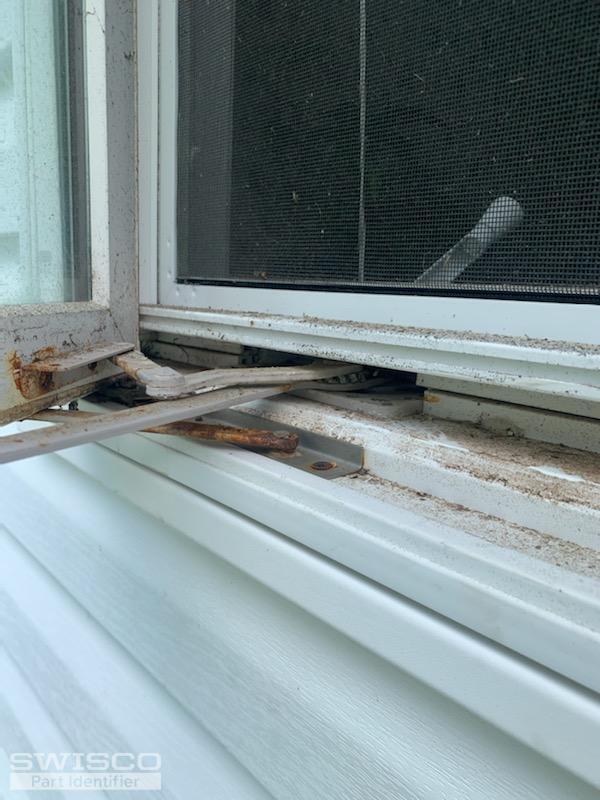

Thumbnail of the uploaded file named Hinge Picture Close-up.jpg

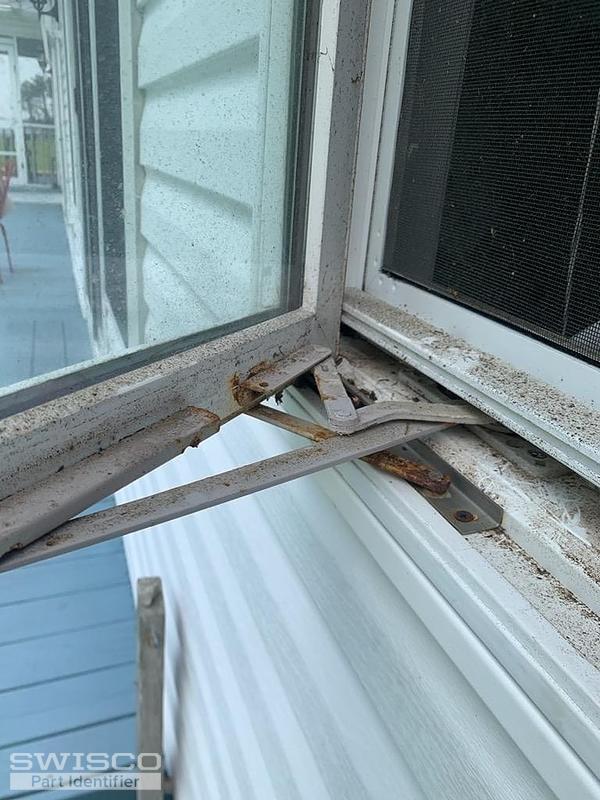

Thumbnail of the uploaded file named Hinge Picture Left.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 22, 2020

Hello! I hinge I suggest is the 36-048. This isn't exactly the same as yours but as long as you replace the top and bottom at the same time then it will work perfectly well. The video below will go into more detail.
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-155
$29.85
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-156
$29.85
11-3/8" EntryGard Track, 4 Hole
11-3/8" EntryGard Track, 4 Hole
39-505
$3.70
Clip-Stud Bracket, Right Hand
Clip-Stud Bracket, Right Hand
39-509
$3.70
Clip-Stud Bracket, Left Hand
Clip-Stud Bracket, Left Hand
39-510
$3.70
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
