Casement Window Hardware

Question

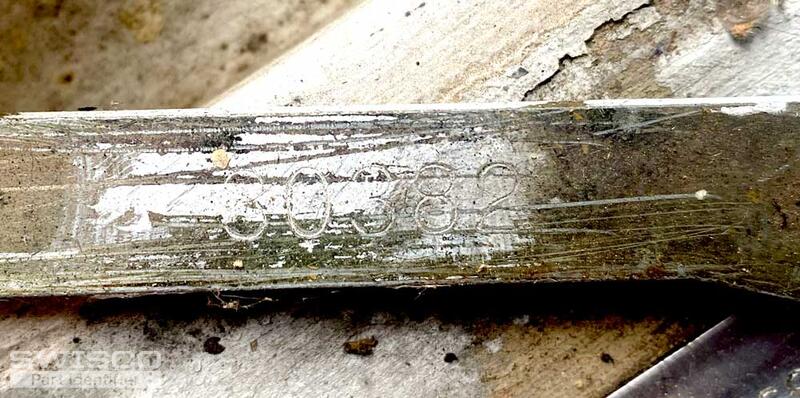

Hi! Hoping to identify the replace for this crank (need both right and left hand versions for two windows). The arm has the number 30382 on it. 358-1R is on the plate installed in the window. Both cranks are stripped and/or have broken teeth so need that crank/handle/arm assembly. Window hinges and installed plate is fine. Thank you!

Lauren · Accepted Answer

Hello, thank you for posting,

Please start by reviewing the style of the 39-027E and 39-028E operators. Compare the dimensions to confirm a good fit! Let us know what you think and if you have any additional questions. Also see the 39-114L for a compatible handle.

Dimensions for 39-028e
