Casement crank
Handy Person from Pawleys island SC
Apr 23, 2024 8:17 am

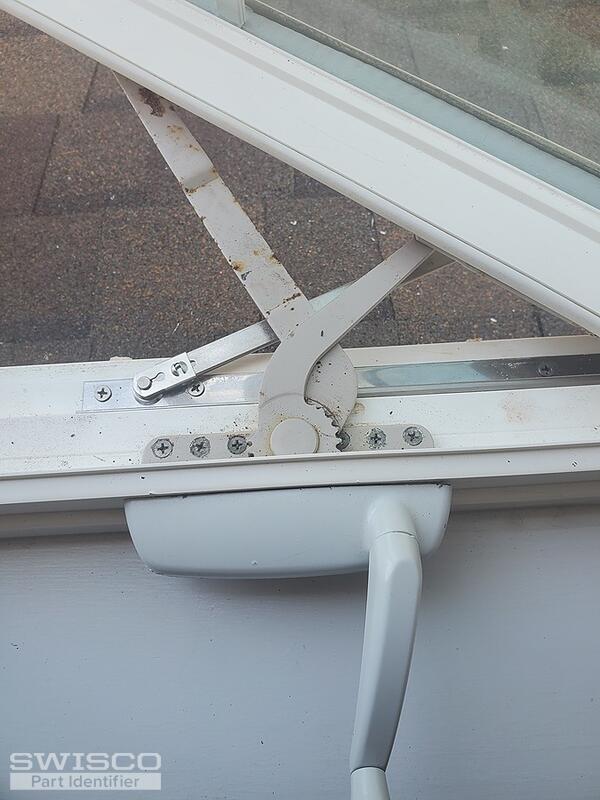

Truth casement crank. I don't know the window brand. It is vinyl over aluminum window
4 user uploaded images
9 Replies
Handy Person from Pawleys island SC
May 15, 2024 2:29 pm
My customer has the 39-253LB.

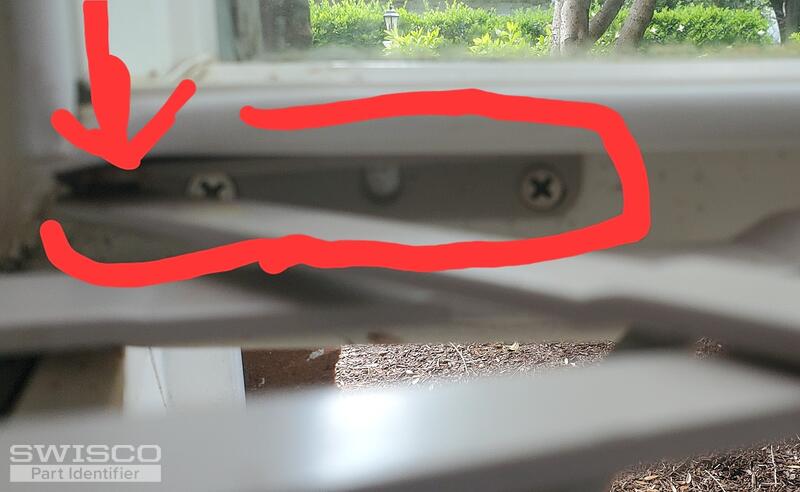

My customers has a triangular metal pice at the end of the arm that attaches to the sash. Is this the piece and how does get replaced?
Their is also a bulb style weatherstripping that fits in a kerf. Do you sell that?
My customers has a triangular metal pice at the end of the arm that attaches to the sash. Is this the piece and how does get replaced?
Their is also a bulb style weatherstripping that fits in a kerf. Do you sell that?
1 user uploaded image
Emily from SWISCO
May 16, 2024 8:04 am
Yes, the 39-545 and 39-546 brackets appear to be what you have. These are just screwed to the sash. I can't be sure of the weatherstripping without seeing a photo of the end profile but the 58-053, 58-055, and 58-114 are bubble seals that install with a kerf.
Profile drawing of the 58-053 bubble seal.
Profile view of 58-055
Profile diagram of the 58-114
Handy Person from Pawleys island SC
May 16, 2024 2:17 pm
Does the old bracket "pop" off and the new snap on?
I'll check the weatherstripping off of what you sent.
I'll check the weatherstripping off of what you sent.
Emily from SWISCO
May 17, 2024 8:42 am
No, the brackets are screwed to the sash. You'll have to remove the screws to swap them out, but those screws can be reused.
Handy Person from Pawleys island SC
May 22, 2024 4:43 pm
Yes the bracket is screwed to the window but how does bracket to the crank arm come off? Just pop off when pulled?
Emily from SWISCO
May 23, 2024 9:38 am
That is correct! It should indeed just pop off.
Handy Person from Pawleys island SC
May 23, 2024 12:09 pm
Thank you
