Casement crank window bottom truth operator crank and top slider and track needed

Question

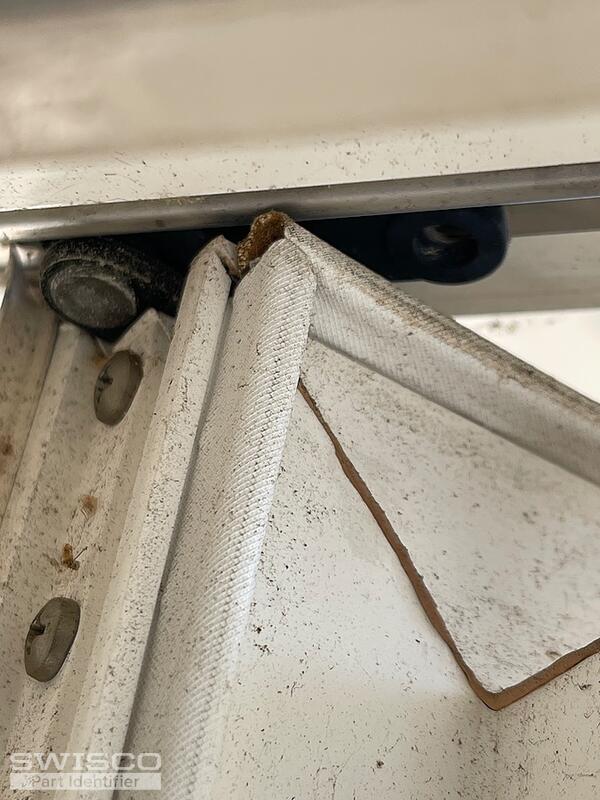

Good day, I have a bay window with a casement windows on either side, the right hand windows casement crank operator is a truth 40372 and is no longer operational, would like to know what part number I need, also this same window has a 10" track on the top of the window frame that holds the casement window in place and allows it to pivot, the black slider that rides in the track is broken so the top of the window is no longer securely attached. The track is a 10" long track with three screw holes and a black slider that appears to be about 2" long, I also need this part. I have attached photos of both parts for review...

Thank you

Herb

Lauren · Accepted Answer

Hi Herb, thank you for posting,

For the operator, please start by reviewing the style and dimensions of the 39-031 and 39-032 or the 39-155 and 39-156 operators. The main difference between the two styles is the length of the short link arm.

Also see the 39-107 cover and 39-114L handle if needed.

For the hinge slider, unfortunately this part is not available separately and the full hinge assembly would need to be replaced.

Please start by reviewing the style and dimensions of the 36-048 2-bar hinge set that has a 10" sill track. Compare to your original and let us know if you have any questions!
