Casement handle

Home Owner from Vermont

Aug 4, 2024 9:49 am

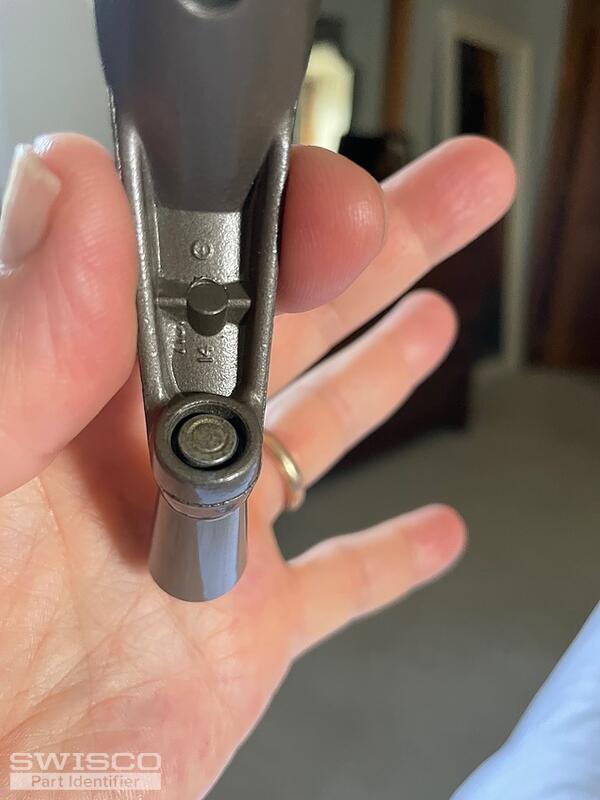

Trying to replace an old casement handle that has stripped grooves inside. I measured and thought that 3/8" bore was correct and I purchased item 39-104. Unfortunately the bore seems slightly large for the male portion on the window. I am enclosing pictures of the old handle. Unfortunately I can't find. Brand identification except for the stamped markings as shown in the photos. Thanks

4 user uploaded images

4 Replies

+ Add a Comment

Home Owner from Vermont

Aug 5, 2024 10:11 pm

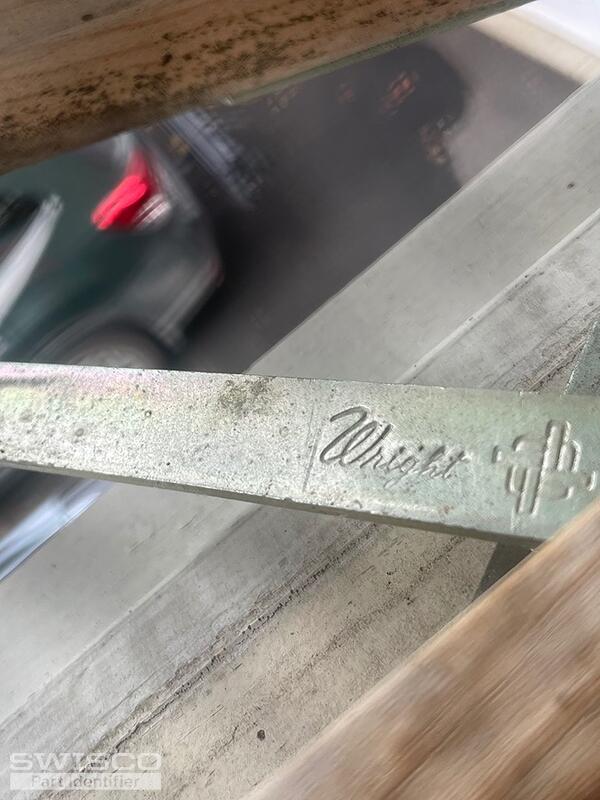

I have located a brand name imprinted on the crank mechanism. Likely the same brand as the handle that I'm trying to replace. Says "Wright". See photo attached

1 user uploaded images

Emily from SWISCO

Aug 6, 2024 1:11 pm

EXPERT

Hey there!

Thanks for reaching out to us. Based on the "Wright" logo, I wonder if you could have an operator like the 39-387 and 39-388. This operator has an 11/32" spline for handles like the 39-114L and 39-205. Take a look at the specifications and see if these are better matches for your old handle.

Alternate view of the gear hole

Alternate image for 39-205

Home Owner from Vermont

Aug 6, 2024 1:49 pm

Thanks for the reply. I think 39-114L could probably work. In the meantime my wife reminded me that we have several of those same windows that we never open so I swapped the handles and it's working fine. If any future issues I'll order the 39-114L and give it a try. Thanks again for the help!

Emily from SWISCO

Aug 6, 2024 2:10 pm

EXPERT

Great! I'm glad you could find a solution in the meantime. You know where to find us if you need anything else!
