Product Code: 39-387

Split-Arm Operator, Wright

Name: Split-Arm Operator, Wright
SKU: 39-387
Price: 35.95 USD
Availability: InStock

$35.95

Quantity	Price
1-9	$35.95/ea
10-24	$34.70/ea
25-49	$33.48/ea
50+	$32.35/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

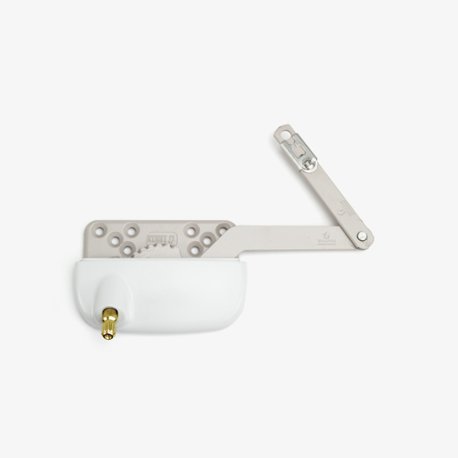

This is a genuine Truth Hardware sill mount, split arm casement window operator. Designed to replace an original Wright brand operator.

See SWISCO product 39-388 for the opposite handed version.
Link arm has a detach clip.
11/32" spline; handle sold separately.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.
Only available in the color white.

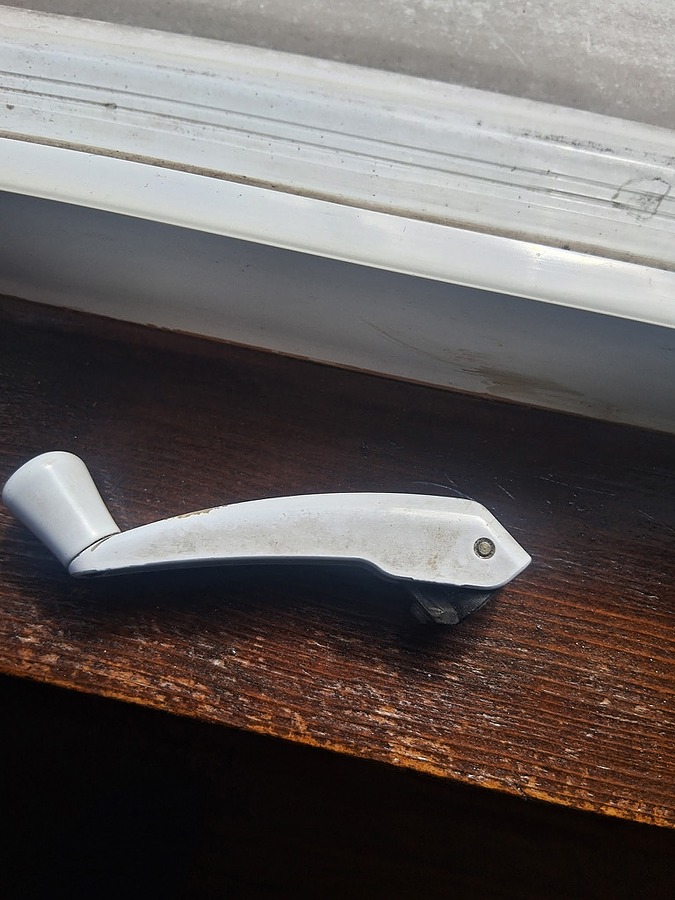

Silverline casement window (1999) crank

Looking for new crank mechanism for this (1999 manufactured) casement window.

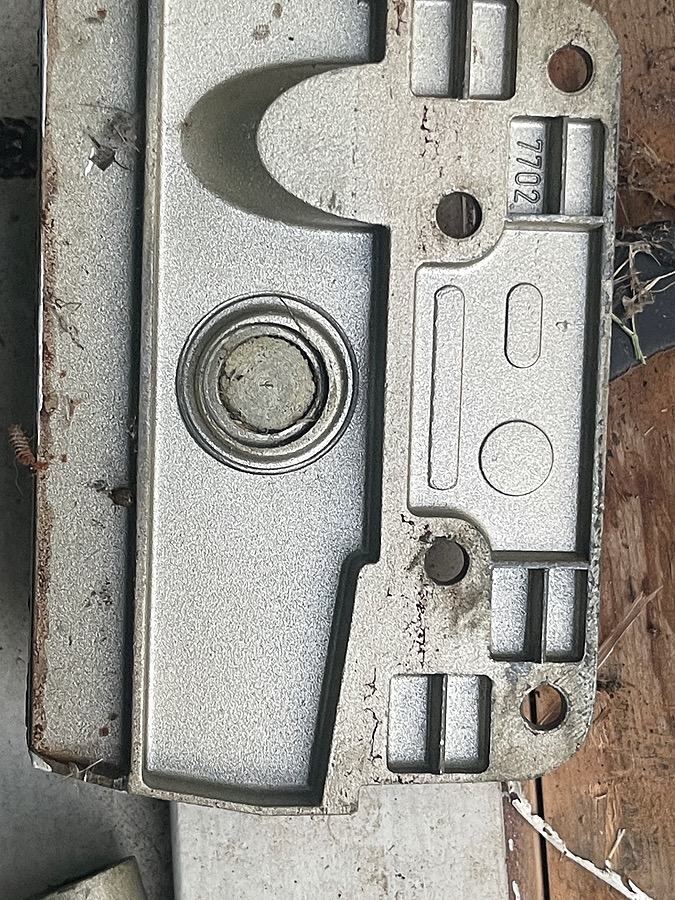

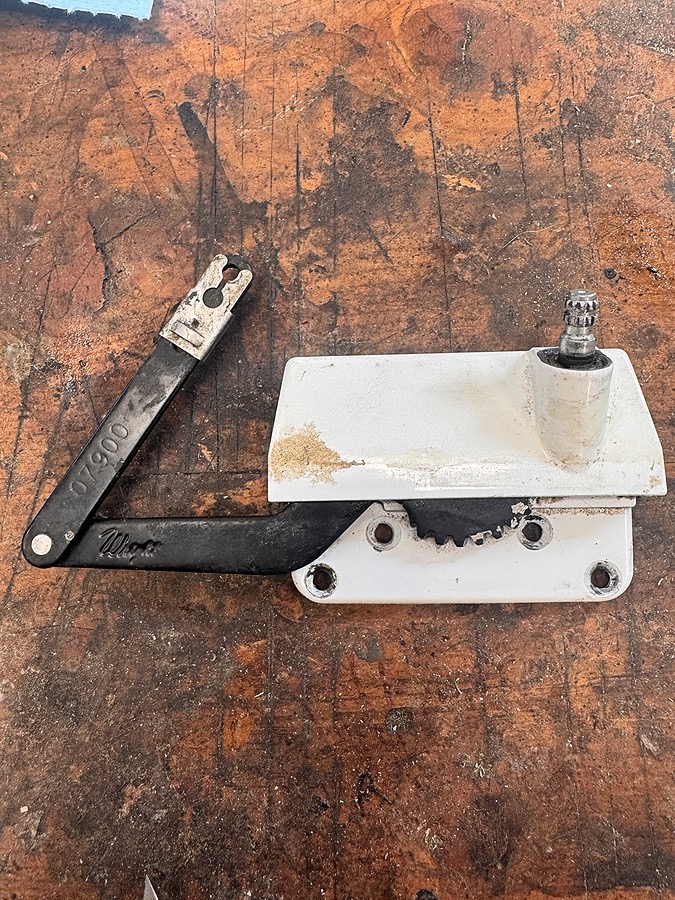

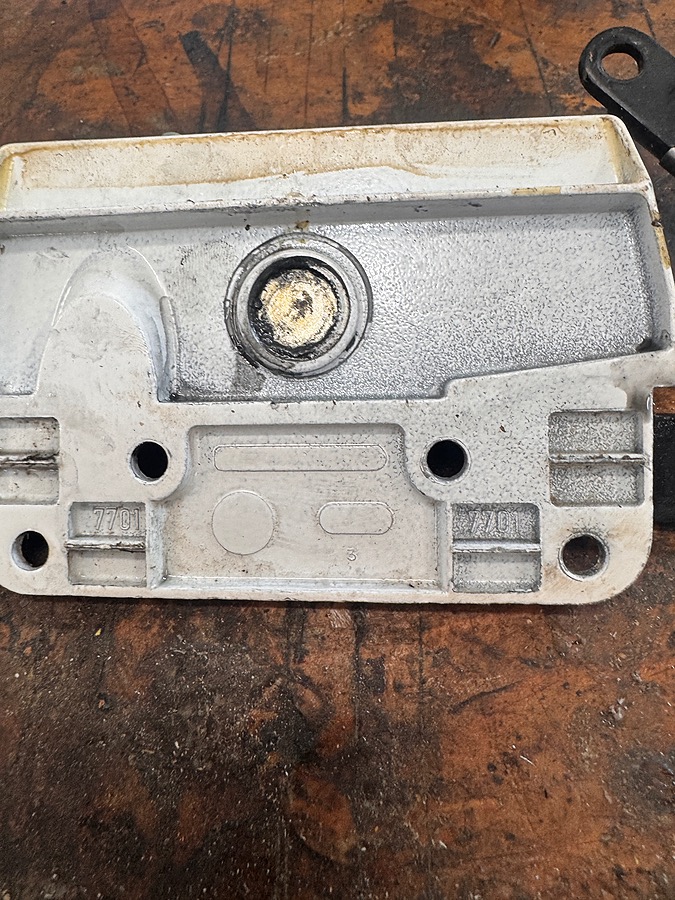

Operator assembly Wright 07900 on arm & 7707 on casting Both in white

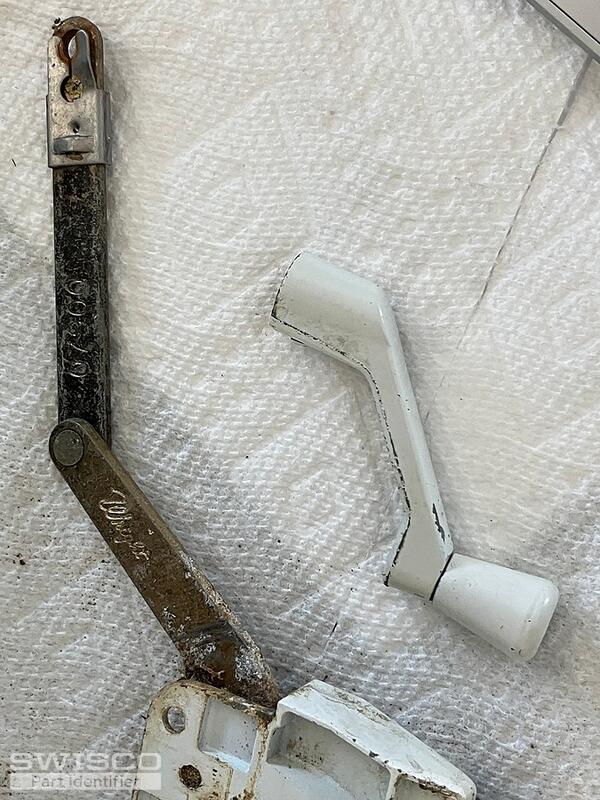

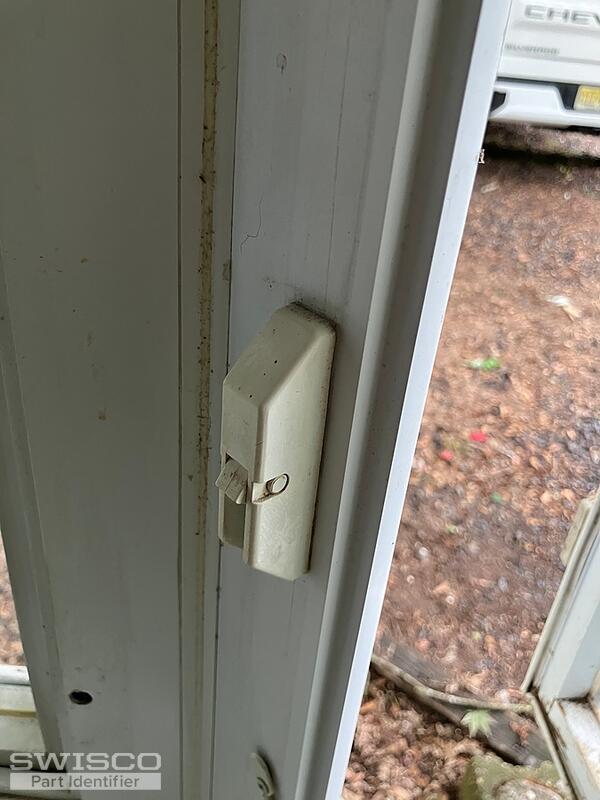

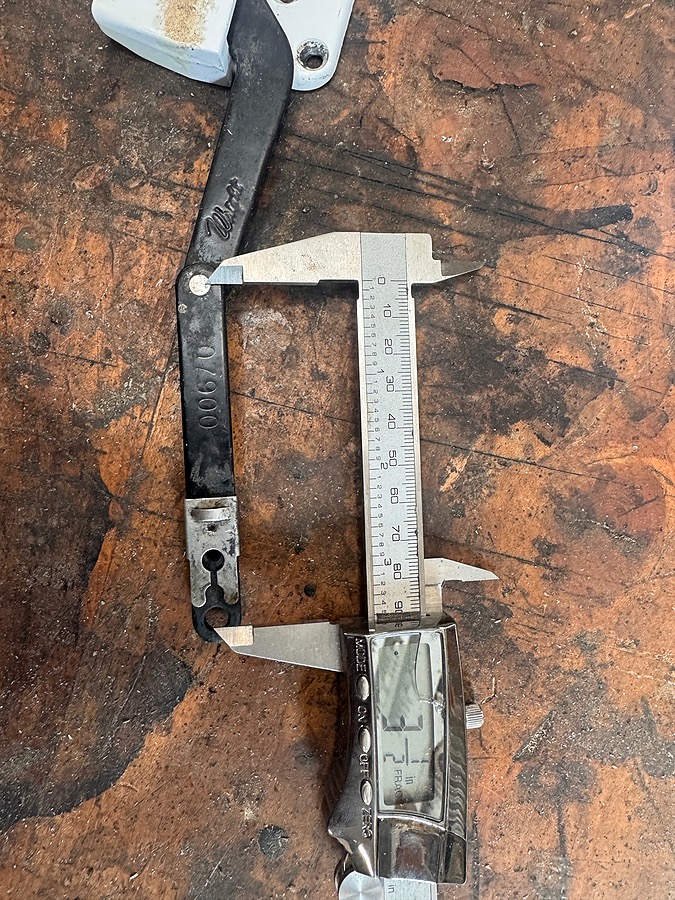

Hi, I'm in need of replacement parts for a Bay Window. Operator: Wright #7707 & arm 07900 4" pivot pin to clip. Also need the locking mechanism for the pair of windows on each side of center glass. Pictured in one set of photos. Latching assembly seems fine, both sides of pivot point appear bro ... (cont.)

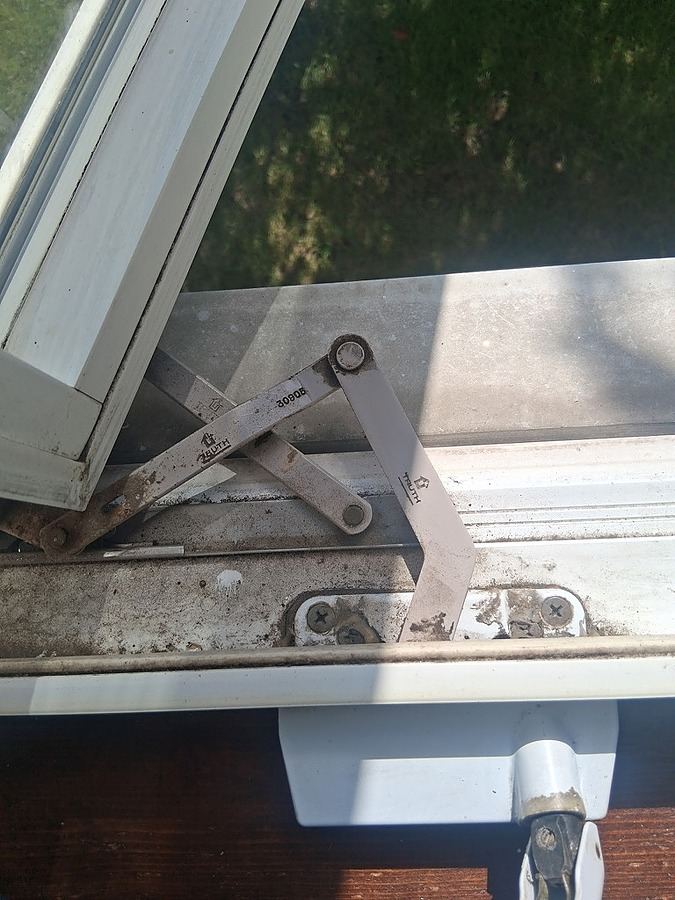

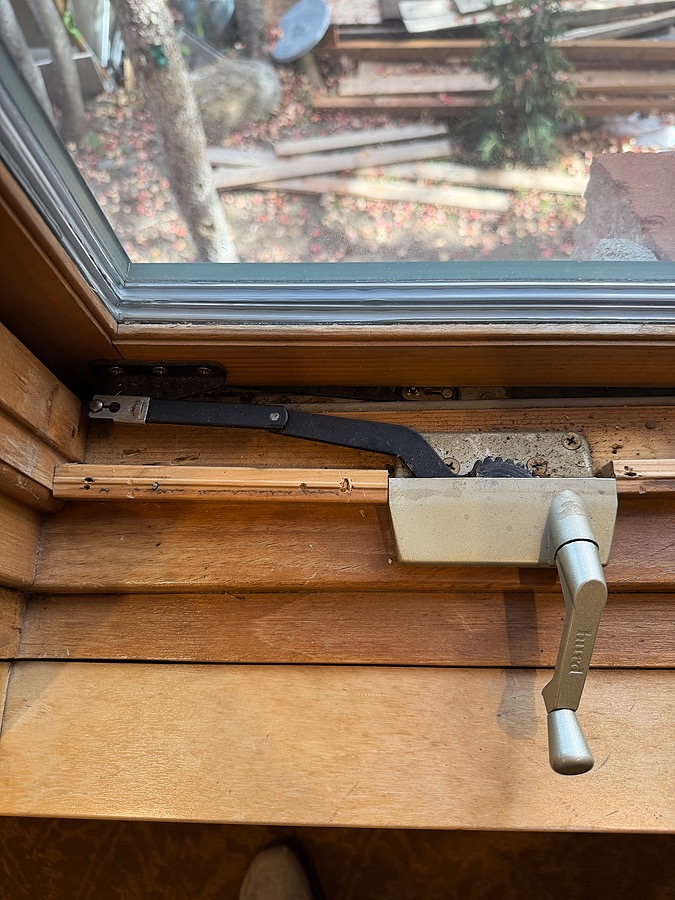

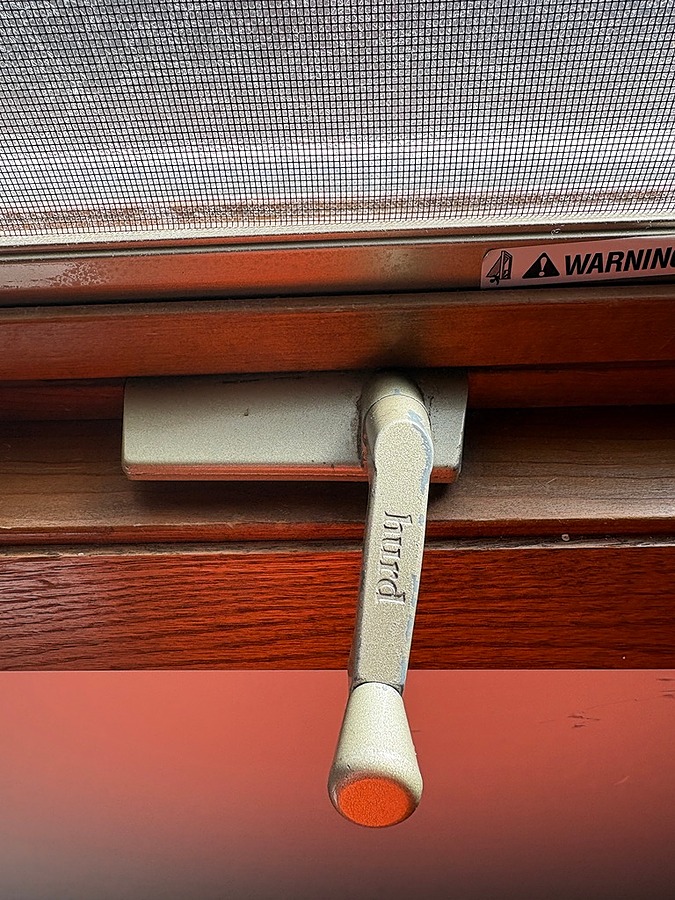

Window crane operator

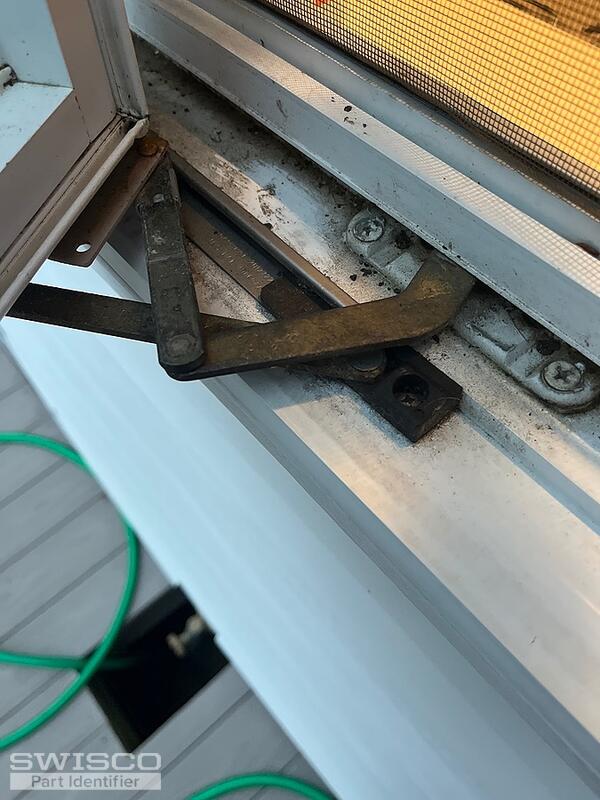

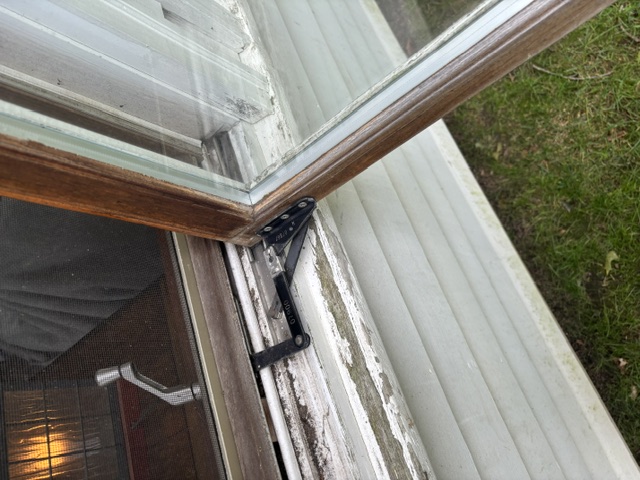

this is a herd 07900 operator that has been replaced with truth. Part number 55082. I'm standing at the window looking out, the crank is on the right window on the right hand side.

Replacement parts

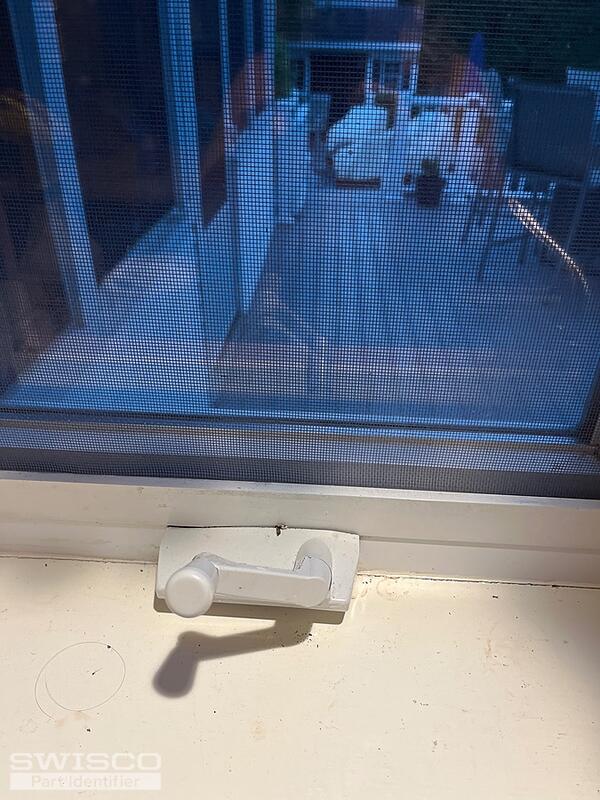

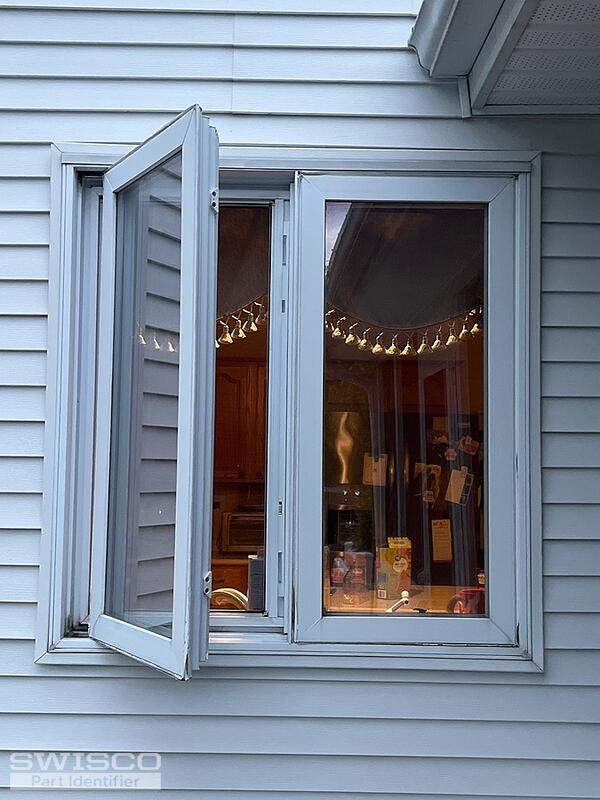

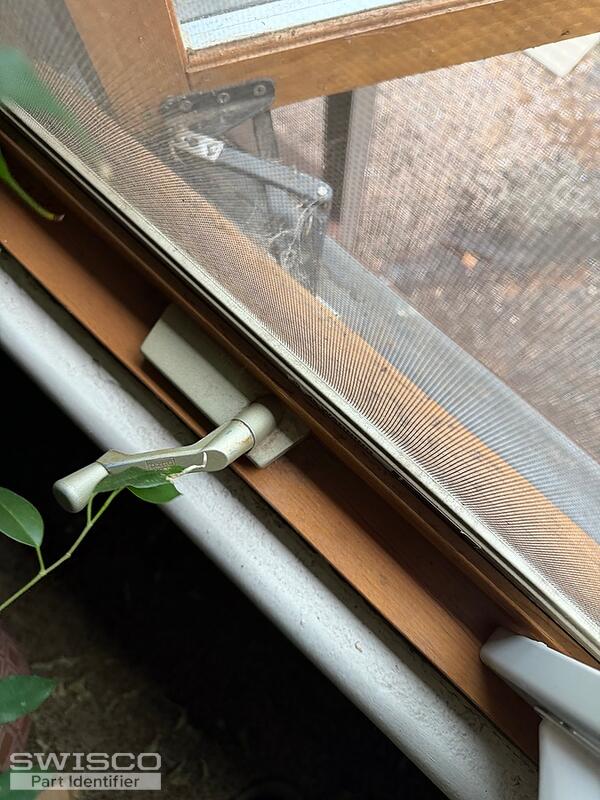

Looking to replace the crank on the window — standing inside the kitchen looking out, it is the window on the left-hand side. I also need five replacement sash locks for the left and right windows. I’m not sure which are left-hand and right-hand versions. For reference, the existing hardware a ... (cont.)

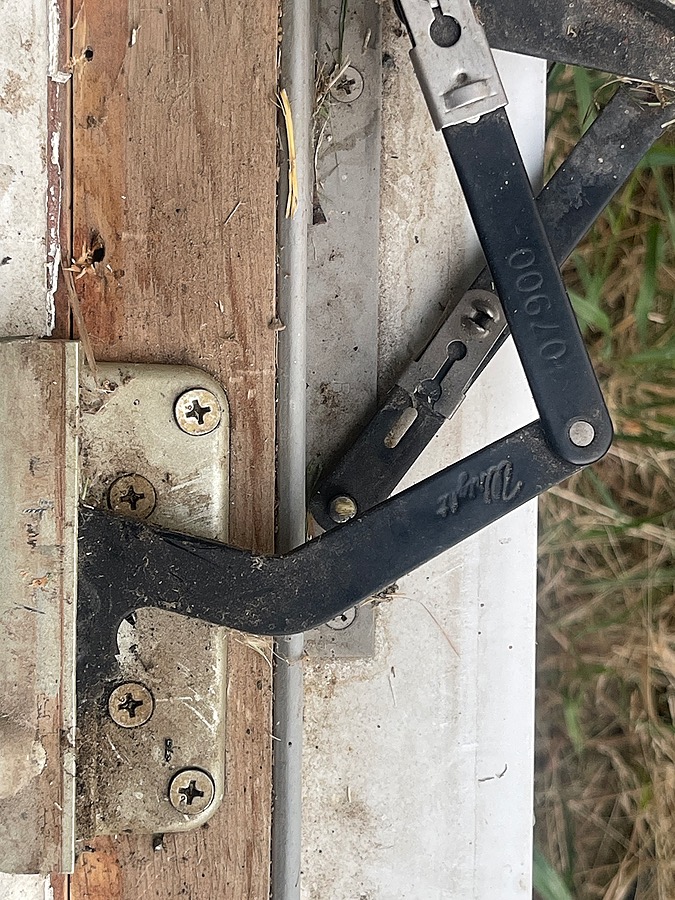

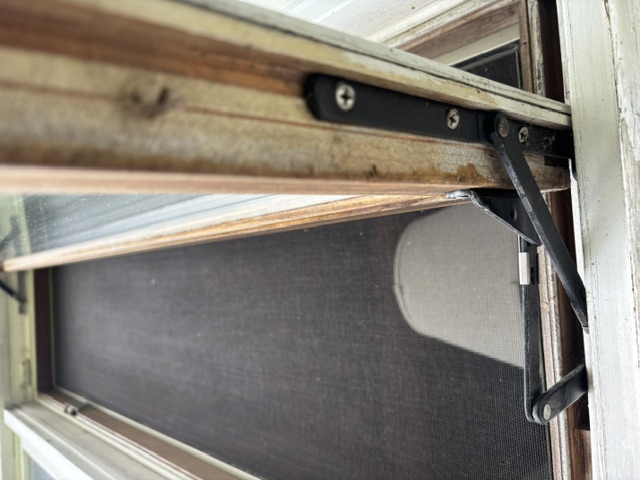

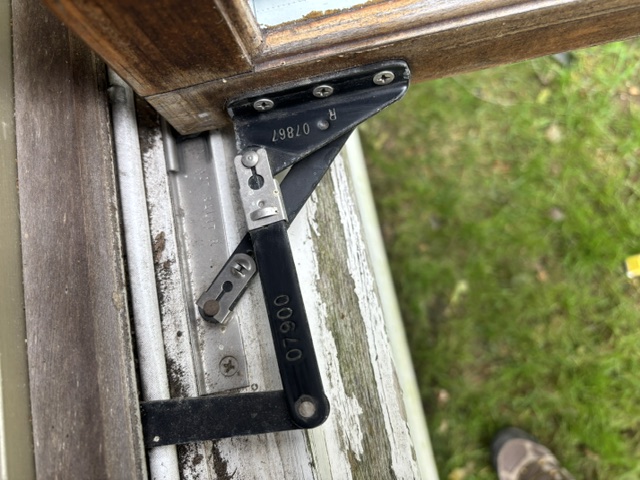

Wright casement window operator 07900

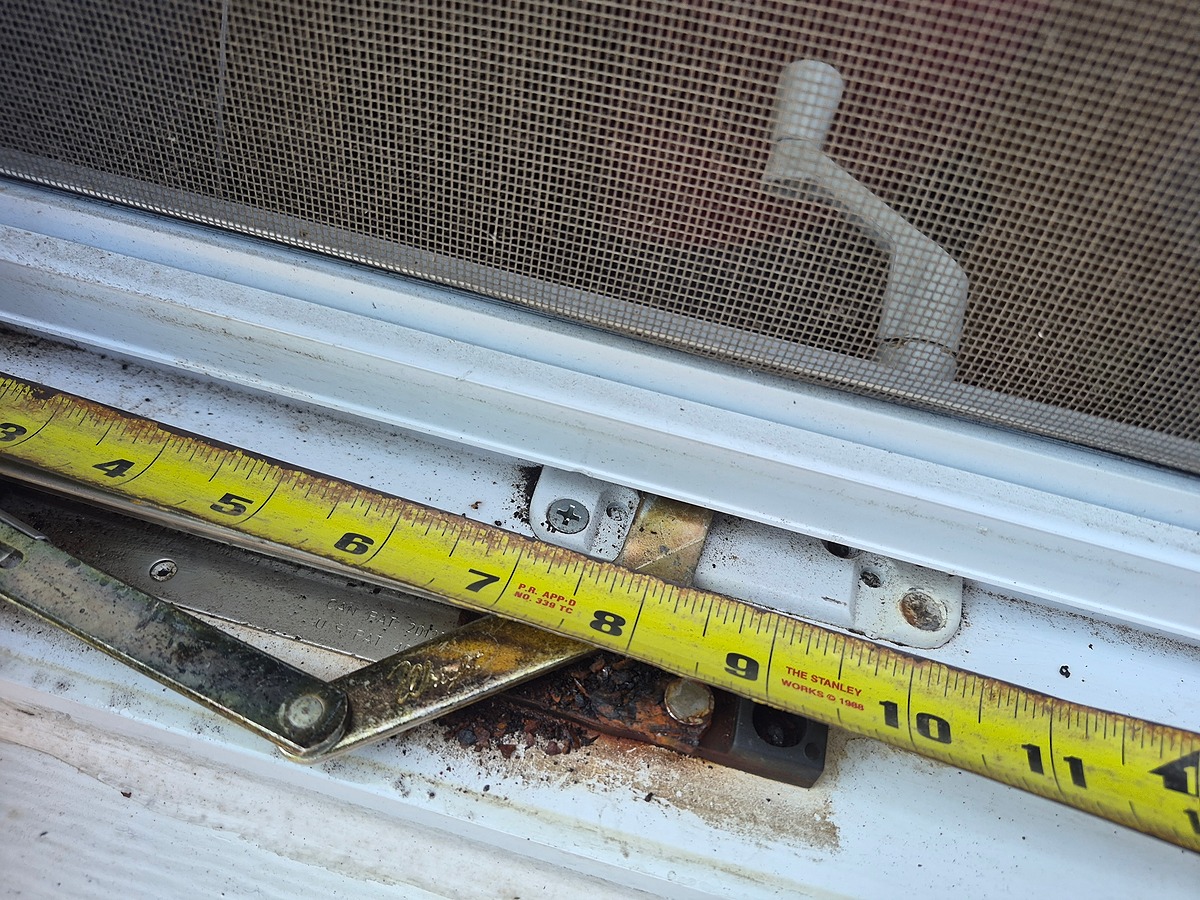

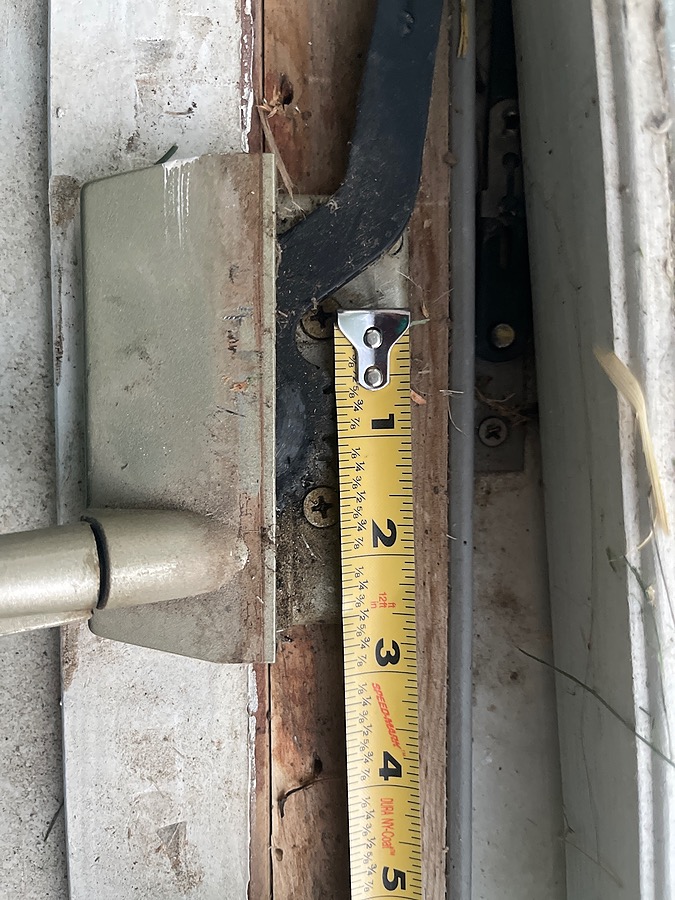

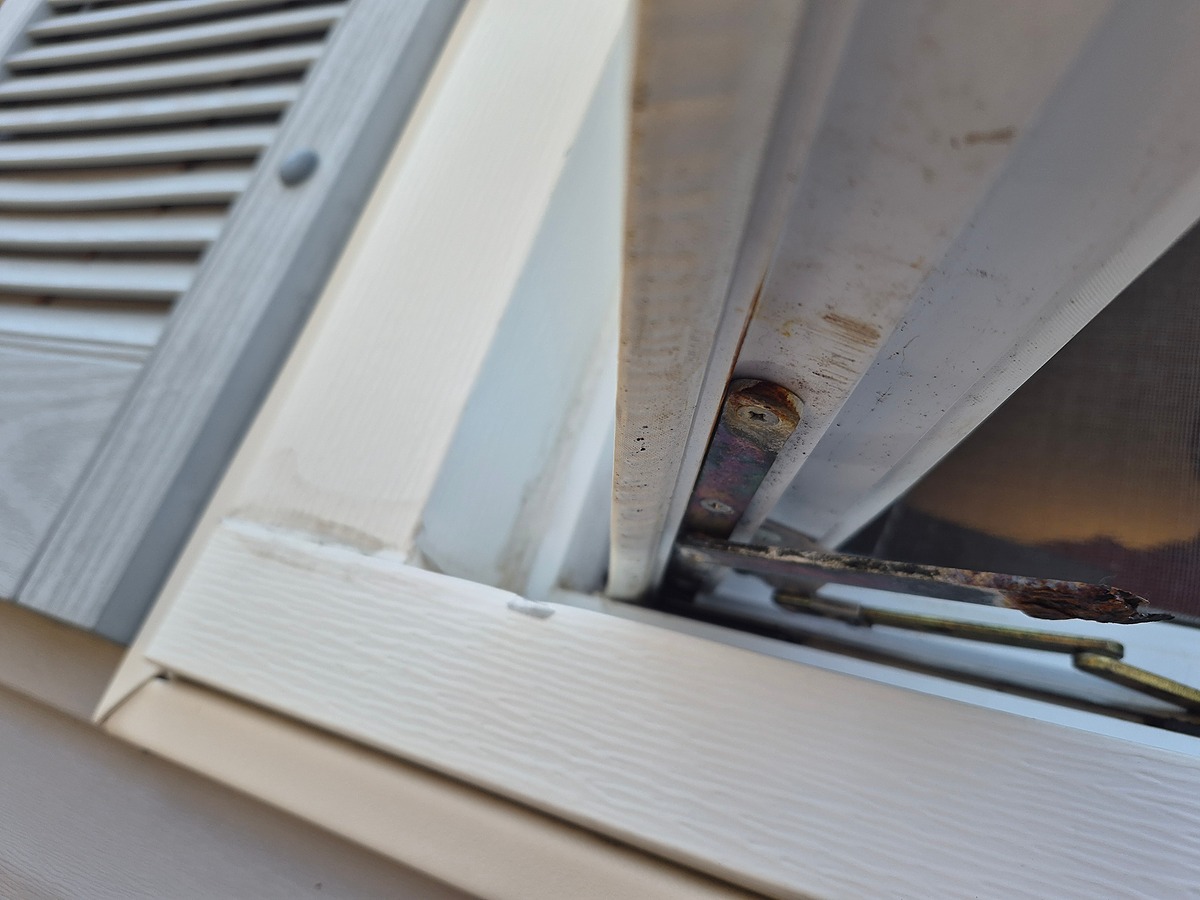

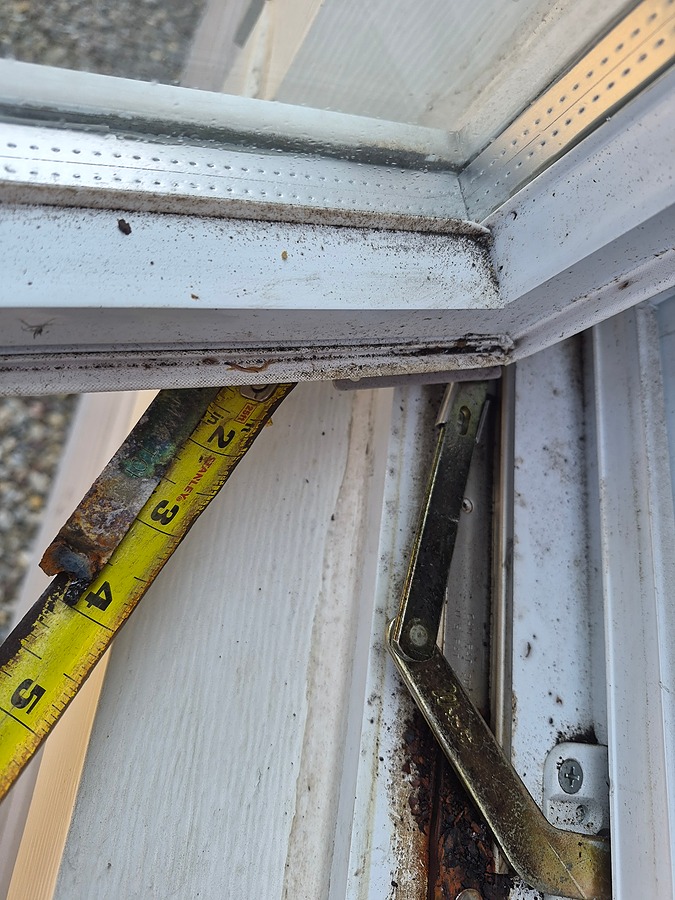

Can you please help me find the above pictured window operator/crank. As you can see (picture #3) it is mounted under a threshold in the window frame. Picture #4 is taken from the outside of the window. The front inside measurement is 3 3/4 inches the back which is under the threshold is 4 inches ... (cont.)
