Casement left side operator arm and crank : SWISCO.com

Home Owner from Somerville MA 02143

Apr 24, 2025 7:08 am

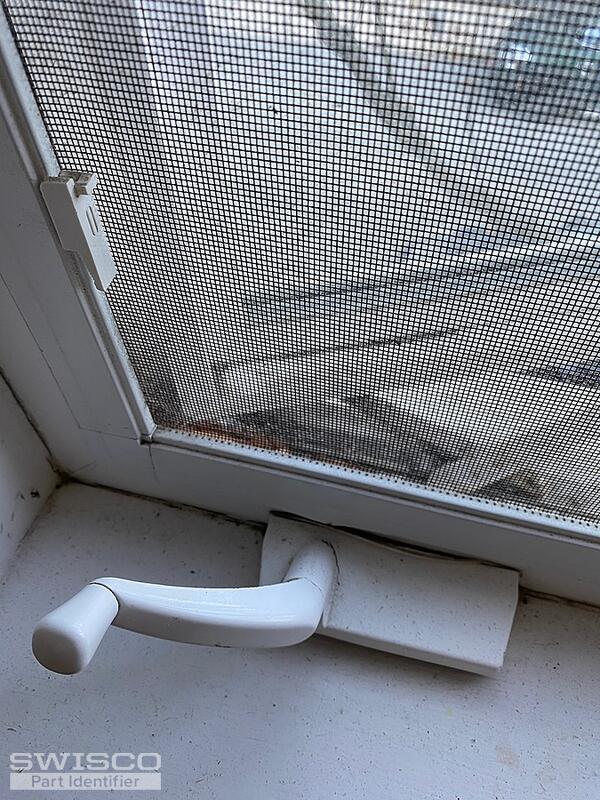

Hi! There are no markings that I can find. The threads under the crank handle are stripped so when we try to crank to close the window we cannot get it fully closed.

2 user uploaded images

5 Replies

Home Owner from Somerville MA 02143

Apr 24, 2025 9:42 am

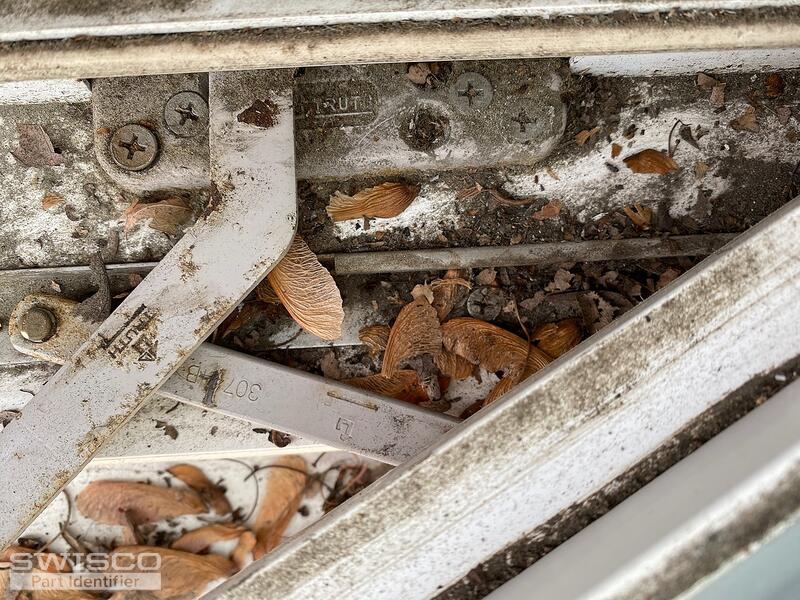

I found some info. The operator is made by Truth and labeled 30744B.
i need the whole thing-the crank handle, stud bracket, operator, hinge. I think it's an Ellipse series dyad?

Emily from SWISCO

Apr 28, 2025 1:17 pm

Hi there!

Thanks for reaching out to us. We're happy to look into this. However, this kind of operator doesn't typically use a stud bracket. Can you show us a clearer shot of the operator's arm? We'd also like to see a photo of the hinge assembly.

Home Owner from Somerville MA 02143

Apr 28, 2025 7:51 pm

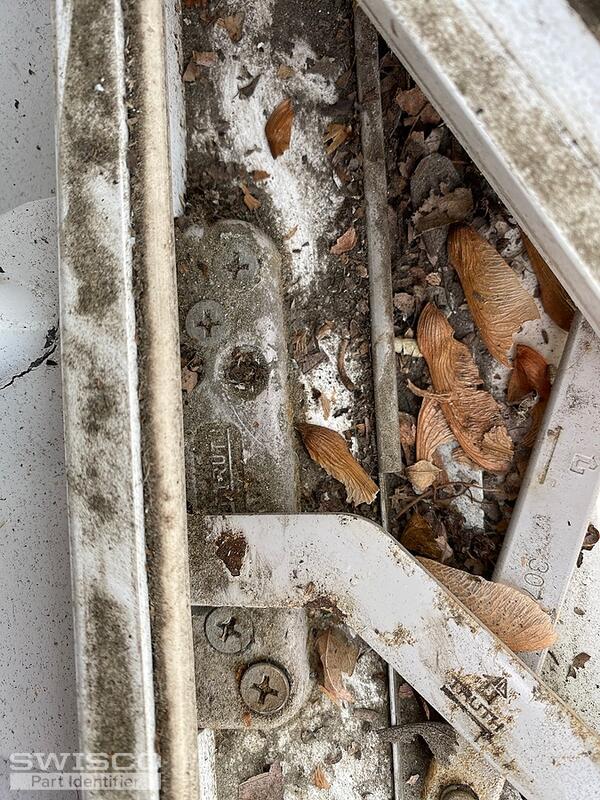

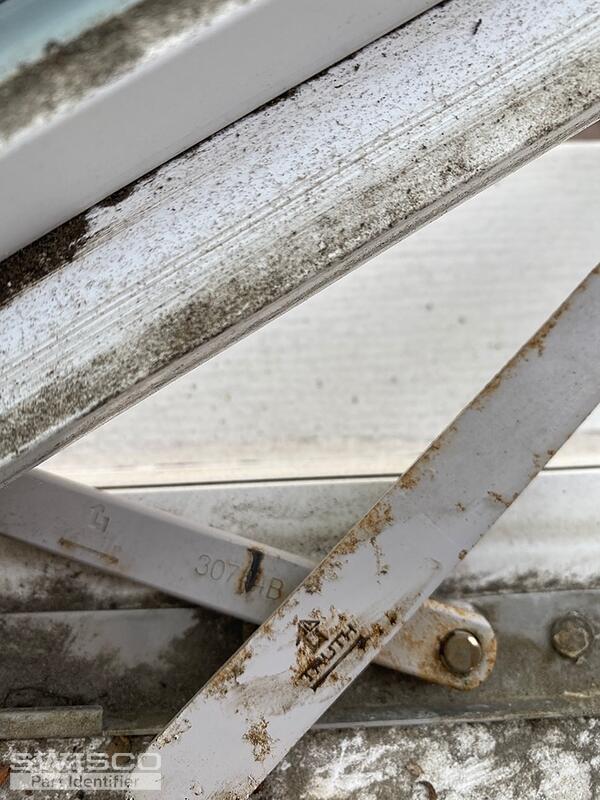

More pics added! Thanks

5 user uploaded images

Emily from SWISCO

Apr 29, 2025 8:37 am

Thank you kindly! Start by taking a look at the 39-014, 39-366, and 39-028E. We recommend you remove the operator's arm from the track to determine whether it has a nylon or a metal roller. Review the specifications and see what you think.

If you note any discrepancies, please let us know!

Dimensions for 39-014

Alternate image for 39-366

Dimensions for 39-028e
