Casement operator

Home Owner from Glendale, NY

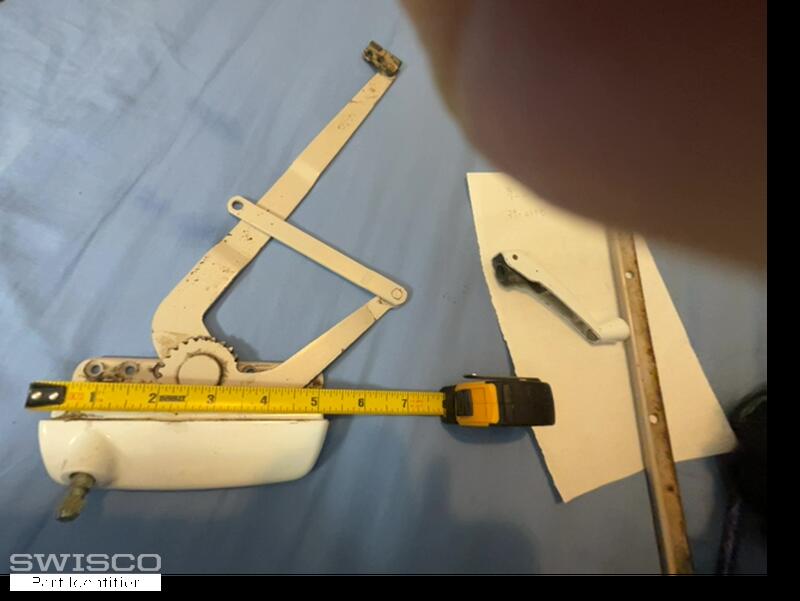

This is made in USA from Truth company, the operator is broken , when I open the window it can not close fully, my contractor tell me I have to replace the operator but I am not sure which is the ight one I should purchase, can u please help me out, I also need a right handle which I can not find from the website. Thanks
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Were you able to get the window closed manually once the operator was removed? If so, your contractor is correct. That said, if the window still cannot be closed the issue may lie with the window hinge; it may either need to be adjusted or replaced altogether.

The window operator you have can be replaced with the 39-439B Encore Dual Arm Operator which is used along with either the 39-376 folding or 39-452 non-folding cover and handle kits (sold separately). To confirm that this is the right replacement, be sure to double check the dimensions.

I've tagged the opposite handed version of each of these parts below. The compatible track is the 39-566 SS 14-1/2" Track.

Dimensions for 39-439B
Dimensions for 39-439B

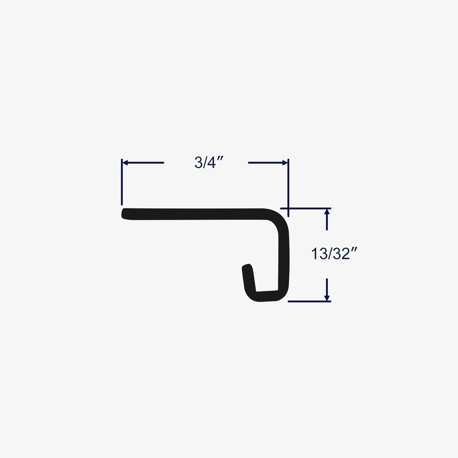

Alternate image for 39-566
Alternate image for 39-566
