Casement operator replacement mystery matching

Home Owner from Michigan

May 5, 2021 10:01 pm

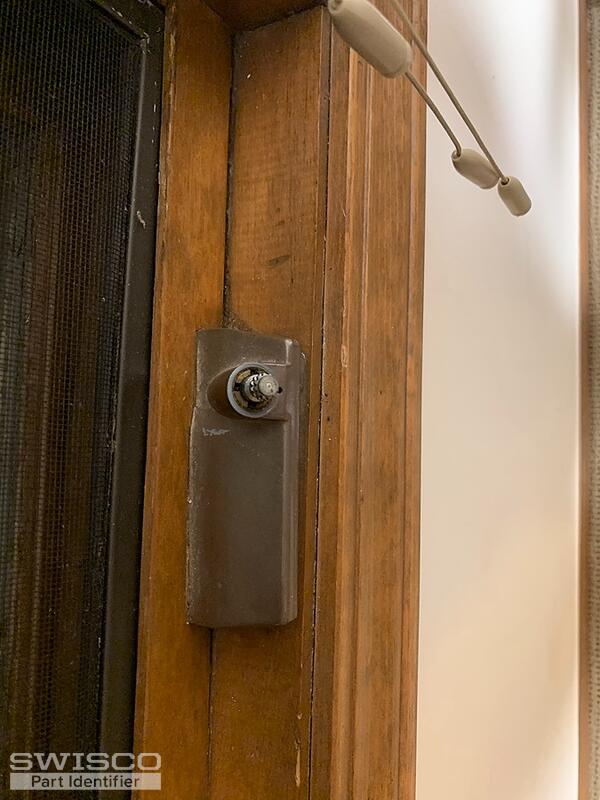

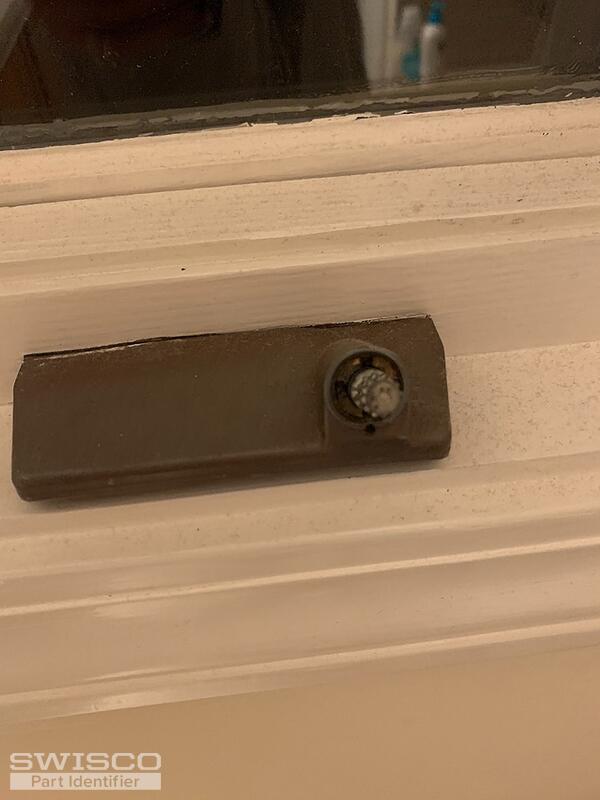

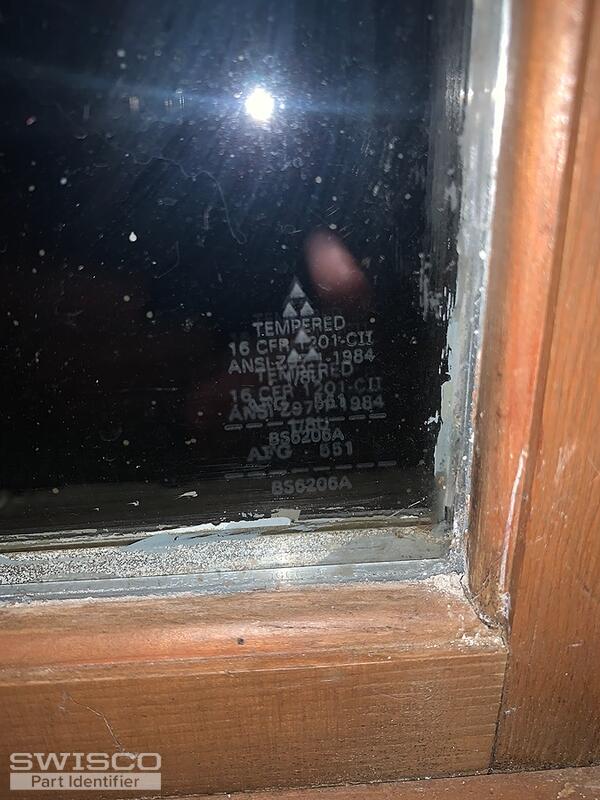

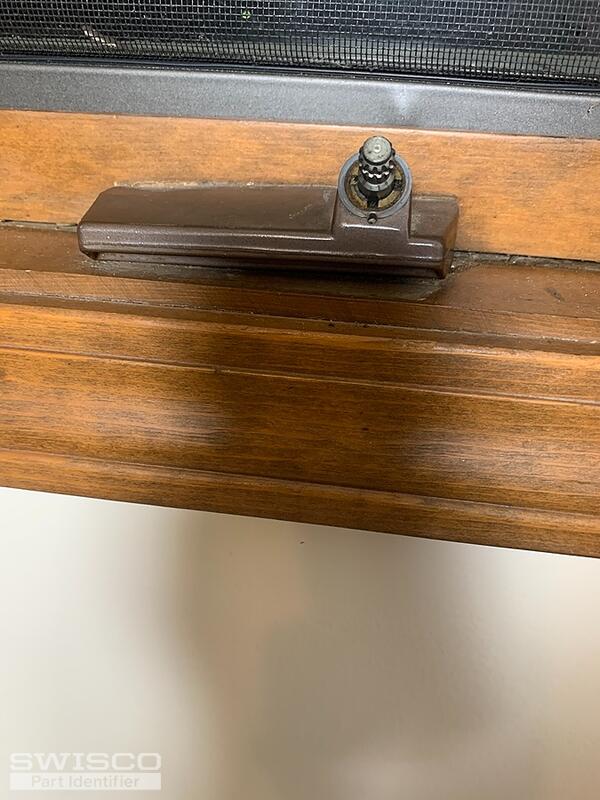

Metal operator casing but just looking for any that will work, Unfortunately no markings anywhere visible on windows or parts - except on one corner of one larger window (not one with broken operators). Windows were painted shut on outside and operators broke when tried to open them. All left hand. Have a handyman to help with replacement but hunting parts now. Windows are older and original, house built in 1988. Any help would be so appreciated as we try to get these windows opening before listing our house to sell! Thanks.

4 user uploaded images

7 Replies

Home Owner from Michigan

May 6, 2021 12:43 pm

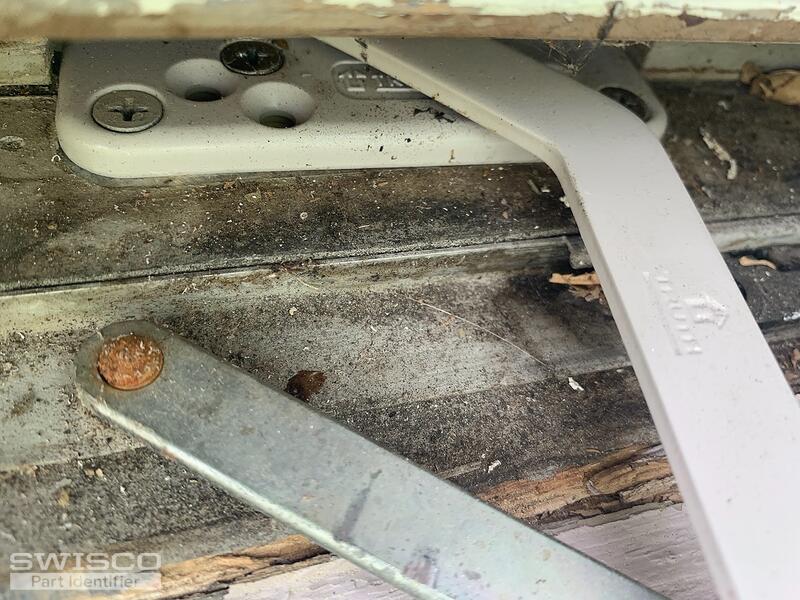

Sorry, just read your blog post and have a few more clues. Most importantly I believe these are all Truth operators- I was able to open another window in my house (which is not the same size as the windows with broken operators) here is a top/down picture - this is not one of the ones I need to replace.

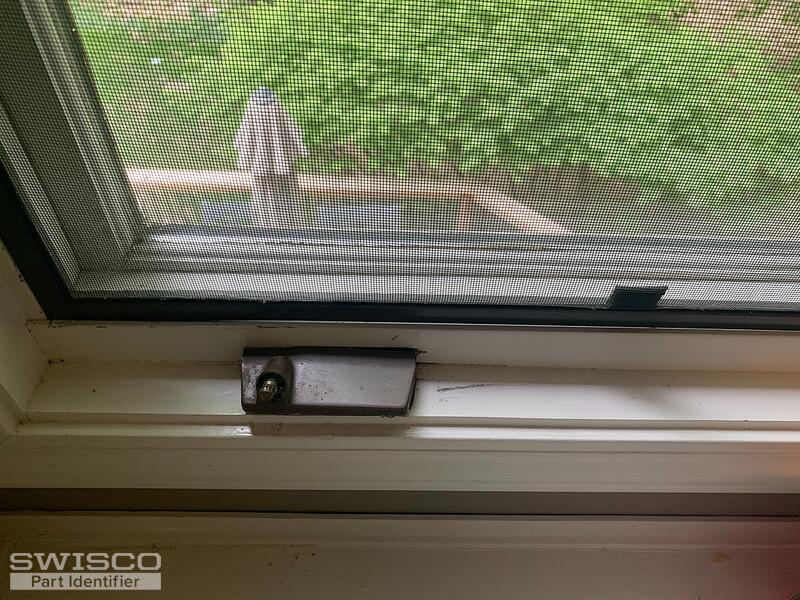

I've also added a picture of the third broken operator, which is RH.

Overall have two broken LH operators and one broken right hand operators.

2 user uploaded images

Tom from SWISCO

May 10, 2021 11:11 am

We can definitely supply this operator, I'm just not sure exactly which one you have. Two possibilities are the 39-014, with a 13-1/2" long arm, and the 39-028E, with a 9-1/2" long arm. Look both of these parts over and see if either of them will work for you.

Home Owner from Michigan

May 10, 2021 3:15 pm

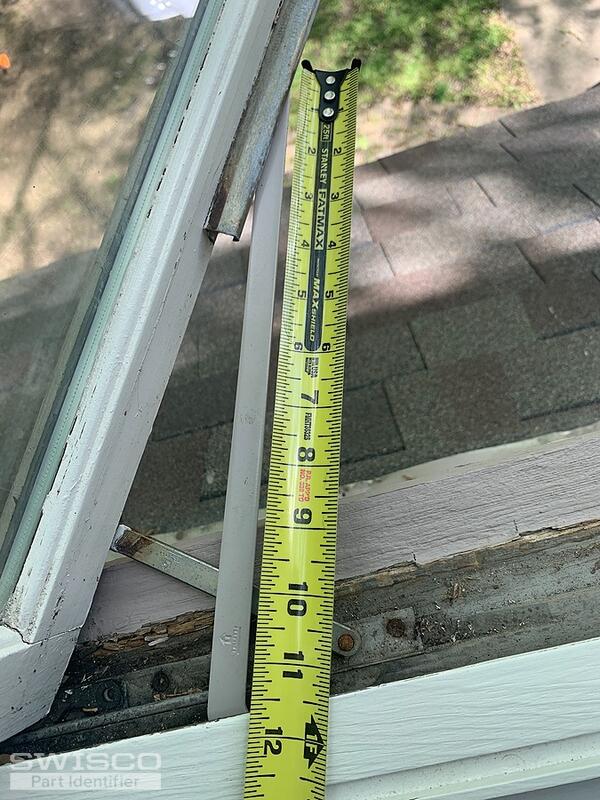

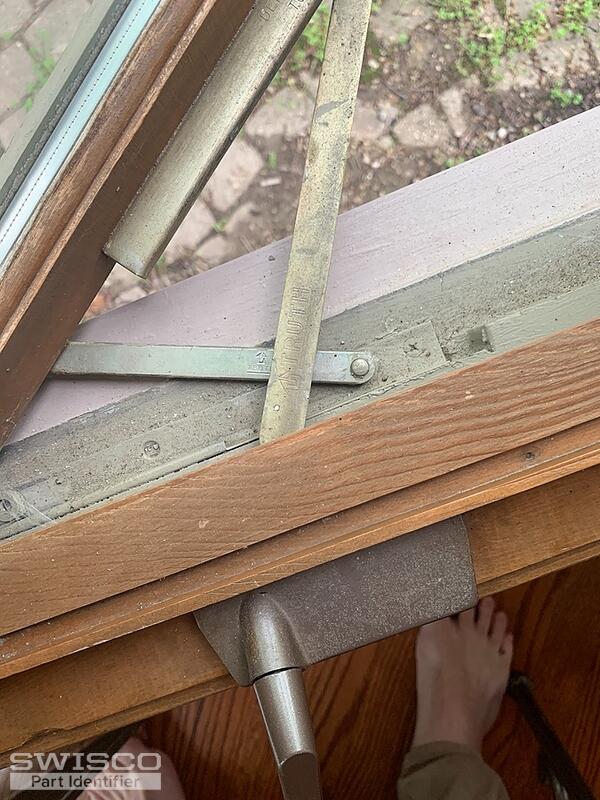

Hi, thanks! I just realized we have another window that opens and is same size as the ones broken. Here are 2 pictures. Not sure exactly where to measure from but it definitely looks longer than 9.5 but not as long as 13.5. I can't put tape all the way back but seems more to be 11-12 if all the way back. Thoughts?

2 user uploaded images

Tom from SWISCO

May 11, 2021 11:04 am

I think that may actually be 13-1/2", but it's a bit hard to tell. What you want to do is measure from the center of the wheel at the end of the arm to the center of the gear, by the base. To do that you'll want to at least disconnect the operator arm from the track on the sash, but ideally you'll just take the whole thing out. That way you don't have to guess. The diagram below should clarify exactly how you want to measure.

Additional information for 39-014

Home Owner from Michigan

May 11, 2021 5:35 pm

Thanks! I didn't take it out but measured from an almost closed position and think you're right, 13.5 is likely it! I'll place the order. You all are awesome!

Tom from SWISCO

May 12, 2021 8:16 am

That's kind of you to say! Thank you very much for your order. If you need anything else, please feel free to ask.
