Casement window

Question

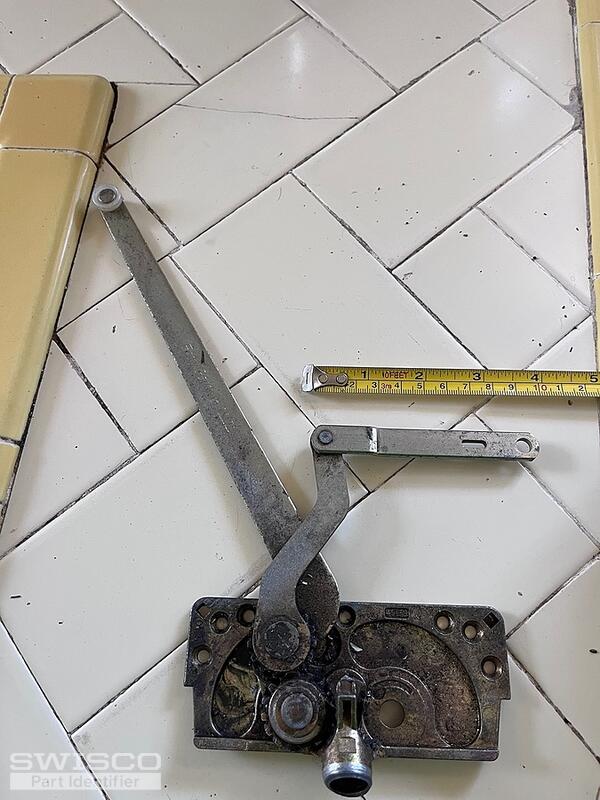

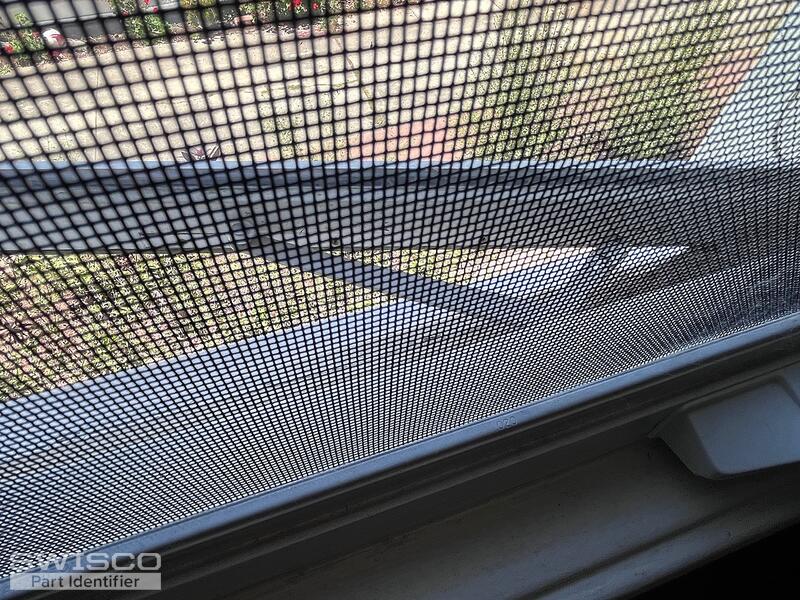

Need a new casement window mechanism along with the missing railing that should be attached to the window.  Can you suggest the correct parts needed, if available through you?  Thank you.

Emily · Accepted Answer

Thank you very much for bearing with us during this busy summer.

Take a look at the 39-155 and 39-156 operators. These have a 3-13/16" link arm. Review the specifications below to confirm whether they match your repair needs.

Dimensions for 39-155

Dimensions for 39-156

The 39-505 track is compatible with these operators. Review the specifications and see how they compare with the space available on the sash.

Alternate view of 39-505

Profile view of 39-505

If the stud bracket is missing, we will need to see photos of an intact version. If there's any identical windows, we can use that as a reference.
