Casement window crank

Start a new Discussion

Home Owner from Watseka, IL

Nov 24, 2024 10:36 am

Trying to find a replacement fold in crank for my windows that would not stick out like mine currently do.

4 user uploaded images

4 Replies

Bob from SWISCO

Nov 24, 2024 3:40 pm

Thanks for posting. This casement operator looks like our 39-089. A folding handle like the 39-205, as well as the 39-102 T Handle, should fit this mechanism. Take a look and see if you think either option could work for you.

Home Owner from Haslett, MI

Nov 25, 2024 11:12 am

Hi Bob,

Are you able to provide measurements for the 39-102 T Handle? I am interested in particular in the diameter of the round neck.

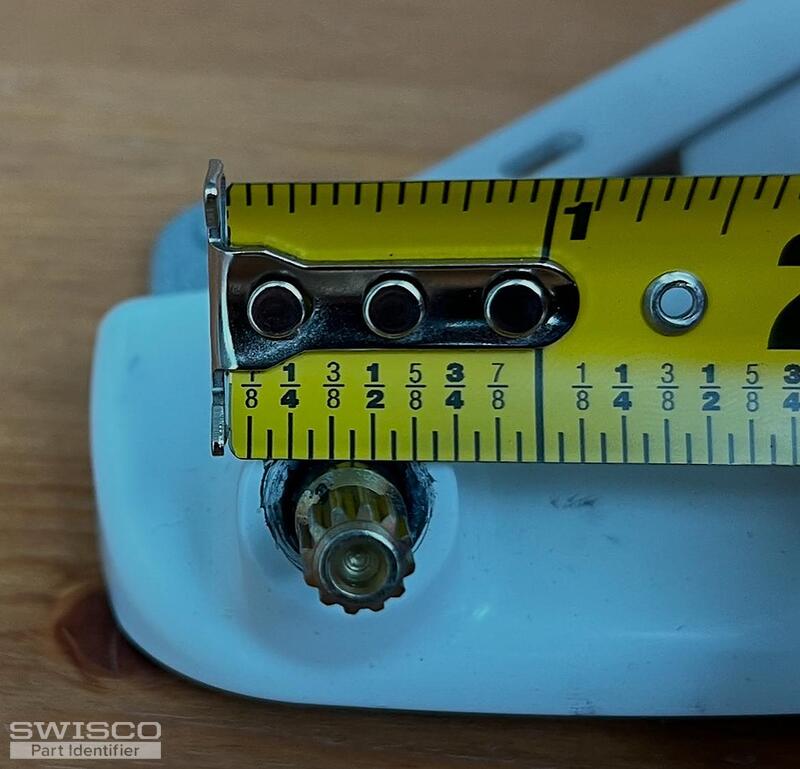

I want to make sure that the diameter is the same as the Truth Dyad Operator (Product Code: 39-315). I measure about 3/4 inch for the operator.

Moreover, I see that the 39-102 T Handle is snap on with no screw. Will it fit well in the Truth Dyad Operator (Product Code: 39-315)?

Thanks,
Sal

1 user uploaded image

Bob from SWISCO

Nov 25, 2024 4:01 pm

Hi Sal. The 39-315 has a spline diameter of 11/32". The 39-102 is meant to fit operator splines with this diameter. Therefore it should fit. Let me know if you have any other questions.
