Casement window opener

A landlord from Rochester, NY says:
February 3, 2020
I don't see any markings on the old opener. No name or numbers
Thumbnail of the uploaded file named 20200203_090948.jpg
Thumbnail of the uploaded file named 20200203_090934.jpg
Thumbnail of the uploaded file named 20200203_090924.jpg

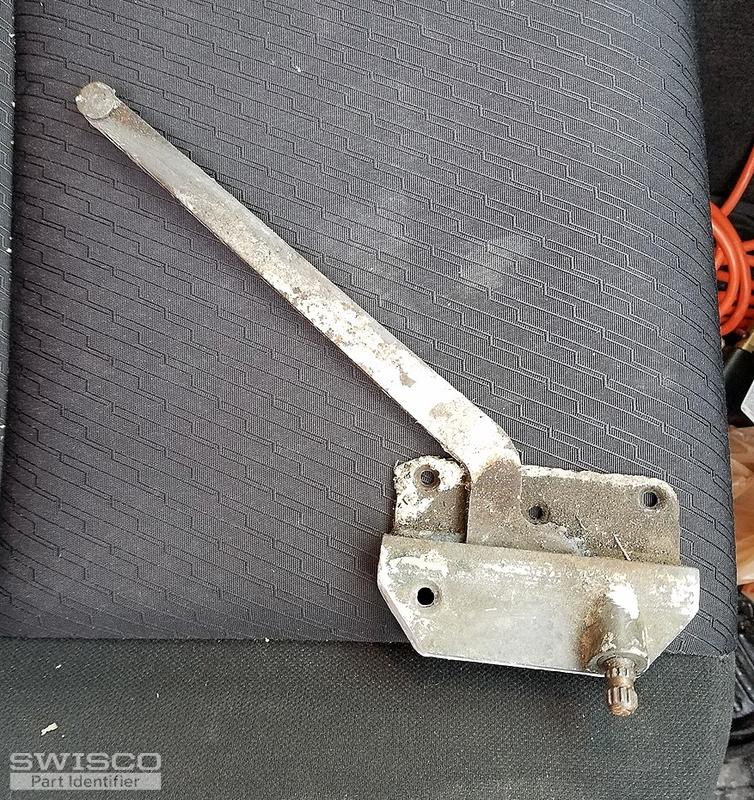

Thumbnail of the uploaded file named 20200203_090904.jpg
A landlord from Rochester, NY says:
February 3, 2020
This is another opener that I need to replace. No markings on this one either.

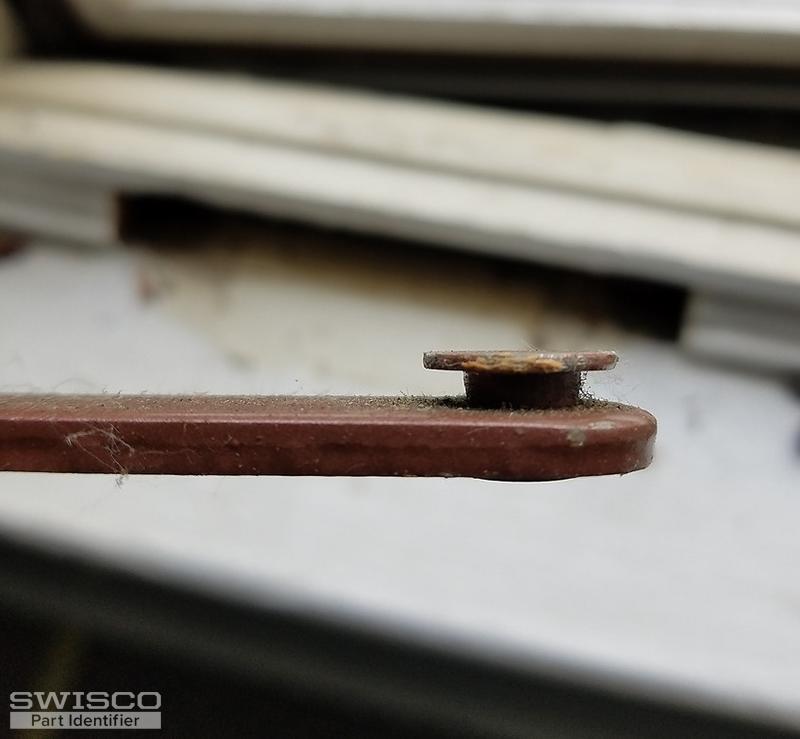

Thumbnail of the uploaded file named 20200203_105527.jpg

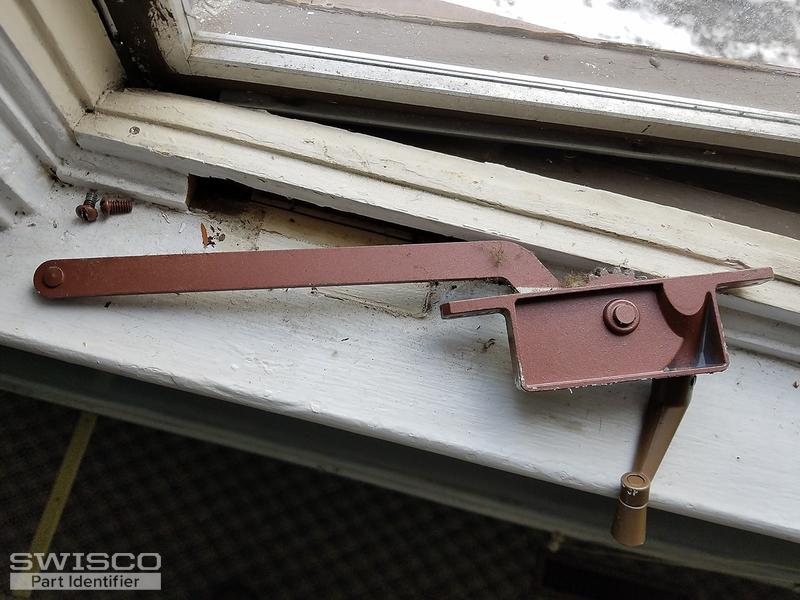

Thumbnail of the uploaded file named 20200203_105510.jpg

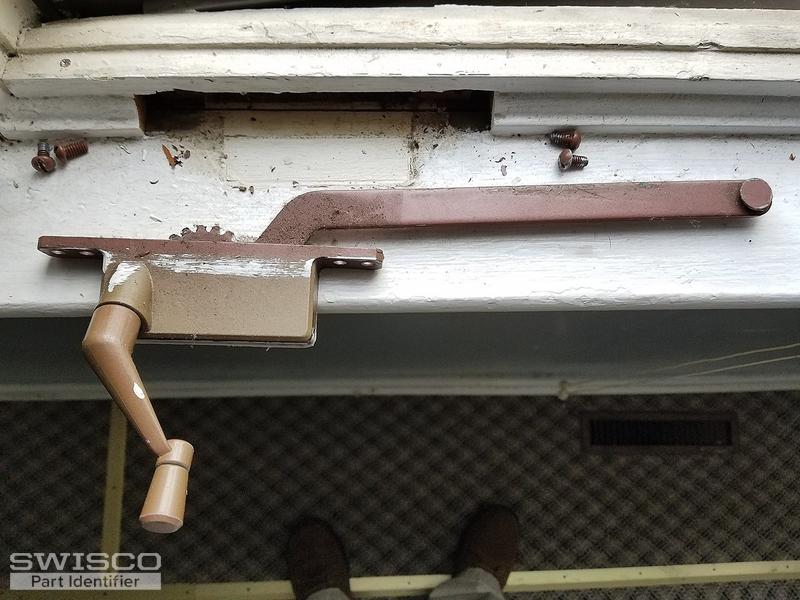

Thumbnail of the uploaded file named 20200203_105500.jpg

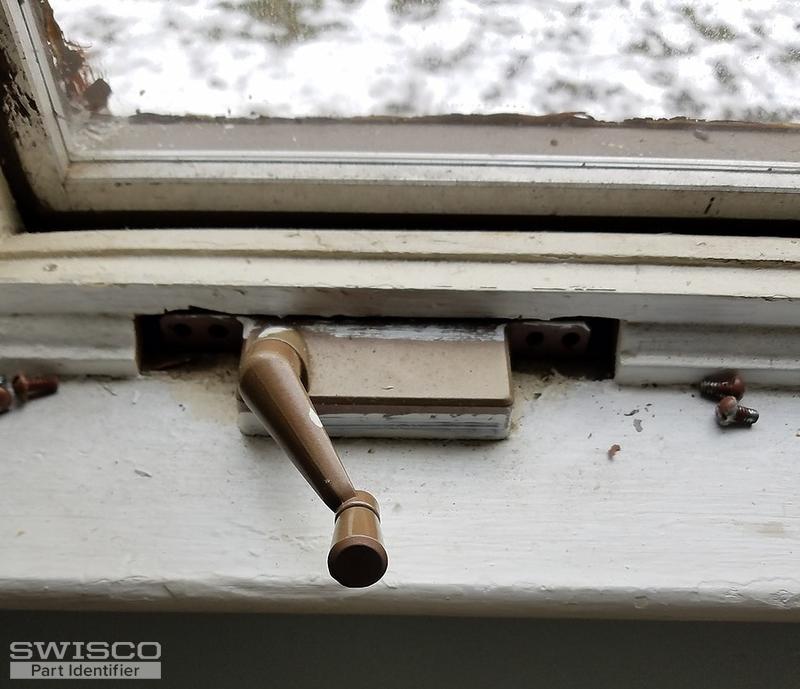

Thumbnail of the uploaded file named 20200203_105421.jpg
Profile picture of Tom
Tom from SWISCO responded:
February 6, 2020

Hi there! These operators are very old, but we should still be able to help.

Starting with your first batch of photos, the best replacement option we have is our 39-027E. The 39-028E is the opposite side. Your old part isn't made anymore but these are the best options we have.

You'll note that the wheel at the end of the arm is different on these, so you'll also need a 39-533 track to help it connect to the sash. Some alteration of the sill may be necessary as well, though I'm not sure. I've never personally used our hardware to replace your old part, but this is the best option we have. Look these parts over and see what you think.

For your second batch of photos, see our 39-001 and 39-002. I feel confident that these will work for you.
Window Crank Operator, 9"
Window Crank Operator, 9"
39-001
$17.45
Window Crank Operator, 9"
Window Crank Operator, 9"
39-002
$17.45
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
11-3/8" Casement Operator Track, 3 Hole
11-3/8" Casement Operator Track, 3 Hole
39-533
$2.95
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
