Casement window operator

Quick Learner from Ames IA
Sep 17, 2024 3:32 pm

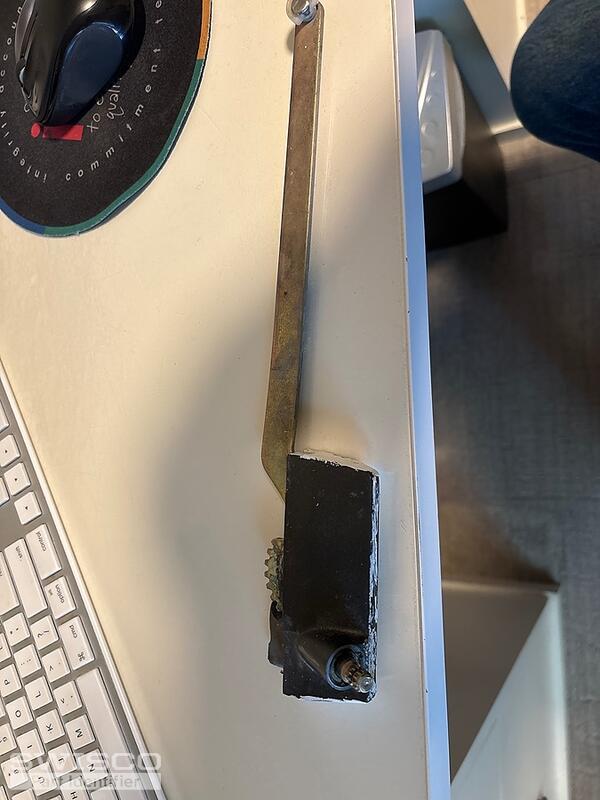

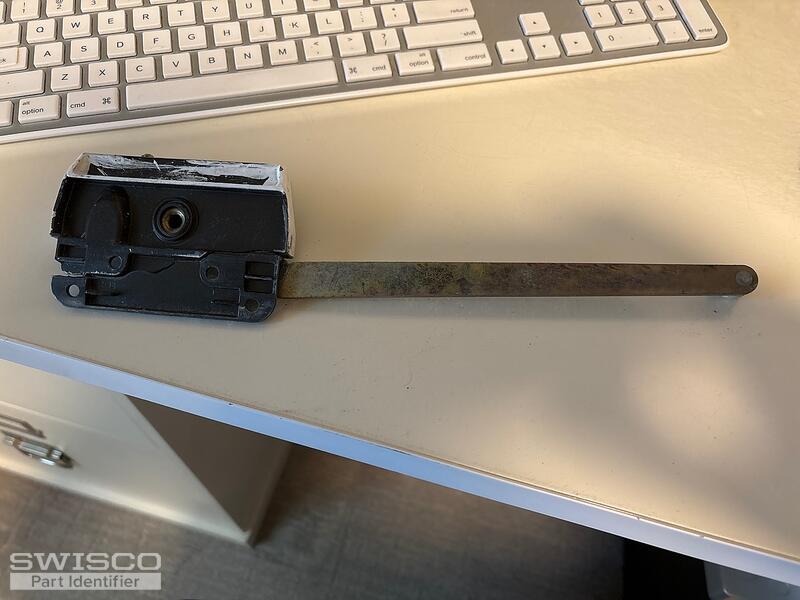

Attached are pix of the operator. Arm is 9 1/2" center to center, 9/16" roller on the end and widest screw holes are 3". No ID other than RH LH and the number 30350 on another arm attached to the window. Searching I find part numbers 39-027E and 39-028E to be a close, am I correct? Thanks.
image image
2 user uploaded images
1 Replies
+ Add a Comment
Bob
Bob from SWISCO
Sep 17, 2024 4:18 pm
SWISCO
EXPERT

Thanks for posting. I agree, this looks like an older version of our 39-028E and 39-027E Operators. For a compatible handle, see the 39-114L sold separately. Let me know if you have further questions.

+ Add a Comment
Products and resources found in this discussion
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
