Casement window parts replacement

A quick learner from Fort Myers, Florida says:
I'm looking to find a locking lever and the replacement parts to open slider arms crank etcasement window. Del Mar Toronto. White

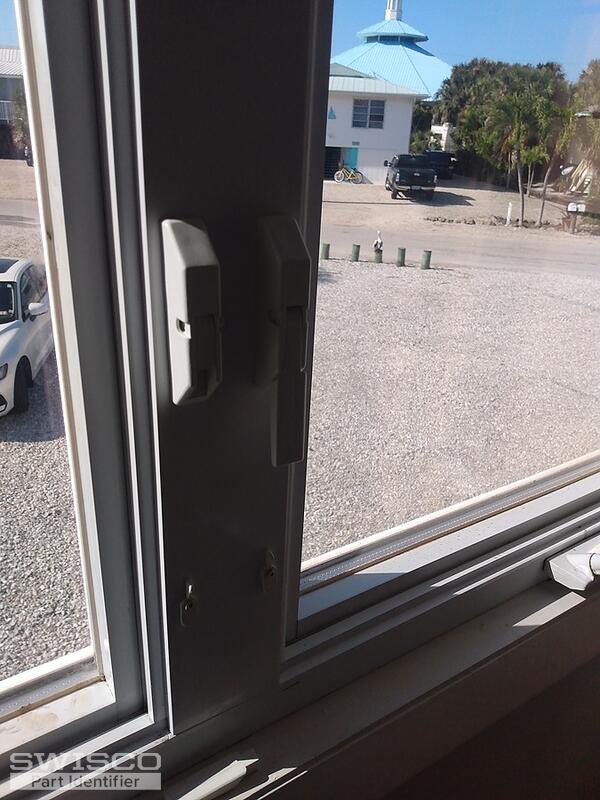

Thumbnail of the uploaded file named IMG_20220103_141024768.jpg

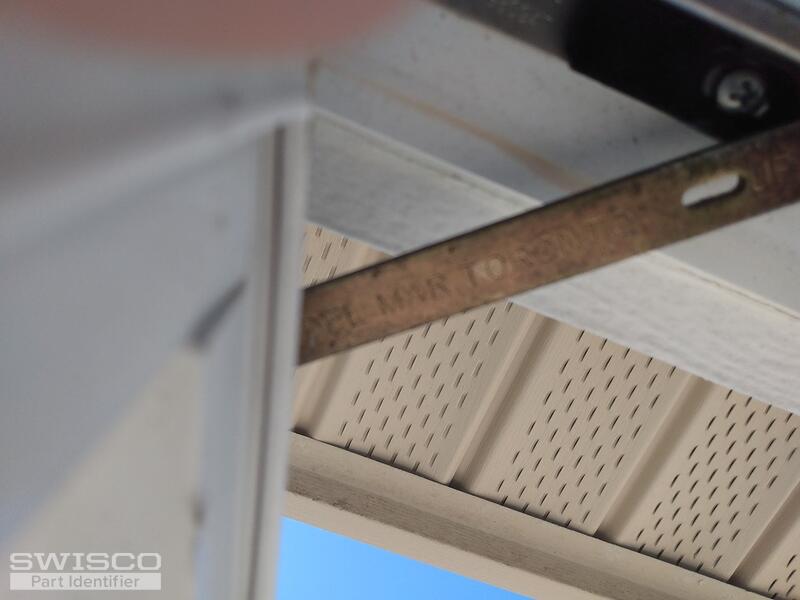

Thumbnail of the uploaded file named IMG_20220103_135706742.jpg

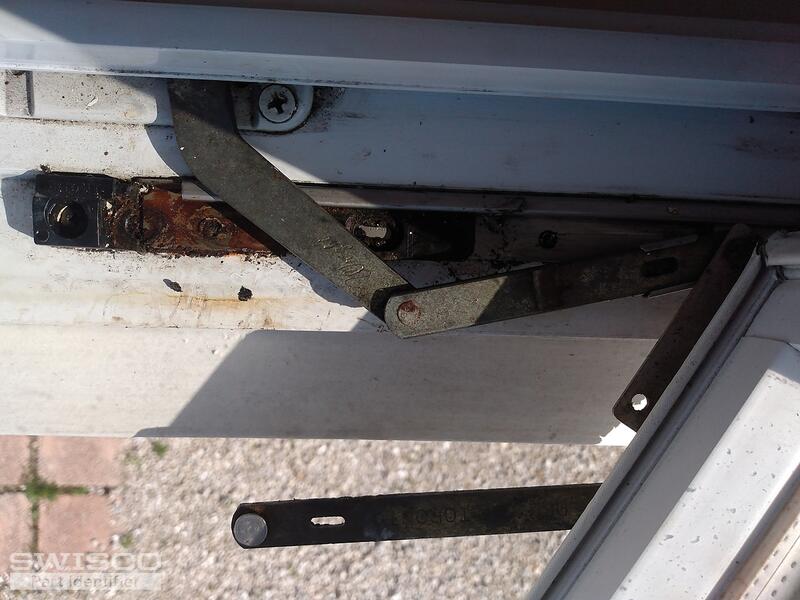

Thumbnail of the uploaded file named IMG_20220103_135528116.jpg

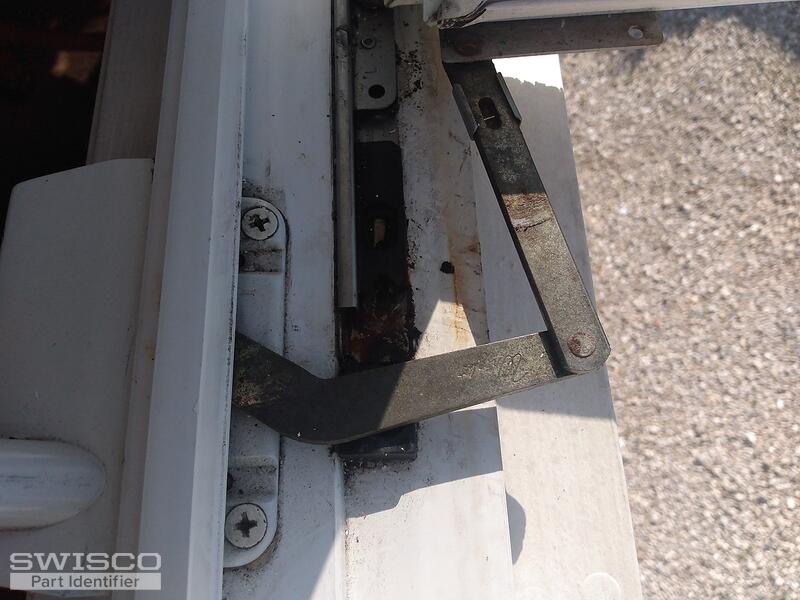

Thumbnail of the uploaded file named IMG_20220103_140039203.jpg

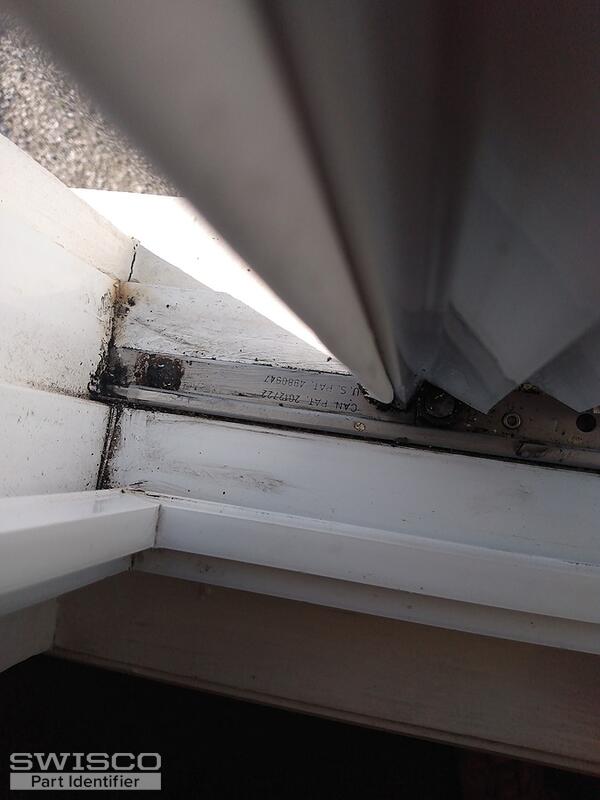

Thumbnail of the uploaded file named IMG_20220103_135908498.jpg
A quick learner from Fort Myers, Florida says:
I'm looking for the replacement parts for this del Mar Toronto casement window. Right hand out swing
Thumbnail of the uploaded file named IMG_20220103_135706742.jpg
Thumbnail of the uploaded file named IMG_20220103_135528116.jpg
Thumbnail of the uploaded file named IMG_20220103_140039203.jpg
Thumbnail of the uploaded file named IMG_20220103_135908498.jpg

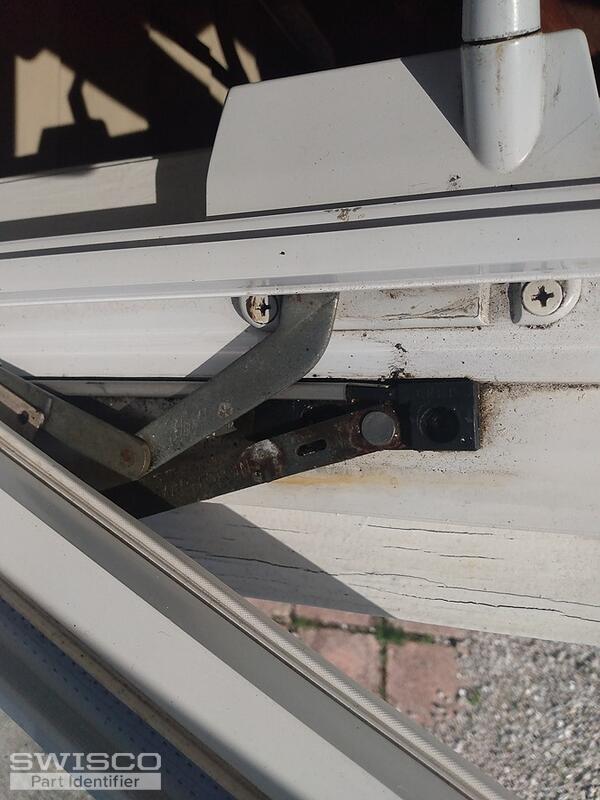

Thumbnail of the uploaded file named IMG_20220103_140030303.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We don't have an exact match for this operator, but you may be able to substitute with our 39-387 and 39-388

Please note that y ou will have to reverse the clip at the end of the link arm. This can be done simply by popping it off with a flat-head screwdriver.

The arm dimensions may also be a little different, but I measured them together and the sum total comes out to 7-7/8" from the center of the gear to the end of the link arm.

As for the other parts in your photos, see the 38-090 locking handle, as well as the 36-048 hinge set. Thanks for posting!
