Casement windows
Hello,

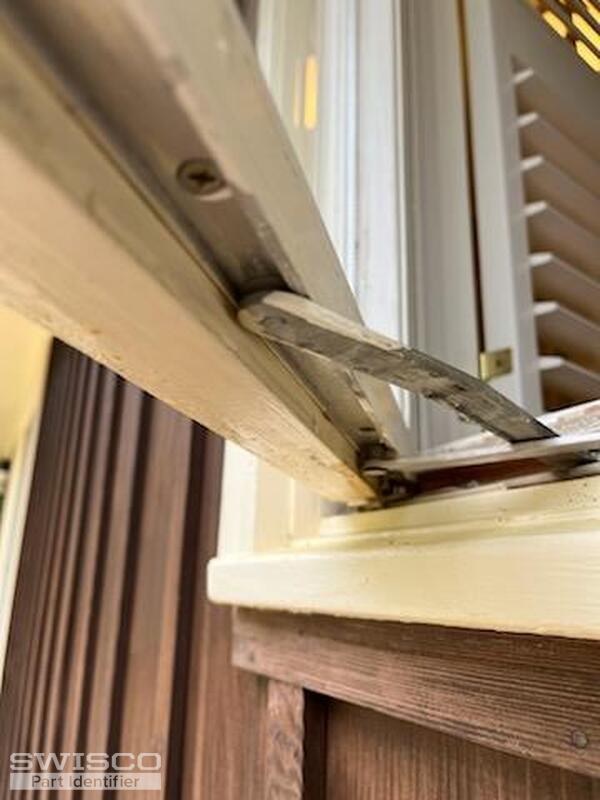

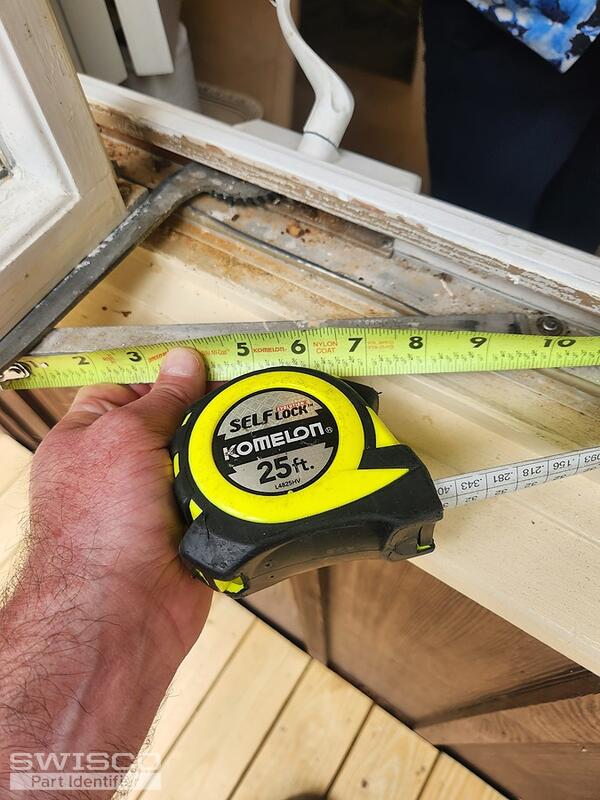

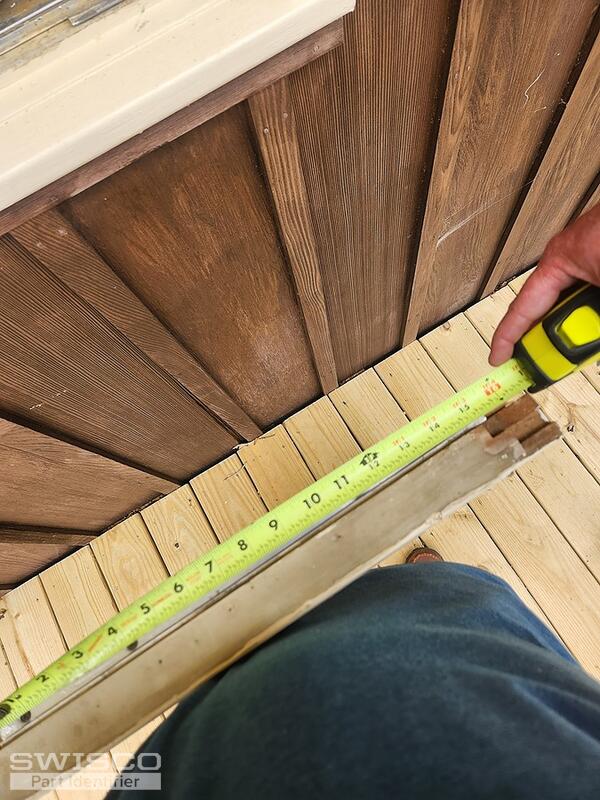

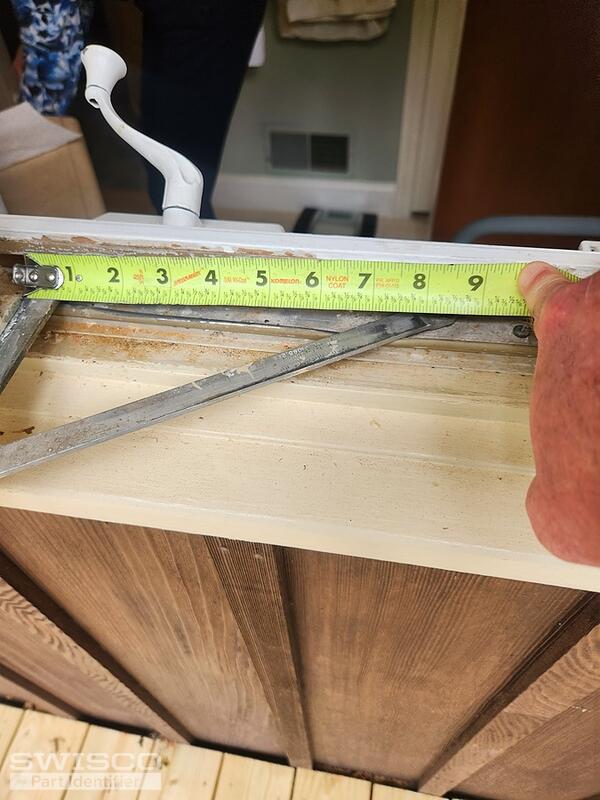

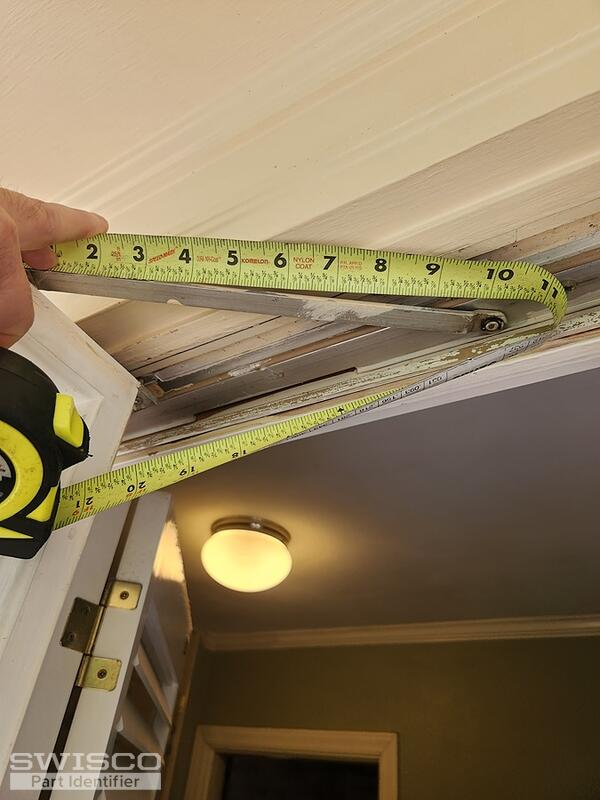

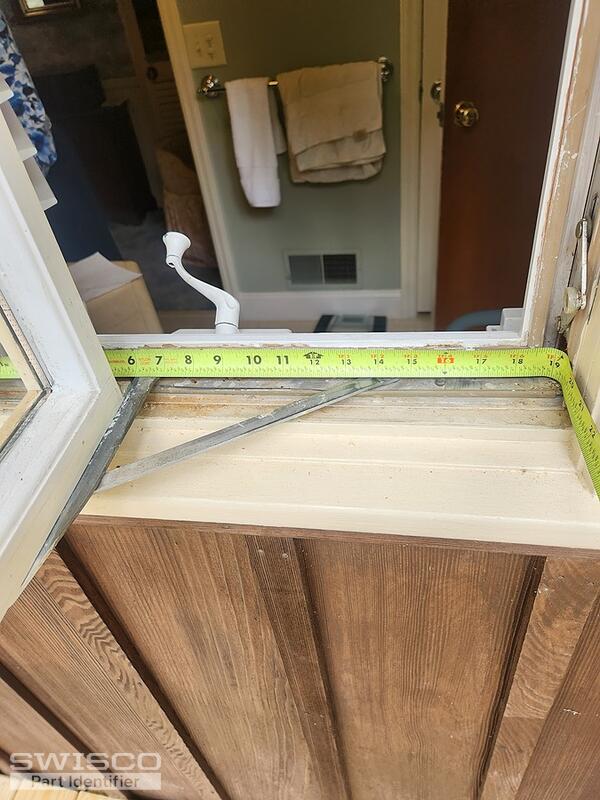

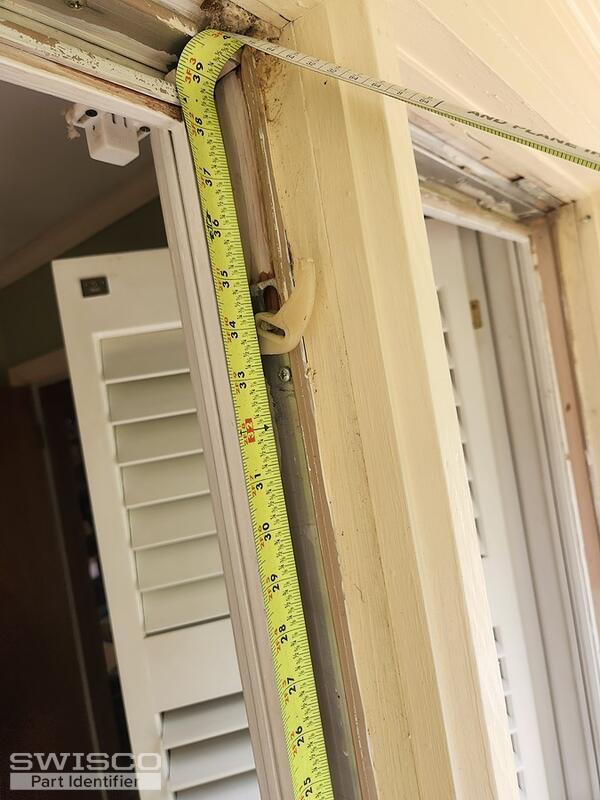

We'd be happy to help but we'll need to see a close-up photo of the operator base and arms to compare to our inventory. Also, please write out the exact length of the hinge base attached to the sill on the top and bottom. Thank you!

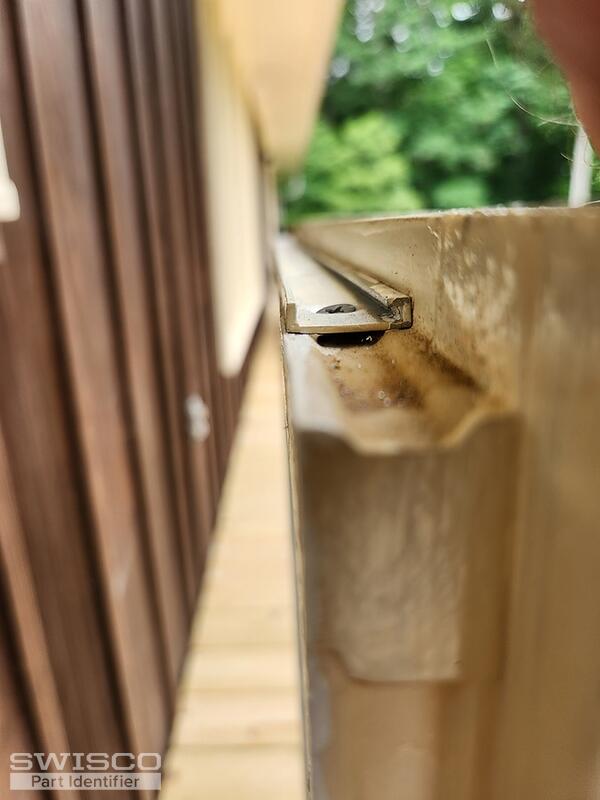

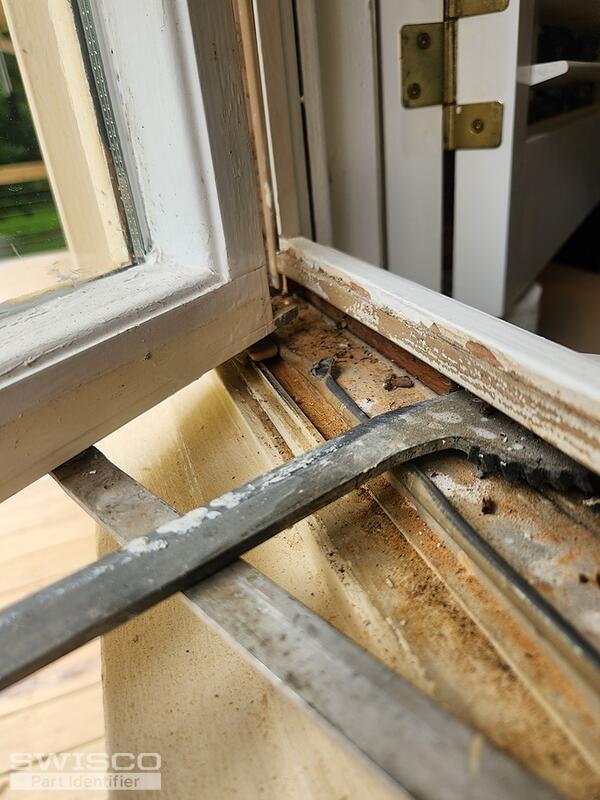

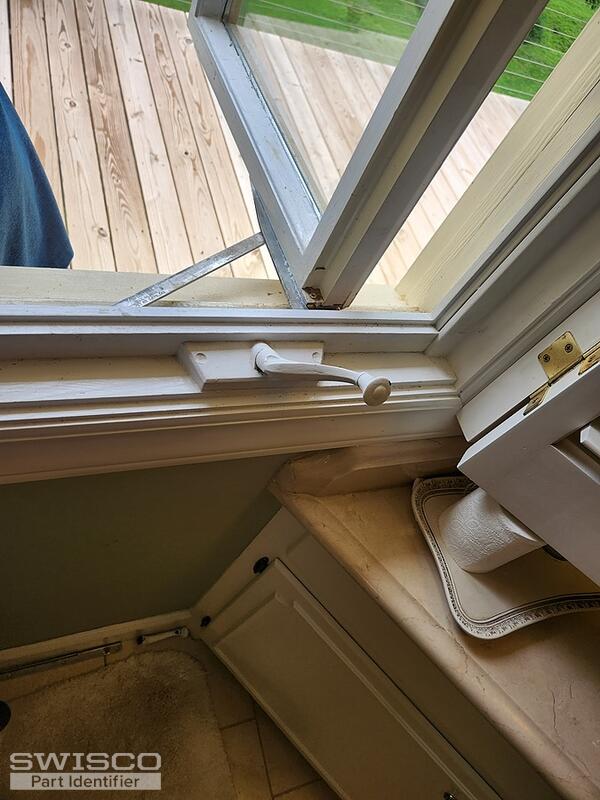

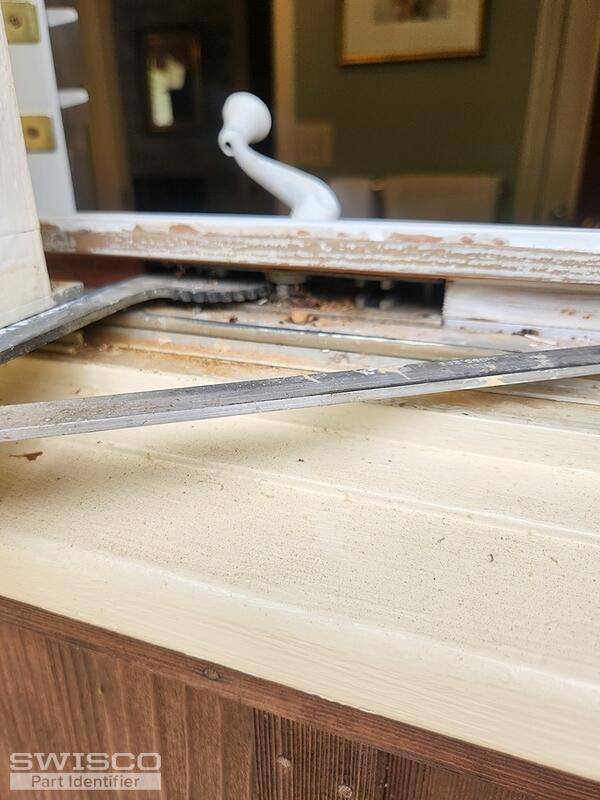

It looks like your casement window needs a complete overhaul. Take a look at the 39-365 operator that uses the 39-504 undermount track. Your window looks like it uses an undermount track.

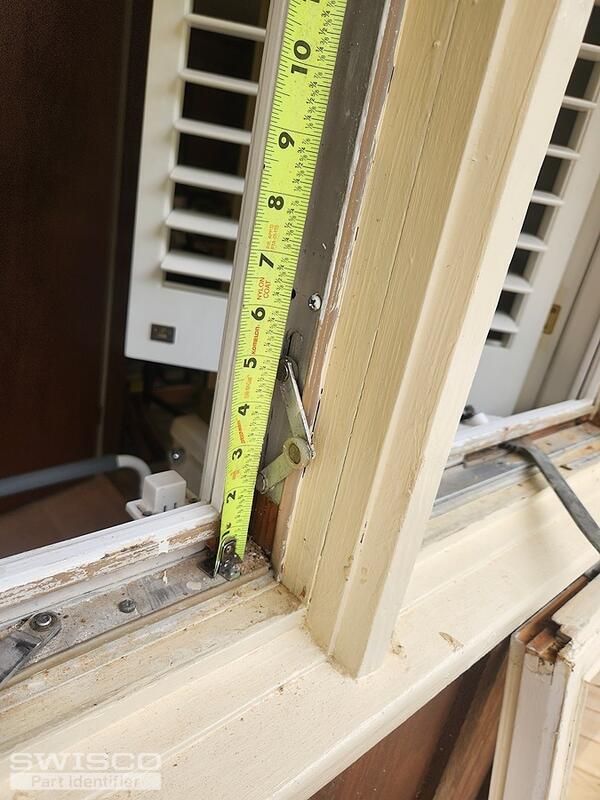

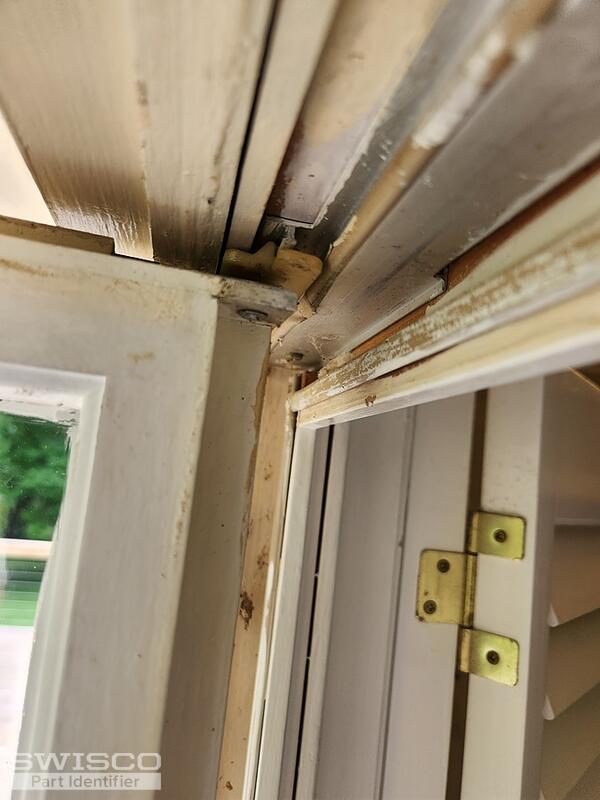

As for the hinge, take a look at the 36-004-10. This is the type of track used by most casement window manufacturers.
As for your window locks, it might be best to use a more typical type of lock, like the 38-075, along with the 38-089 keeper. This job can get a little involved. Take a look at all the related hardware and videos on the website to assist you.
Have you seen the 36-004-10 hinge set we mentioned in our last response? They come in pairs with the shoes attached and the hinge tracks included as shown in our product image. Take a look at our hinges, along with the related videos.
