9-1/2" Single Arm Operator, SS Roller

Product Code: 39-365

Product Description

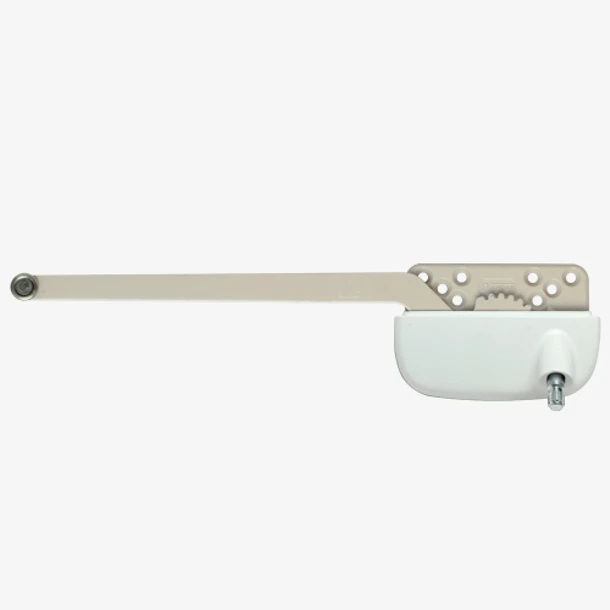

This is a sill mount Truth Hardware single arm crank operator used to open and close wood, metal, and vinyl casement windows.
  • See SWISCO product 39-366 for the opposite handed version.
  • Will provide a full 90 degree window opening.

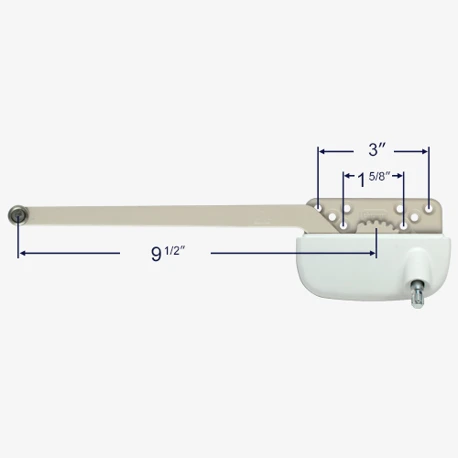

  • 9-1/2" long arm, measured from wheel center to gear center.
  • 11/32" spline; handle sold separately.
  • Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with a stainless steel roller.
  • Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.
