Good morning .... I'm hoping that you can help me with casement window repair parts. I believe the windows are Castle windows. Left and right opening assemblies. The actuator and hinges appear to be Truth. I have looked on the website, but I want to make sure that I am looking at and ordering the correct parts. Please see the attached photos for actuator and hinge dimensions. There are also some part numbers that are stamped on the parts. Thank you in advance. I look forward to hearing from you.
Best regards..... Mike T.
Castle Window Casement Parts 1 of 2
Home Owner from Mill City PA
May 9, 2026 11:27 am
5 user uploaded images
3 Replies
Home Owner from Mill City, PA
May 9, 2026 11:29 am

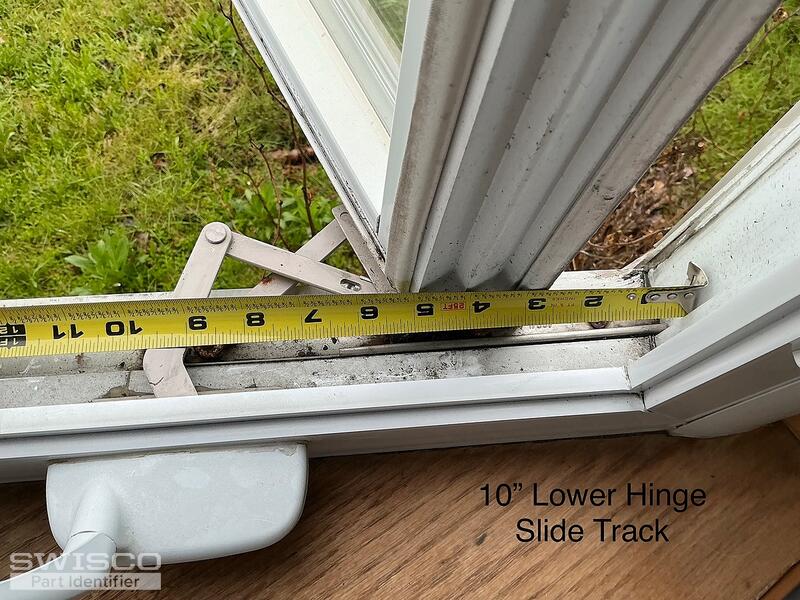

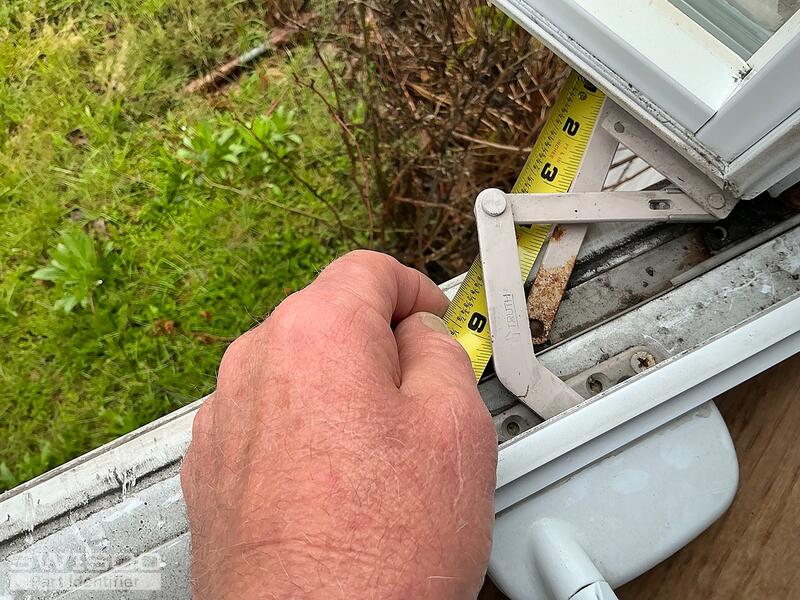

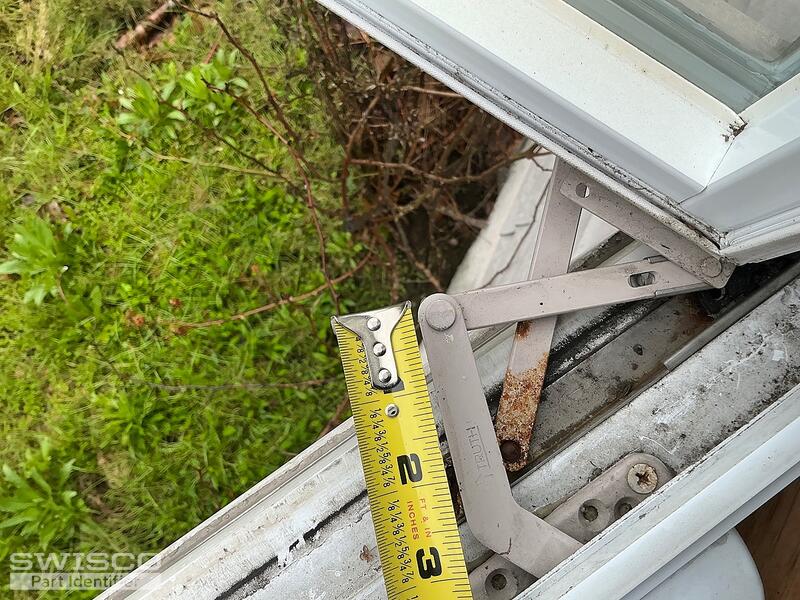

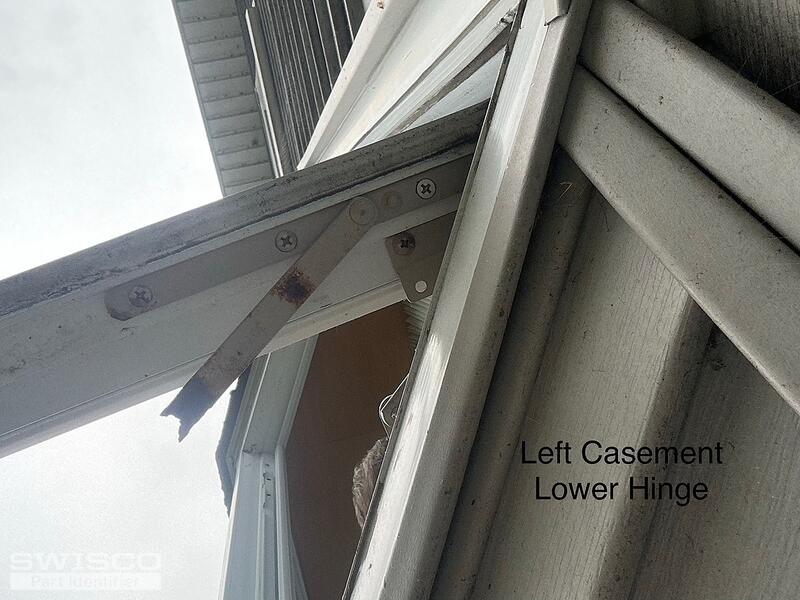

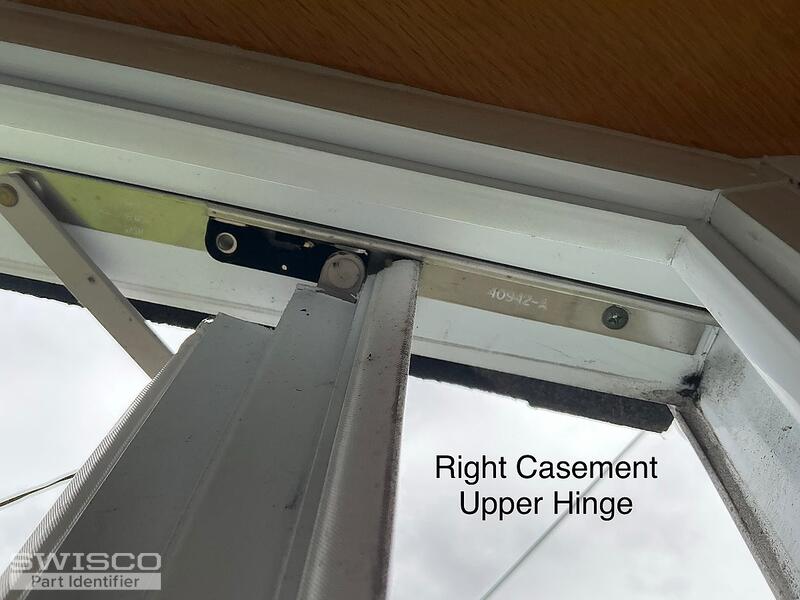

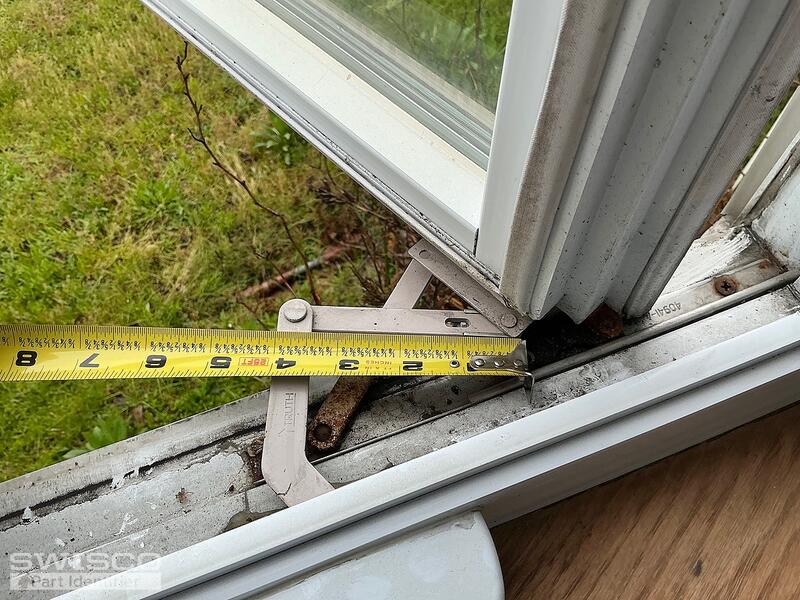

Good morning .... I'm hoping that you can help me with casement window repair parts. I believe the windows are Castle windows. Left and right opening assemblies. The actuator and hinges appear to be Truth. I have looked on the website, but I want to make sure that I am looking at and ordering the correct parts. Please see the attached photos for actuator and hinge dimensions. There are also some part numbers that are stamped on the parts. Thank you in advance. I look forward to hearing from you.
Best regards..... Mike T.
Best regards..... Mike T.
4 user uploaded images
Emily from SWISCO
May 14, 2026 10:03 am
Hi there Mike!
I recommend having a look at the 10" 36-048 hinge set, 39-317 and 39-318 operators, along with the 38-090 lock. If you need the stud brackets, see the 39-513 and 39-514 (sold separately). You'll want to go over the specifications for each part to see how they compare with your old hardware.
Note that we recommend replacing the top and bottom hinges at the same time.
Please let us know if you have any questions!
Detail of 36-048
Additional dimensions for 36-048
Alternate image for 39-317
Alternate image for 39-318
Unlocked rear view of 38-090
Dimensions for 39-513
Dimensions for 39-514
