Product Code: 39-317

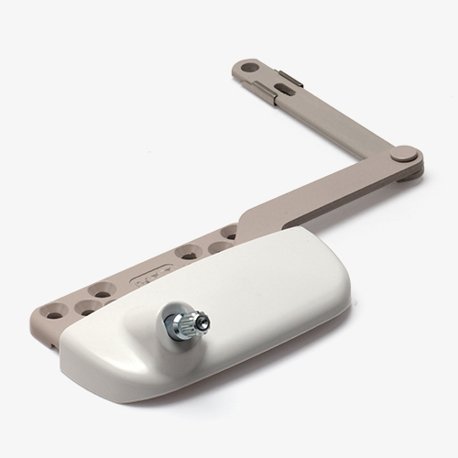

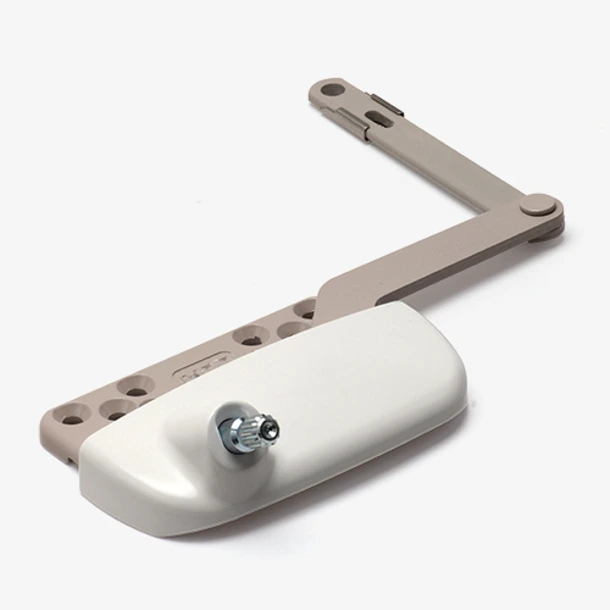

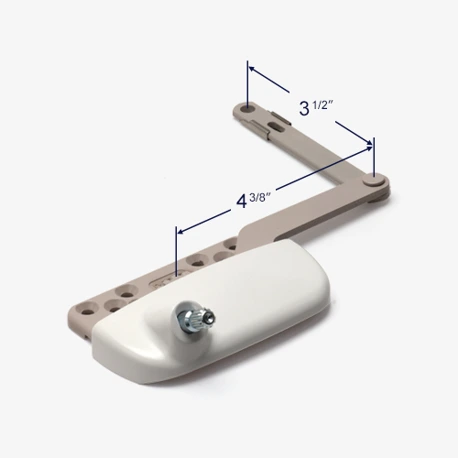

Truth Split-Arm Operator

$35.70

Truth Split-Arm Operator Image

Alternate image for 39-317

Product Description

This is a genuine Truth Hardware sill mount, split arm crank operator . Used to open and close casement windows.

See SWISCO product 39-318 for the opposite handed version.
4" link arm with a bottom detachable clip.
11/32" spline; handle sold separately.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

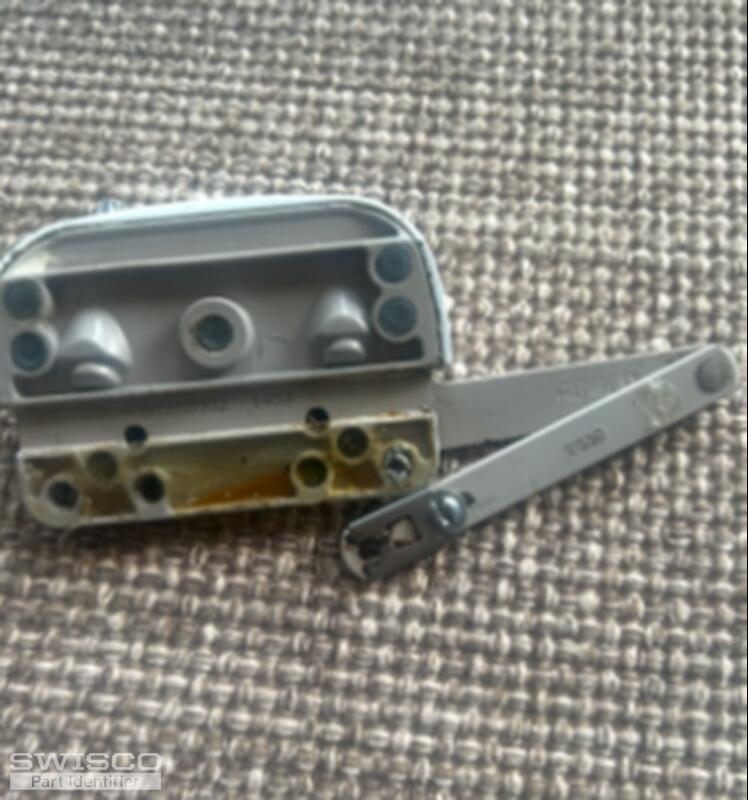

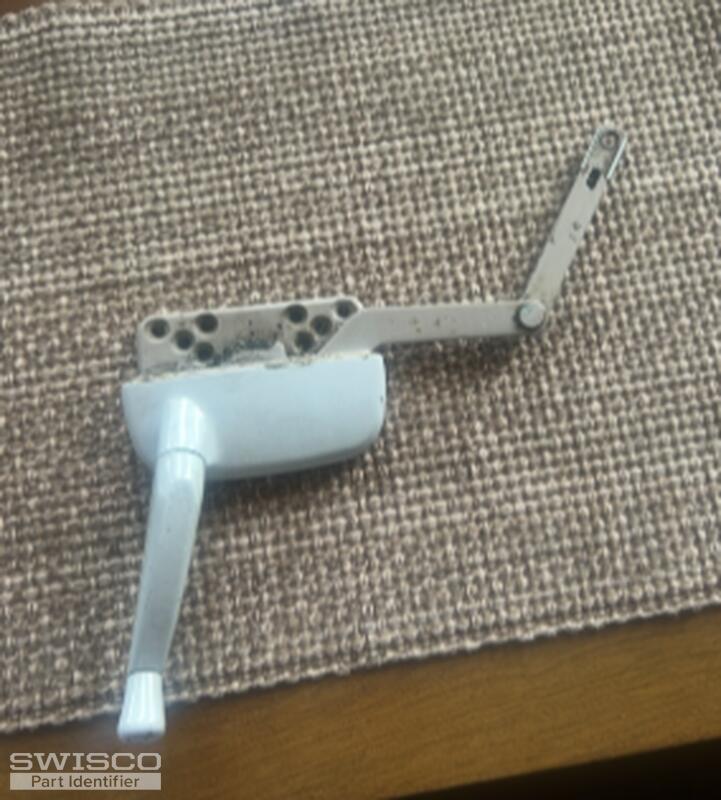

Looking for a couple (L&R) Truth casement window operators. The handle is white and the old number I see on the bars/hinge is 21550. Any help is appreciated. Jim

+3

+2

Replacment parts

Can anyone help me identify this casment door hinge and locking mechanism. Need to replace because they are broken.

+3

+2

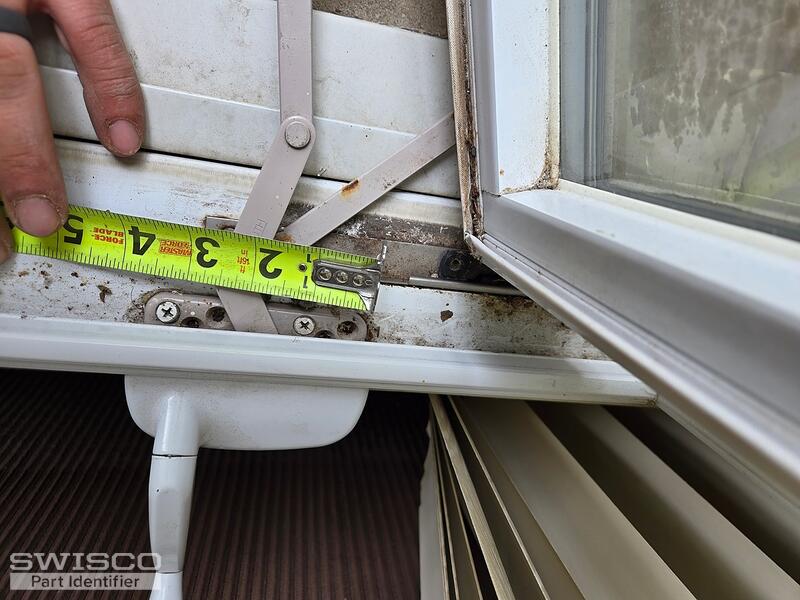

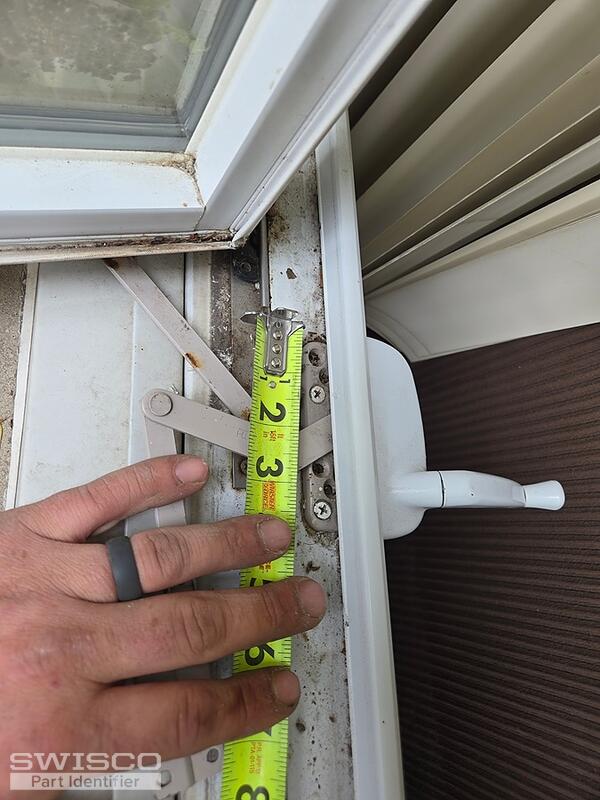

split arm operator and crank handle

The white part is 4 and 1/4 inches. For the grey horizontal, the measurement from where the diagonal begins on the white part it’s 3 and 3/4. But from the middle of the white part to the end of the horizontal part it’s 4 and 3/4. Then the grey diagonal handle is 3 and 3/4 ... (cont.)

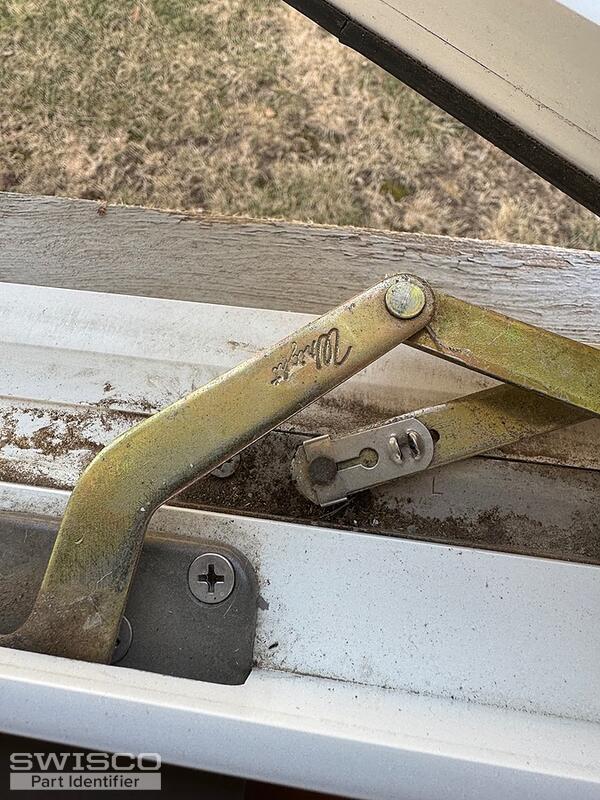

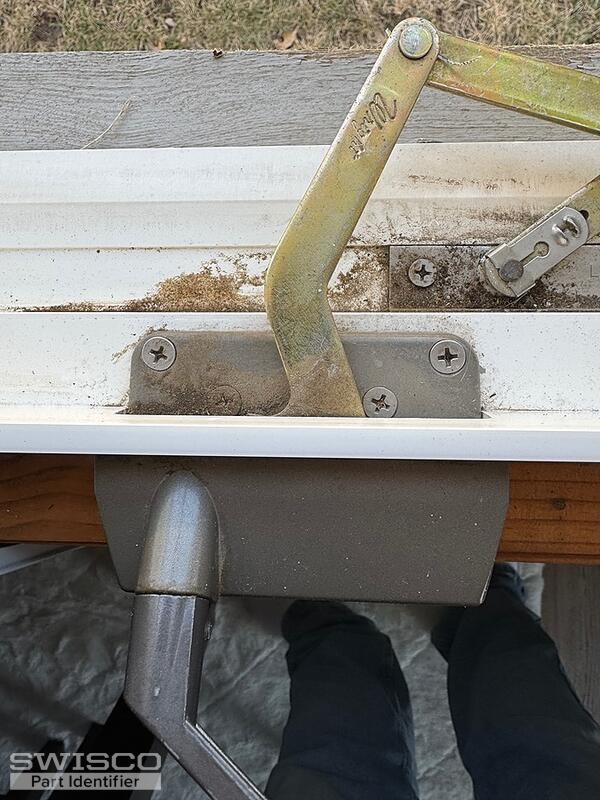

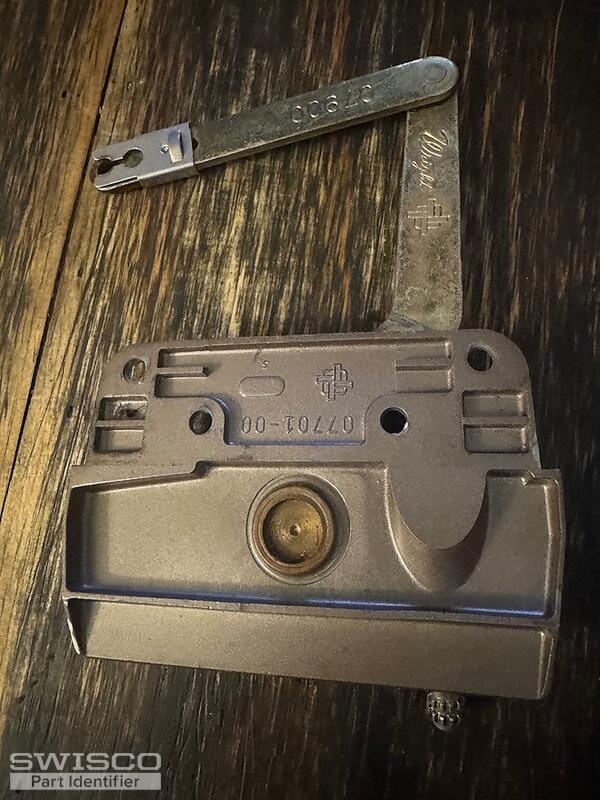

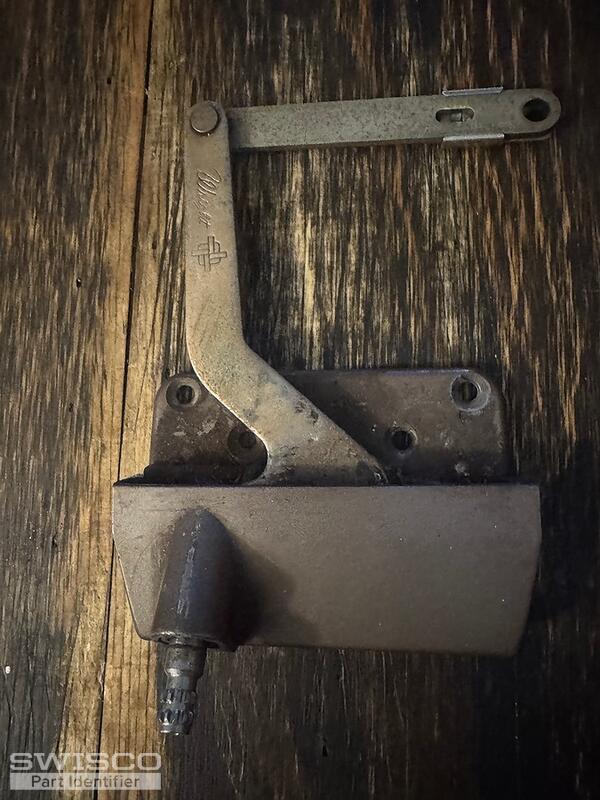

Window crank and locks for my casement windows

Hi. I am looking for replacement crank mechanisms and lock handles for my windows. The only numbers I can find on crank hardware is Wright, AMS, and the number 6092. These windows were installed in the late 80's as part of a home addition.

+1

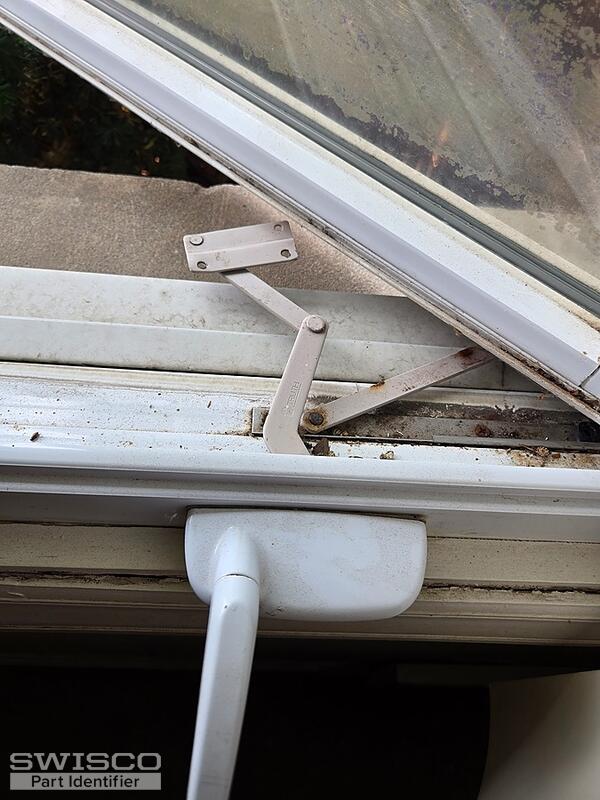

Need Window Parts

Need an Operator, Hinge and Lock for the window. (He said there isn't an OffSet on the Link Arm.) Thank you.

+4

+3
