Castle windows

Quick Learner from Maryland

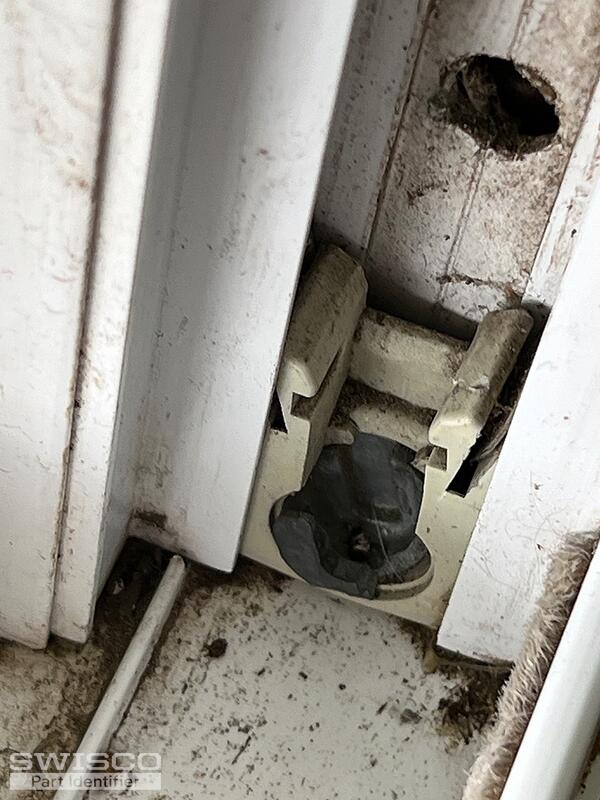

I need 6 guides and about 10 pins
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello!

I recommend our 15-177 pivot shoe and 26-030 pivot bar. They appear to match what you have here but take a look at the specifications and see what you think. Let us know if you have any questions!

Quick Learner from Maryland

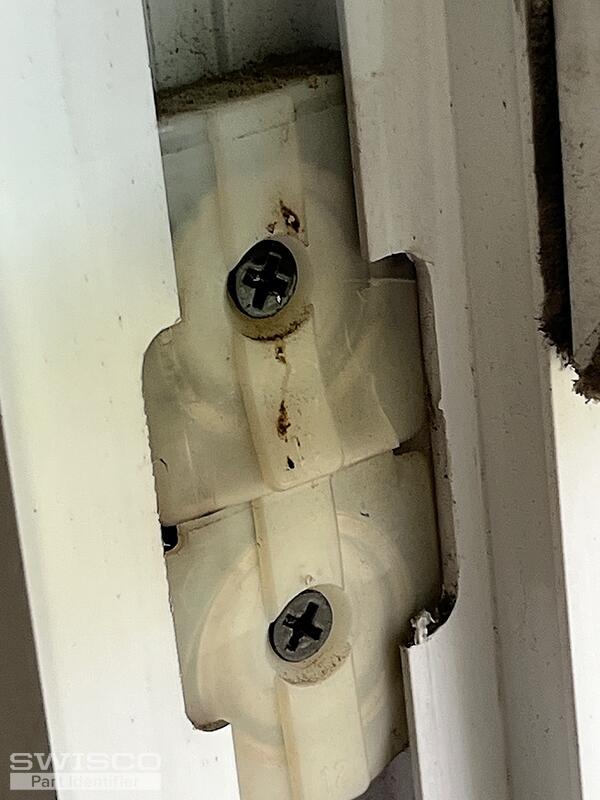

Is there spring balance in the picture and what type
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

Yes this is a coil balance. The Series 152 are the compatible springs. We don't sell the exact coil spring covers shown here but we recommend the 15-143 coil bushing, 15-144 bushing cap, and 15-145 support barrel. They're designed to "sandwich" around each coil spring.

We also recommend checking the end of the coil spring for a stamped weight code. If there isn't one or if they're too faded to make out, you'll need to divide the sash weight by the total number of springs in the window to determine the correct coil spring weights.
