CertainTeed single coil replacement

Question

Hi folks,

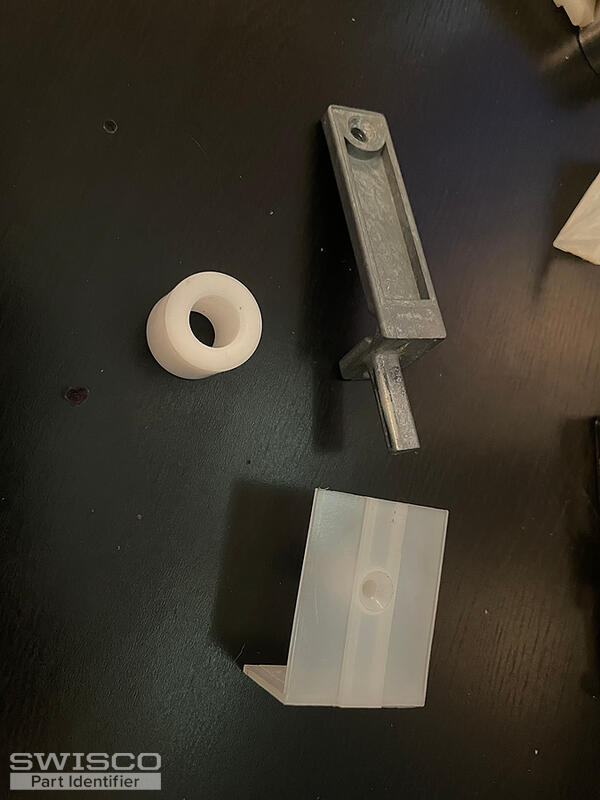

I'm looking for replacements for the parts shown in the attached photos. I'm looking for a matching set for both the left and right-hand sides, even though only one side is shown (I don't have all the original parts in my possession). I know that the L-shaped metal bar comes in a Left and Right variant. I'm not sure if there are Left/Right variants for the other parts.

In case its not clear from the photos, the markings on the shoe reads "Al-87598" (possibly A1-87598). On the reverse side, I see "CertainTeed C1 (possibly Cl)" followed by an upside-down number "2".

The markings on the coil reads "263 J"

There are no markings on the L-shaped metal bars, nor on the plastic bushing nor on the L-shaped plastic slider.

Any help on identifying these parts would be very much appreciated!

Thanks,
Tom

Casey · Accepted Answer

Hello,

Your pivot shoe resembles the 15-192 shown below. Please note that past customers have reported needing to shave down the front of the shoe to fit the window jamb in some cases. If so, keep in mind that modified parts can not be returned.

detail of 15-192

We also offer the S170 coil springs used with this pivot shoe. Your stamp code would correspond to the S170-263, which is held in place by the 15-156 cover and 15-157 drum.

As for the pivot bar, we offer the new style 26-175 featured in our vide below. Take a look and thanks for posting!
