Product Code: S170-263

263 Series 170 Coiled Balance Spring

Name: 263 Series 170 Coiled Balance Spring
SKU: S170-263
Price: 5.94 USD
Availability: InStock

$5.94

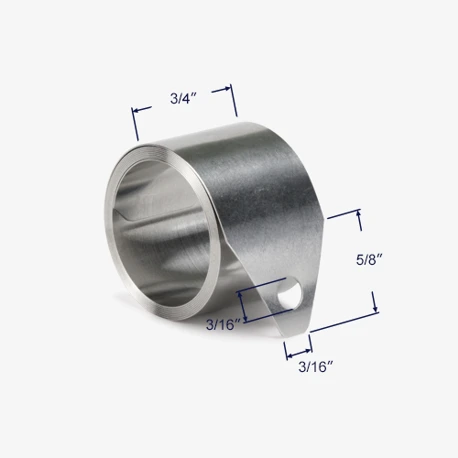

263 Series 170 Coiled Balance Spring Image

Quantity	Price
1-5	$5.94/ea
6-11	$4.82/ea
12-23	$4.02/ea
24-49	$3.37/ea
50-99	$2.90/ea
100-199	$2.54/ea
200+	$2.29/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

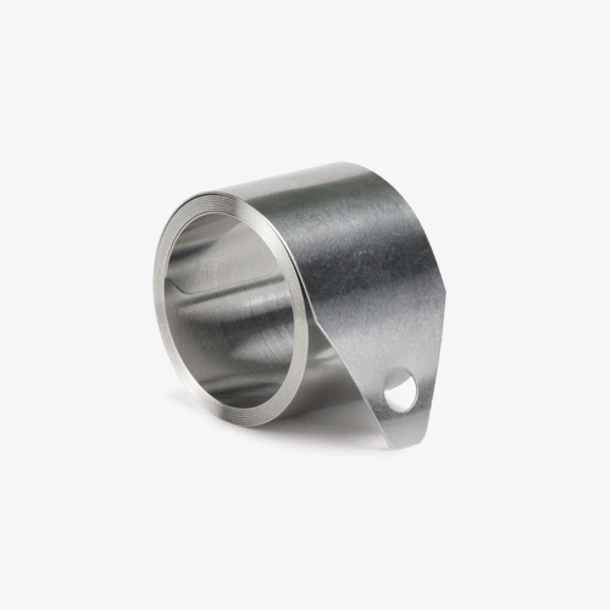

This is a Series 170 spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window sash to stay open when raised and remain shut when closed.

Individually, this coil balance can hold 3 pounds. This is added together with the other coils to support the whole weight of the sash.
This coil is stamped with number 263.
Measures 3/4" thick.
Designed to work with the 15-192 pivot shoe (sold separately).
This coil balance spring is sold individually, not in sets.
Can work for either the left or right side of the window interchangeably.
Coil balances are also known as constant force window balances.
Has a short tongue, meant to install on the bottom of a pair of coil balances or as the only coil balance in a system.
This constant force balance is used in CertainTeed double hung windows.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

CertainTeed single coil replacement

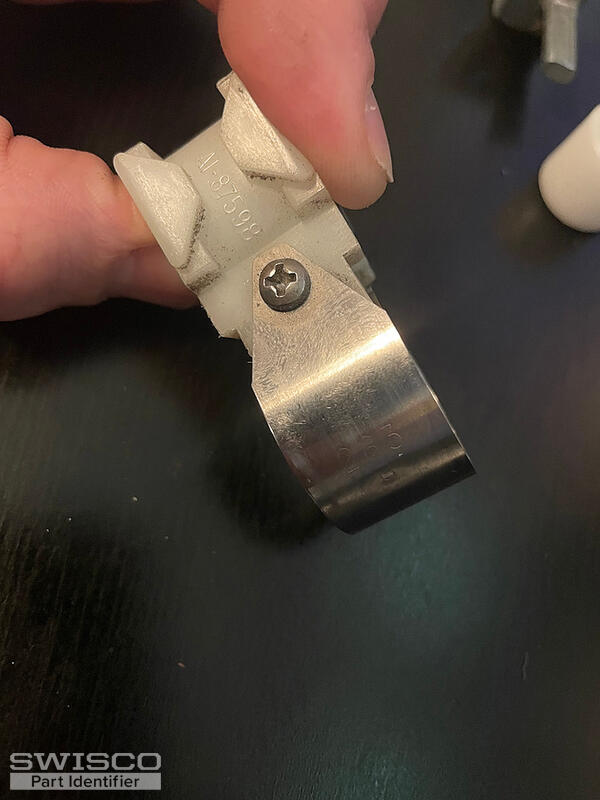

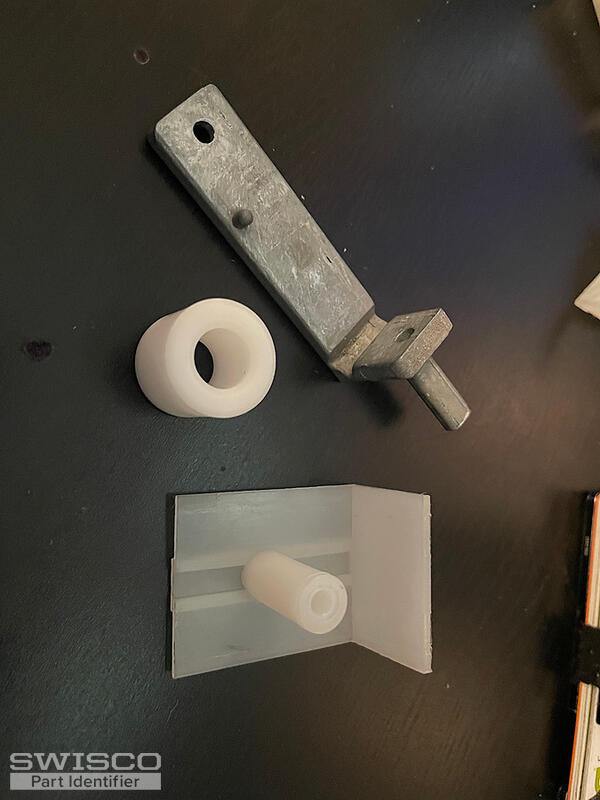

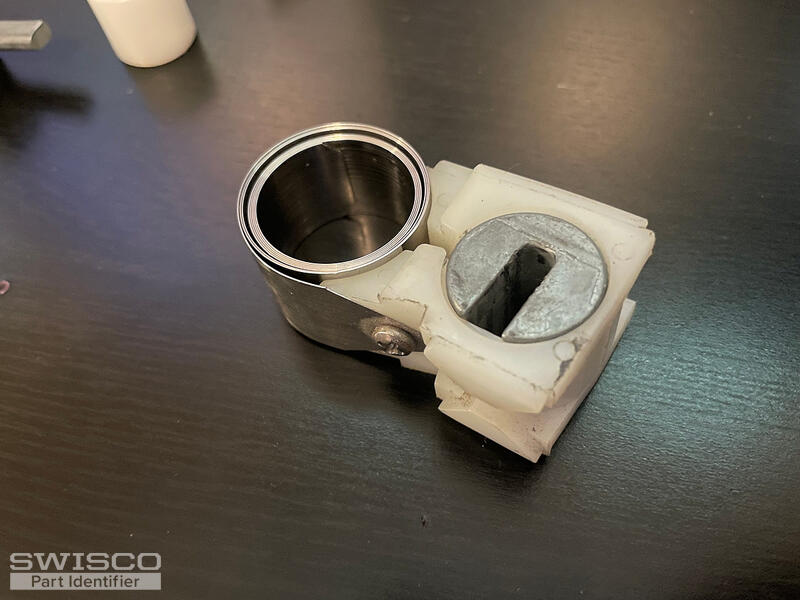

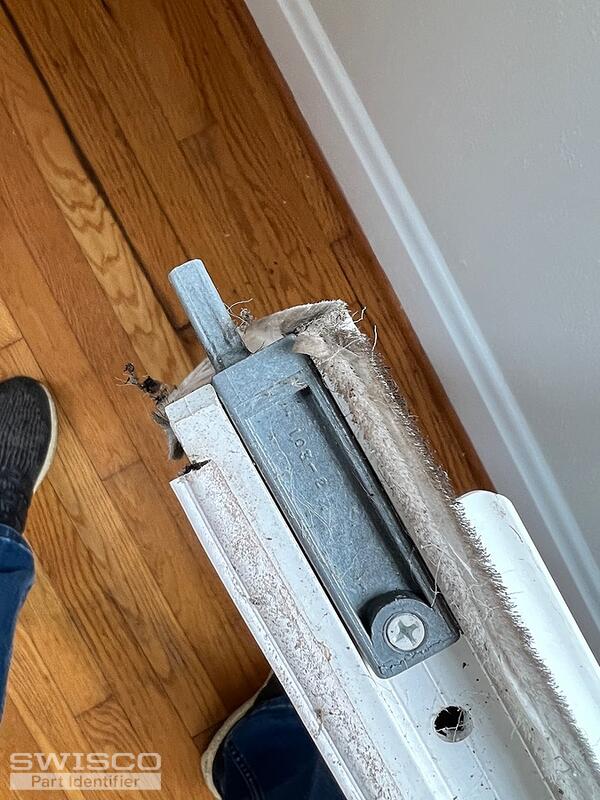

Hi folks, I'm looking for replacements for the parts shown in the attached photos. I'm looking for a matching set for both the left and right-hand sides, even though only one side is shown (I don't have all the original parts in my possession). I know that the L-shaped metal bar comes in a Left a ... (cont.)

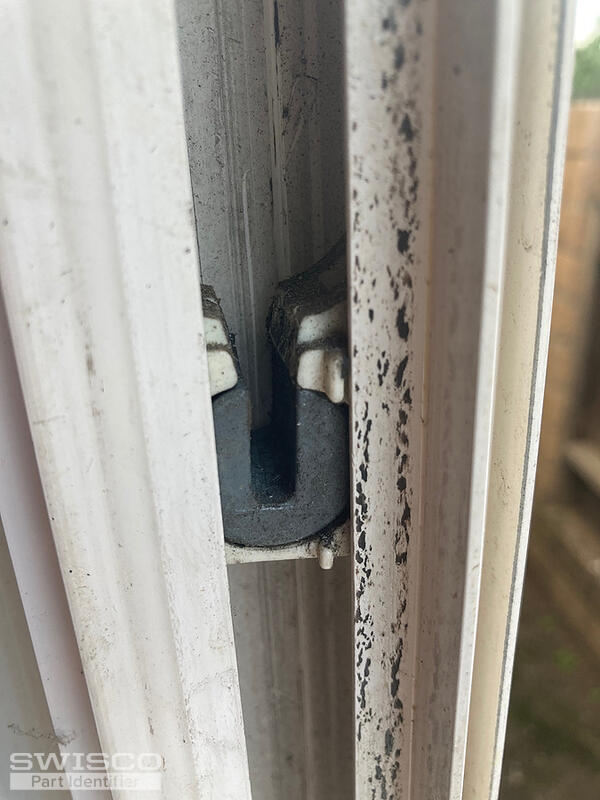

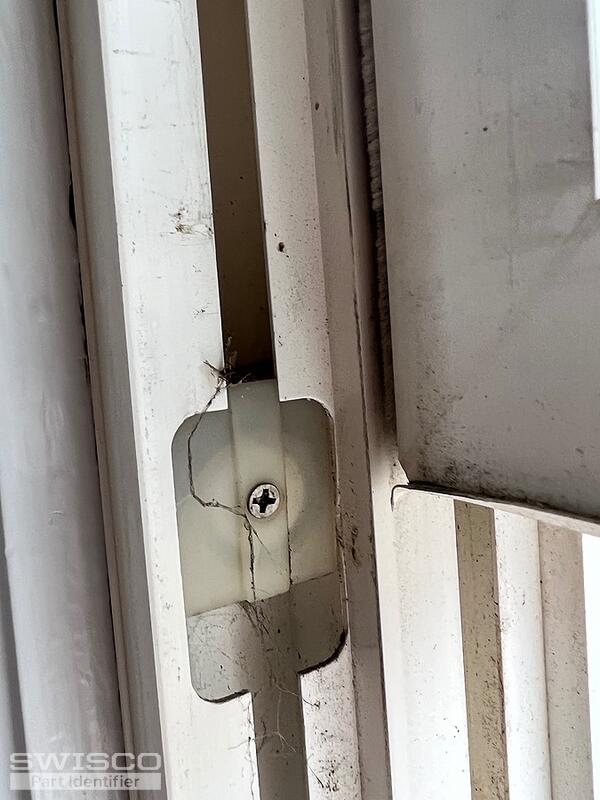

before I remove, should I make a cutout at the top of the channel?

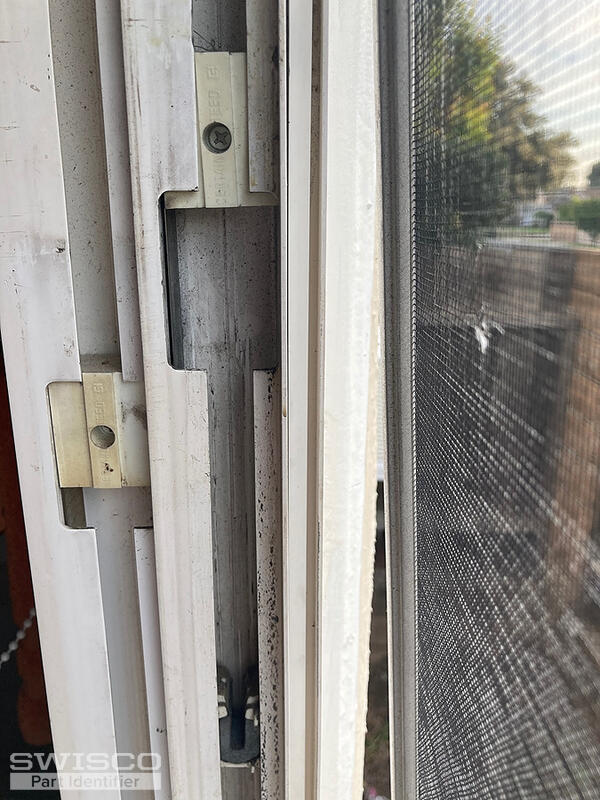

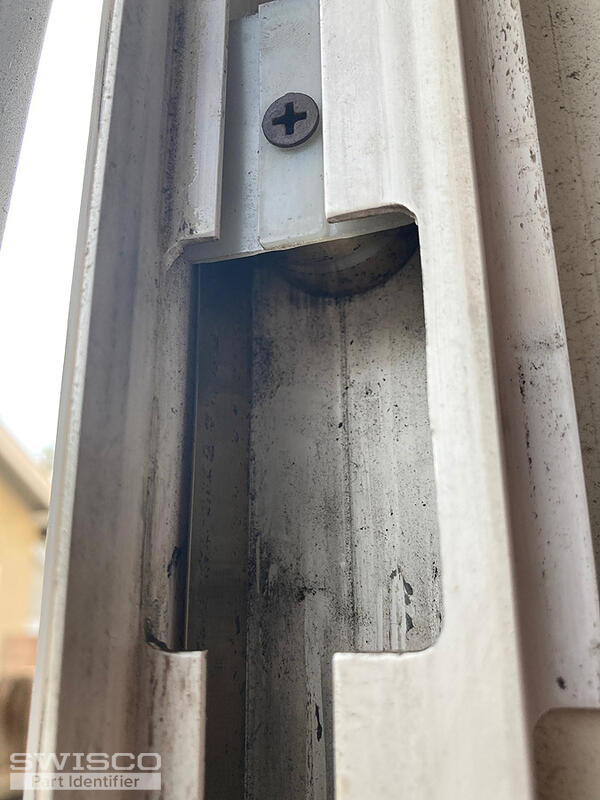

Thanks for helping me with my spiral balance replacements in the past. Your videos are very helpful. For this new type of window, I need to identify the right coil part number. I'll send you a better picture, but I want your advice about where to make the cutout to remove the broken spring. Is t ... (cont.)

Replacement parts for Certainteed windows.

Certeinteed coil balance assembly . Installed in 1998.Will also need pivot pens.

Do you have the certainteed window parts

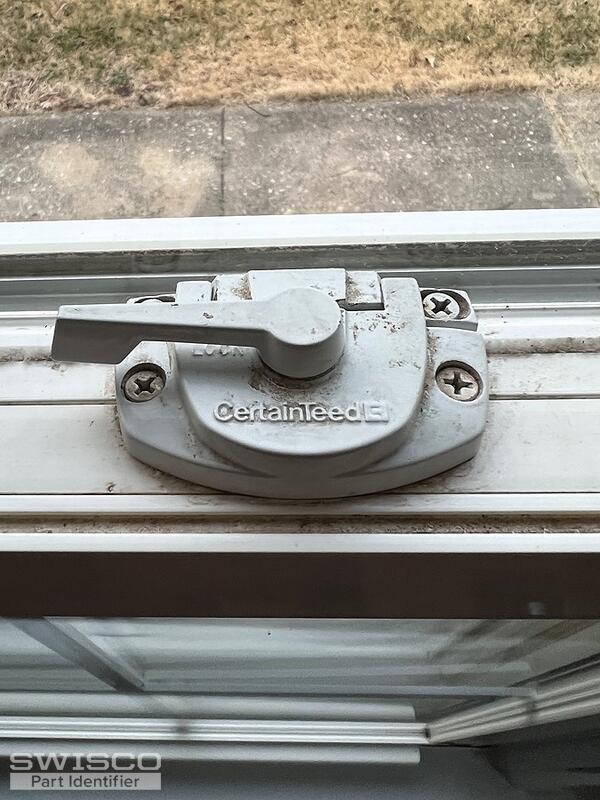

I am at your website and noticed Certainteed sash pivot bar part number 26?353. This looks like the one identical to my picture? Do you have the Certainteed window lock assembly like the one shown in the picture looks like part of the lock fits in that groove in the sash. Do you have the Certainte ... (cont.)

Can you tell me what parts I should purchase?

I am in need of replacing (2) CertainTeed window Pivot Shoes, Old Style. (2) CertainTeed Coiled Springs, 3/4 Wide. (2) CertainTeed Lance Spring Covers, Wide. Basically, the top part of my CertainTeed Double pane tilt window is, extremely, difficult to raise up and down. I would like to replace a ... (cont.)
