Certainteed A186160 pivot bar receiver with a number 9 imprinted on spring

Handy Person from Dundee Oh
I am looking for quite a few of the pivot bars, receivers and coil springs
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. I am fairly confident we can help, but we'll need pictures of each item you are looking for, preferably removed from the window. We'll do our best to help from there.

Handy Person from Dundee Oh

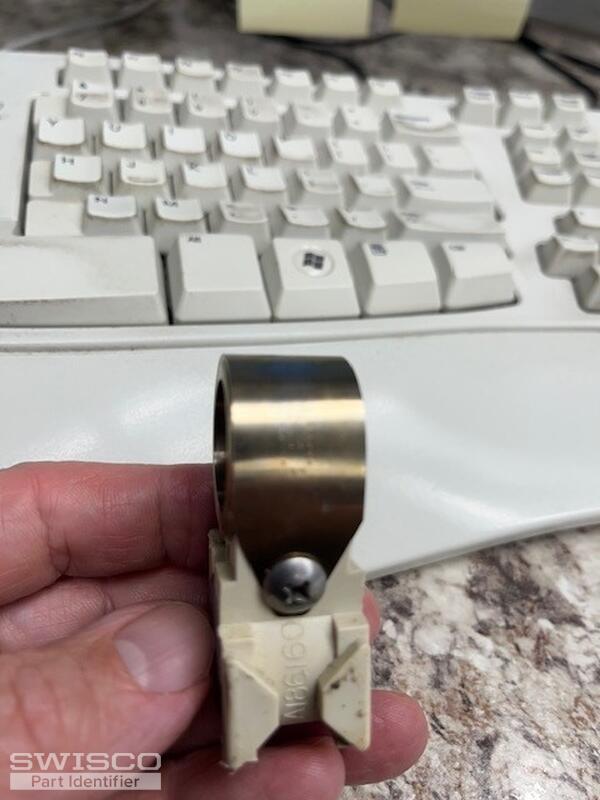

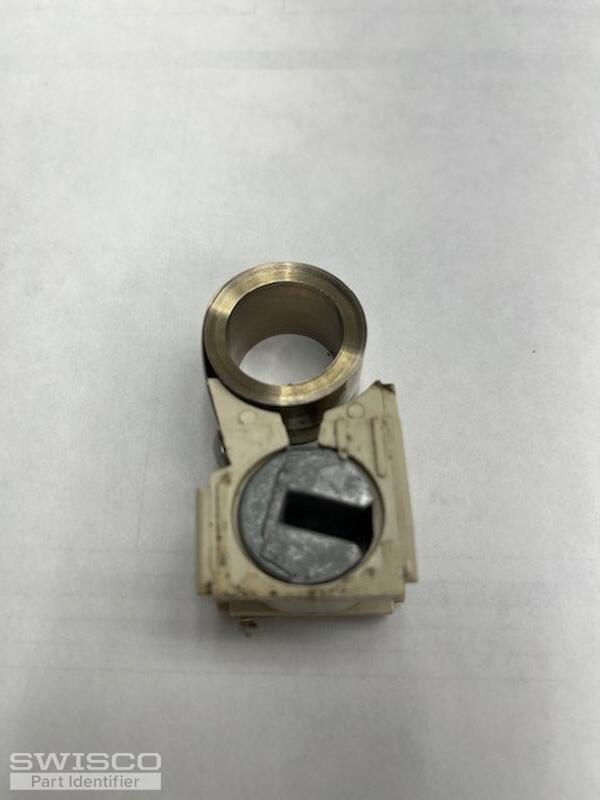

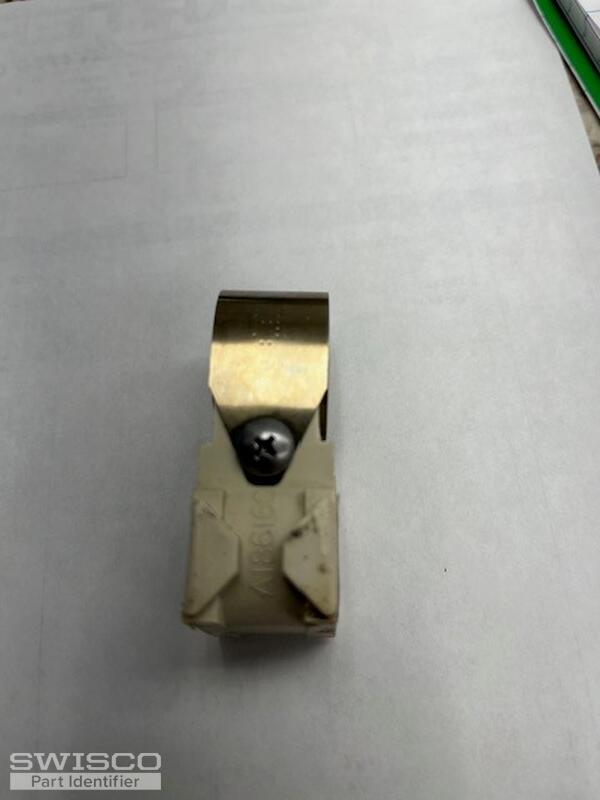

Spring has a 9 stamped in dots
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for these photos. This is the 15-192 Pivot Shoe and Series 170 Coil Balance. The issue is that stamp could really be either a '9' or a '6'--yes, they really didn't think to help us figure that out from the stamp. What I would do is weigh the window sash this setup supports. If the sash weighs within 1 pound of 12 pounds, then the stamp is meant to be a '6', and you can use the S170-406 6 pound spring. If it is within 18 pounds, then you need the S170-409 9 pound spring. Let me know if you have further questions.
