Certainteed casement window

Home Owner from Berwyn, PA

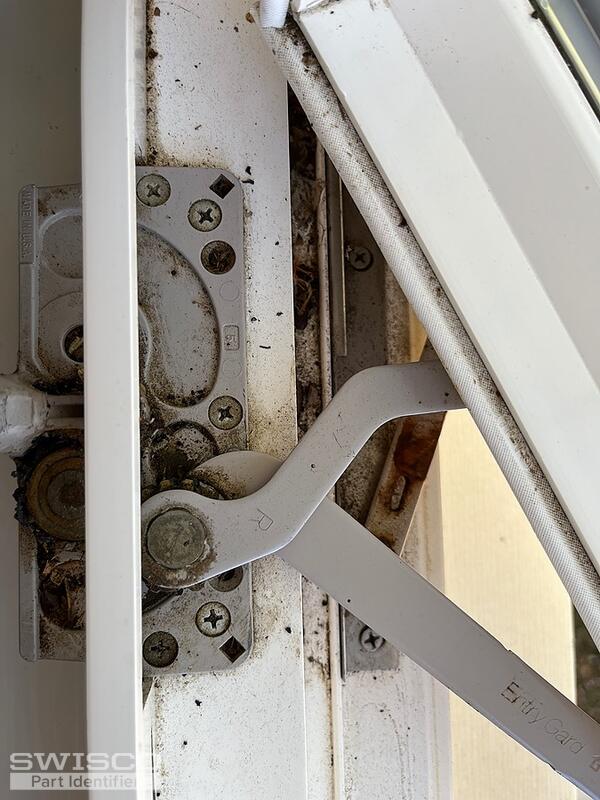

The window will no longer crank shut. I can crank it open.

platform attached to the sill is 5". The arm is 9 1/2". It is a Certainteed replacement window about 20 years old. Are there parts for this window?
4 user uploaded images
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Please start by reviewing the style and dimensions of the 39-032 and 39-031 or the 39-156 and 39-155 operators. The main difference is the length of the short link arm that is being covered by the sash in the photos. Please review the overall dimensions and orientation to confirm the best fit!

Also see the 39-107 cover and 39-114L handle. Let us know if you have any additional questions!

Dimensions for 39-032
Dimensions for 39-032

Dimensions for 39-156
Dimensions for 39-156

Home Owner from Berwyn, PA
Thank you. You've helped me immensely!!
Lauren
Lauren from SWISCO
SWISCO
Expert

No problem! Please let us know if you have any future hardware questions.
