Chanel balance is broken

Quick Learner from IL 60074
Chanel balance is broken, window sash can't hold
2 user uploaded images
6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

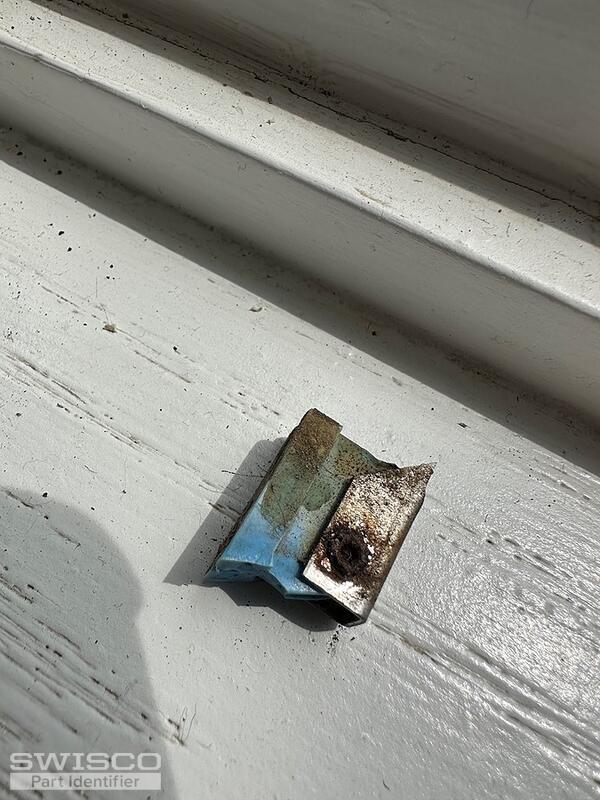

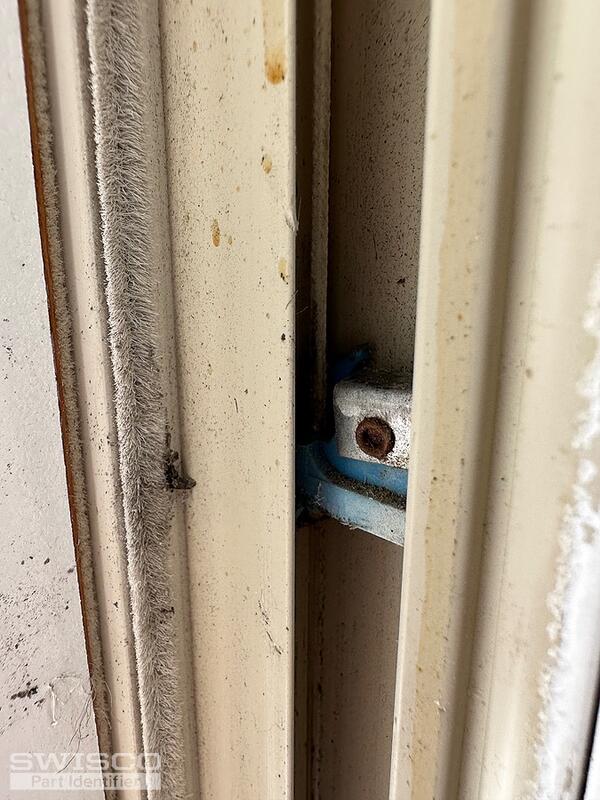

It's tough to make out what you have from these photos. What I can see is the knife lock shoe, which, while damaged, looks similar to our 15-014

Assuming this is correct then there is a good chance that you have our Series 751. Right now that's my tentative guess; your next step should be to remove an undamaged version of your balance (knife shoe and all) and carefully compare it to our Series 751. Note the design of the channel, shoe, and everything else and let me know if they differ in any way. We have other options.

Close up view of the S751 balance shoe.
Close up view of the S751 balance shoe.

Close up view of the S751 balance top.
Close up view of the S751 balance top.

Quick Learner from Illinois
Per last conversation, I was suggested to use 751 channel balance.

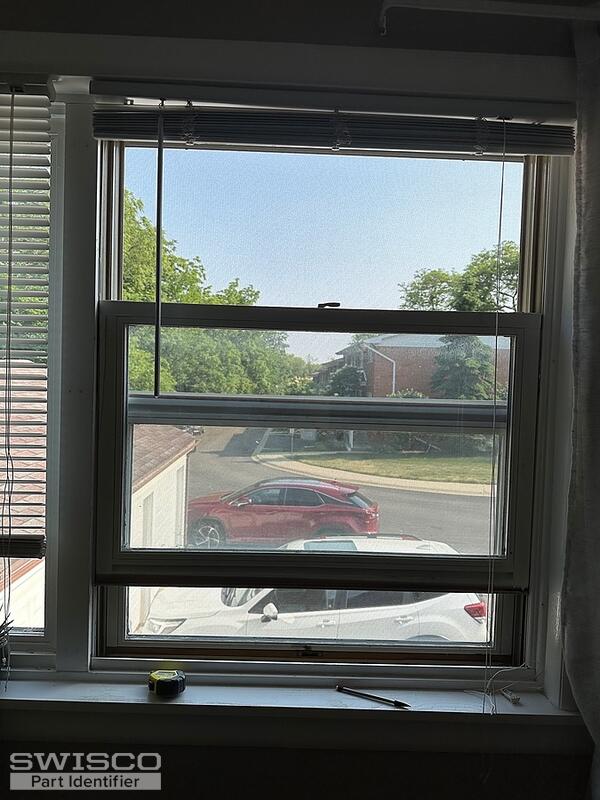

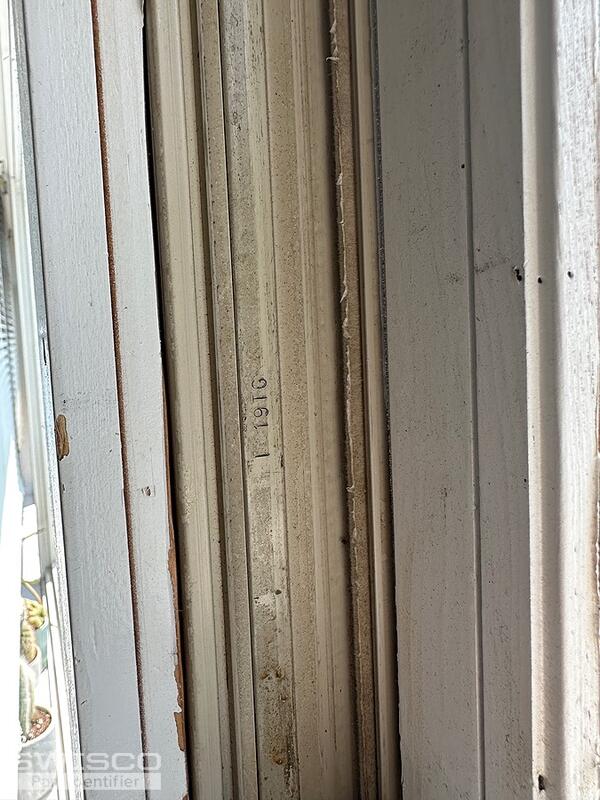

I measured the track size is 44", on side of track, there is "19TG", which seems model number.
What size shall I buy?
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

If the stamp on your old balance is 19TG, then the length should be 20", not 44". That's a huge disparity. I highly recommend that you check the size just to be 100% sure. Make sure you're only measuring the balance itself, not the jamb liner in which it's installed.

Quick Learner from Illinois
You are right, I measured Jamb liner height. Since I have not uninstall window and take the track off, so I guess 20" is right length for balance. Thank you so much for help. I will order soon.
Tom
Tom from SWISCO
SWISCO
Expert

You're welcome! Please let me know if we can be of any further assistance.
