Channel Balance

A quick learner from Waco says:

December 7, 2019

16 year-old home. Non-tilt metal windows. Unknown make but assume Alenco since my top sash guide matches your catalog part. My balance (9/16" x 28") matches your picture for S395 but my bottom shoe is 1 3/16" deep instead of 1 1/8". Should I assume difference is due to wear?

Thumbnail of the uploaded file named 16AD7945-7EFA-46B9-9855-F368C2ACD9B8.jpeg

Thumbnail of the uploaded file named BA69E129-96E0-4B81-9C76-8BEA05B20EF8.jpeg

Thumbnail of the uploaded file named 787F6235-B41C-42B7-845D-9379975D79BC.jpeg

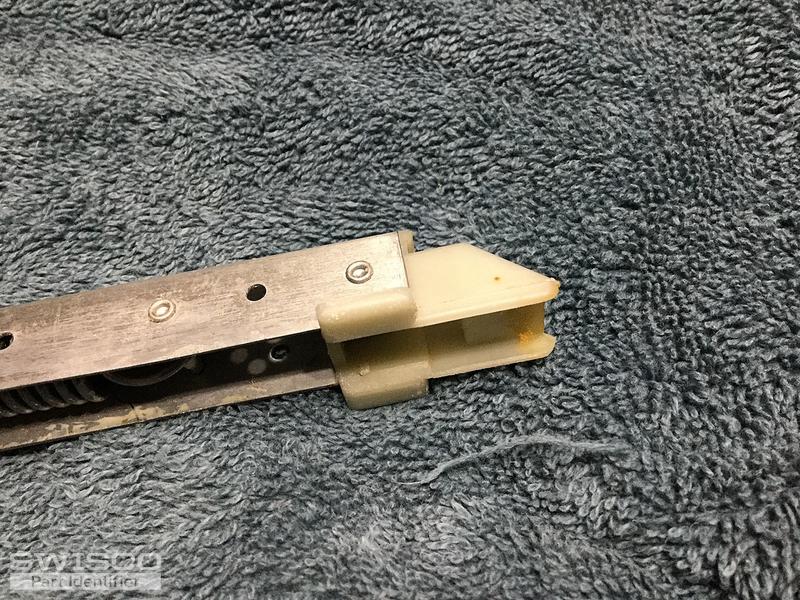

Thumbnail of the uploaded file named 7518D808-6814-4052-A600-A5CDA4501FE2.jpeg

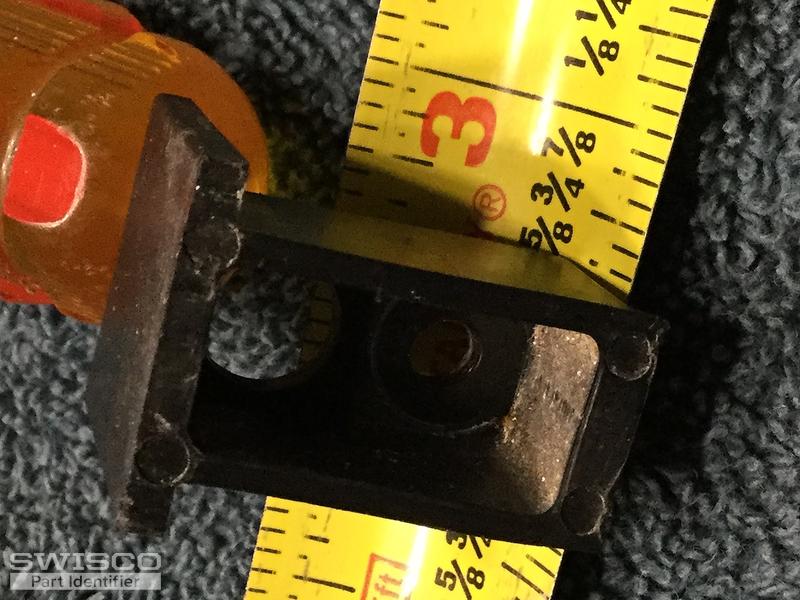

Thumbnail of the uploaded file named 24006983-0B2A-430C-B921-777C2C16722F.jpeg

Paul from SWISCO responded:

December 13, 2019

You have an Alenco window that uses our 18-174 top sash guide and S395-28 balance. Our bottom balance shoe is slightly deeper than the original, but that is caused by wear and tear. Take a look and see what you think. If it looks like it will work then you can go with the 2730 option that holds a sash weight range of 13-19 pounds.

5/8" Top Sash Guide, Alenco

18-174

$1.96

28" Series 395 Channel Balance

S395-28

$10.45
