Channel Balance

A home owner from Sacramento says:

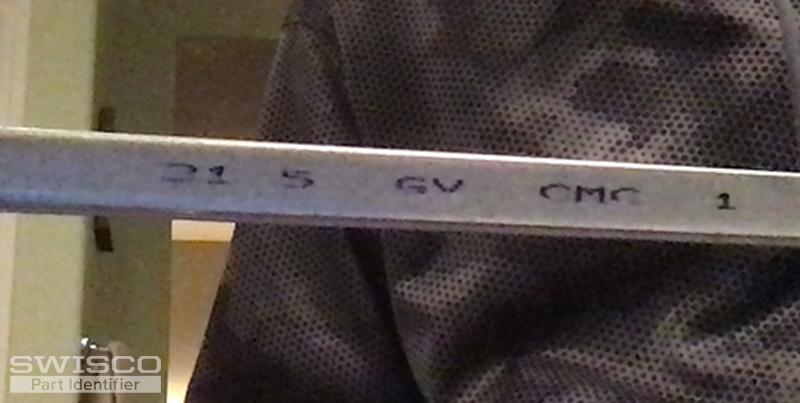

The length of the balance is 32 inches. The marking (represented in the photo) is 31 5 GV CMC 1. The other balance has the markings 31 5 JV CMC 2.

Thanks,

Erik

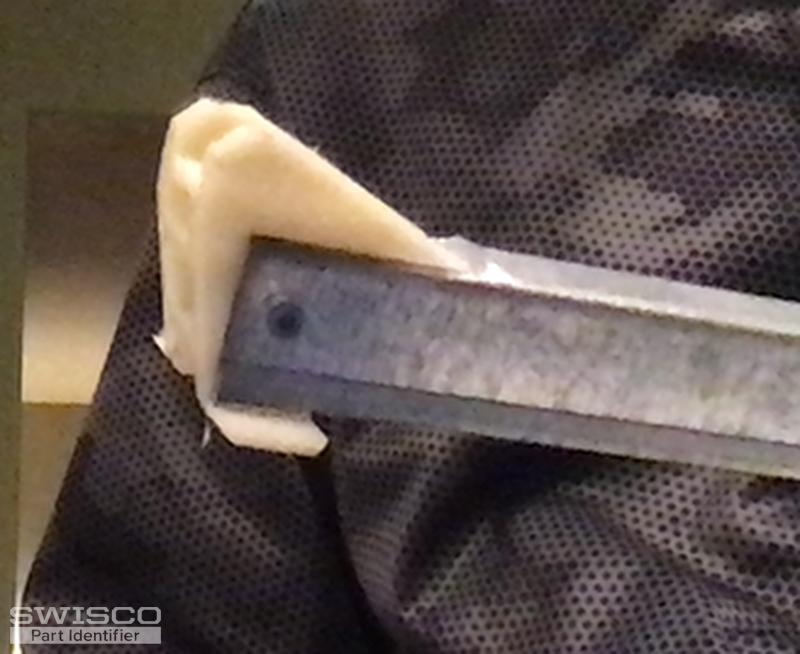

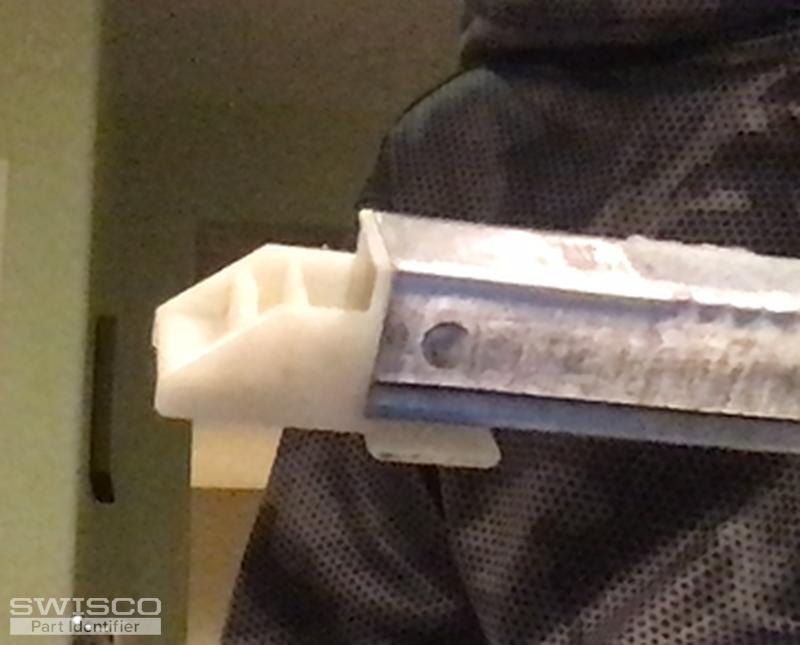

Thumbnail of the uploaded file named webcam-5/11/2020, 8:23:24 PM.png
Thumbnail of the uploaded file named webcam-5/11/2020, 8:23:55 PM.png
Thumbnail of the uploaded file named webcam-5/11/2020, 8:24:33 PM.png
Profile picture of Bob
Bob from SWISCO responded:

This looks like either an S380-32 or S385-32. The only difference between these two balances is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You'll need a stamp option of 3150.
