Hello,
I am looking to replace channel balances on 2 windows bottom sections only. Both windows are the same size. Both windows require replacement of right and left side balances. Current balances are stamped 2740.
Window weighs approximately 22lbs

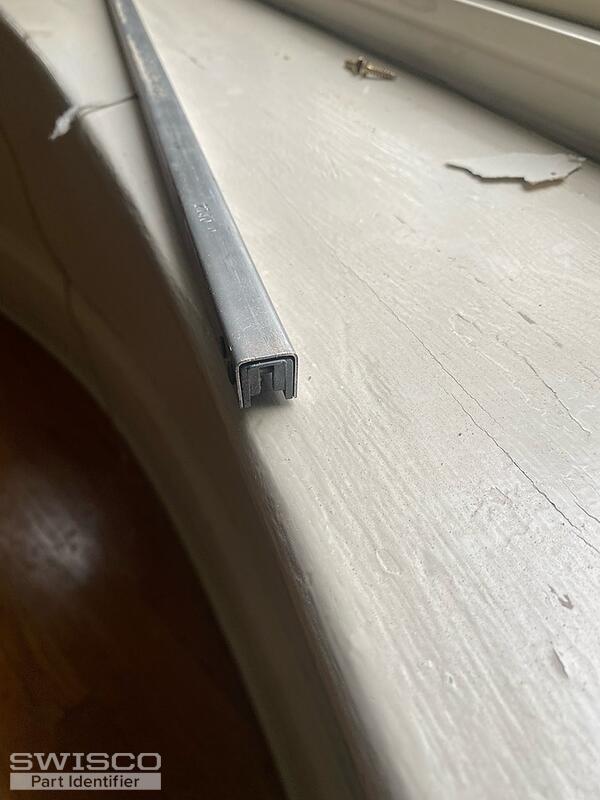

Each channel measure approximately 9/16" deep by 1.25" wide. Let me know what other information I need to provide.Leo
|
Tom from SWISCO responded:
September 14, 2022

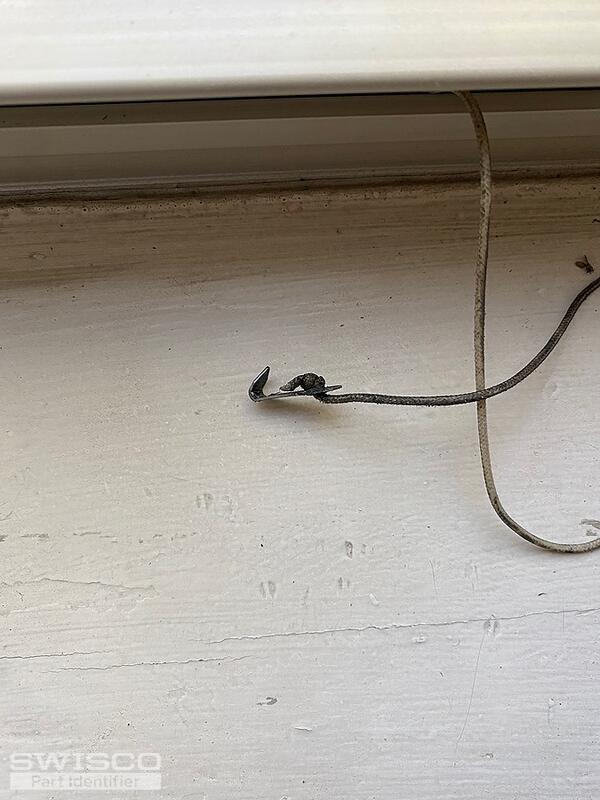

Hello, Leo. I believe we can supply these balances, but based on what I see in your photos it will have to be a custom configuration. To sum it up, I believe you have our Series 770, but with a 62-105 hook at the end of the cord instead of a terminal clip. Does that look good to you? If so I just need to clear up a few details before we can get the ball rolling on a custom order. To begin with, can you confirm the length of the metal channel itself? I am not certain at this stage if it's 27" or 28". Can you also confirm that you only needed 4 of these? Once I have that information, I will email you a purchase link and price quote that you can use to place an order on our site. |
|
|
Tom from SWISCO responded:
September 16, 2022
Yep, that hook is the 62-105 that I mentioned. That will be installed at the end of the cord instead of the square terminal clip. We'll also be going with the 28C stamp based on your sash weight of 22 pounds; this carries 18 through 23 pounds, so it should be perfectly fine for your window. What I'll do now is email you a purchase link for four balances made with this configuration. You can use that to add the balances in question to your cart. The pivot shoe is our 15-105. This won't be included with the custom order link, as it is just a stock part, but you can add it to your cart directly from our catalog. That way you can checkout with everything at once. |
