Channel Balance 18 inch

A quick learner from Littleton, CO says:

I would like to order an entire new 28 inch channel balance with the exact inside fittings as shown in the 2 pictures (if possible). The windows are 22 years old. All other channel balances on my windows are fine. Also, please give me a quote for replacement cost.

Thank you

Larry

Thumbnail of the uploaded file named Window  1.jpg
Thumbnail of the uploaded file named Window  2.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help but we will need to see a photo of the attachment on the opposite end of the metal channel, as well as the stamp on your balance, to identify a replacement. Thank you!

A quick learner from Littleton, CO says:
The other end to the broken Balance is gone.
It will take me a while to take out the other Balance, so I can send a picture of the entire thing.

Thanks.
Profile picture of Casey
Casey from SWISCO responded:

No rush, whenever you're able to remove an undamaged balance, we'll be happy to determine the correct replacement for your window.

A quick learner from Littleton, CO says:

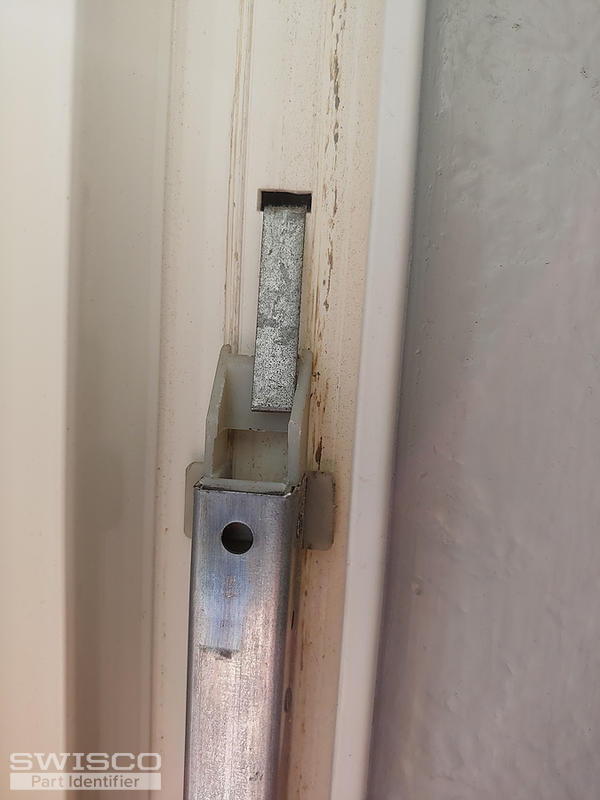

I didn't want to take the other Channel Balance off the window, so I took a picture of the top and the bottom,
which shows the number stamp on it.

Hope you're able to replace this. The broken one is on the left side of the window.

Thanks.
Thumbnail of the uploaded file named Channel Balance  Photo 1.jpg
Thumbnail of the uploaded file named Channel Balance Photo  2.jpg
Profile picture of Casey
Casey from SWISCO responded:

With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2730 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
