Channel Balance 25 4 CK Caldwell
Handy Person from Bellingham. WA USA
Jun 26, 2021 4:26 pm

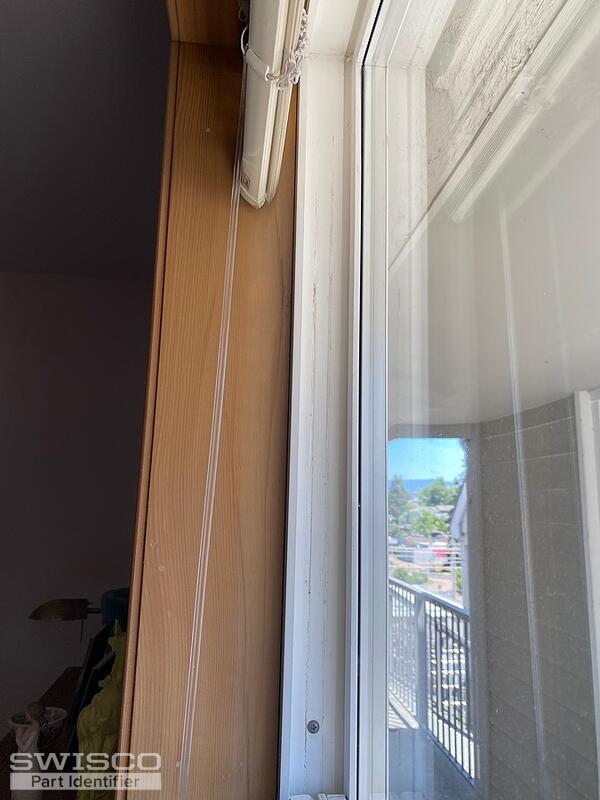

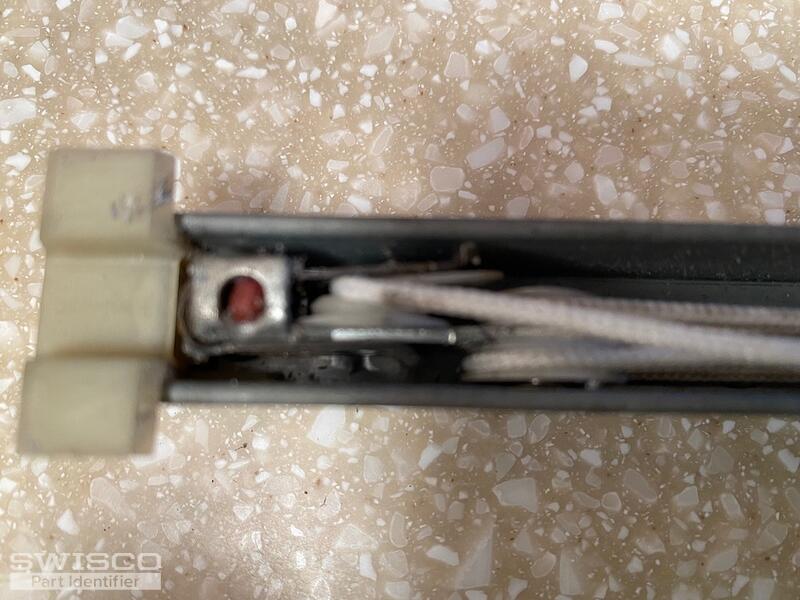

The channel balance pulley wheel is broken. I would like to replace channel balances on both sides. Photos included. Our windows do not include channel stops Metal channel measures 26 inches in length.
3 user uploaded images
3 Replies
Handy Person from Bellingham. WA USA
Jun 26, 2021 4:28 pm
Additional photos
2 user uploaded images
Emily from SWISCO
Jun 30, 2021 9:58 am
Hi there!
With this combination of attachments, you could have either an S380-26 or S385-26 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2540.
If you have any further questions just let us know.
Comparison of the S378, S380 and S385 balance shoes.
