Channel Balance

Start a new Discussion

Quick Learner

Jun 26, 2018 6:05 pm

28D USB

3 user uploaded images

4 Replies

Tom from SWISCO

Jun 27, 2018 9:12 am

I'm leaning toward S380-29, but I need to verify. How long is the metal channel, and which of the bottom attachments below do you have? 1", or 1-3/32"?

Comparison of 15-004 and 15-005

Quick Learner

Jul 5, 2018 6:41 pm

Hi,

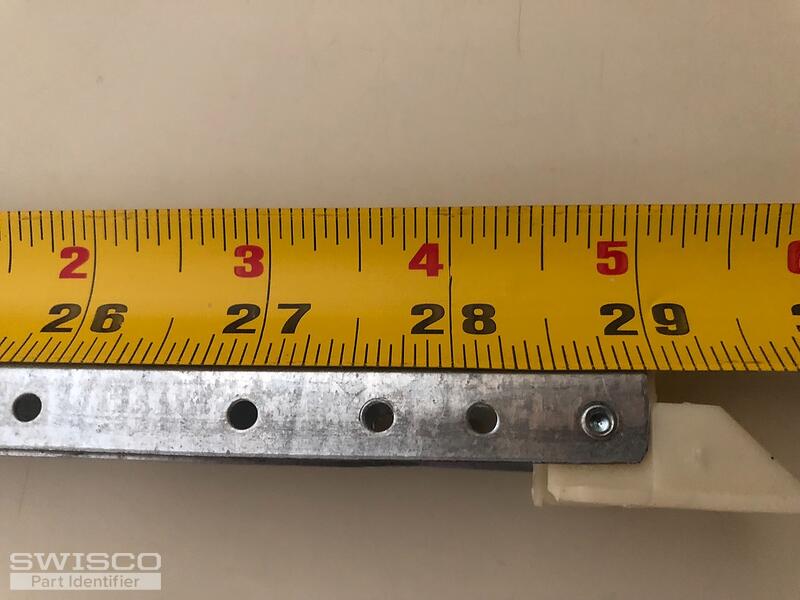

The channel metal: 29?

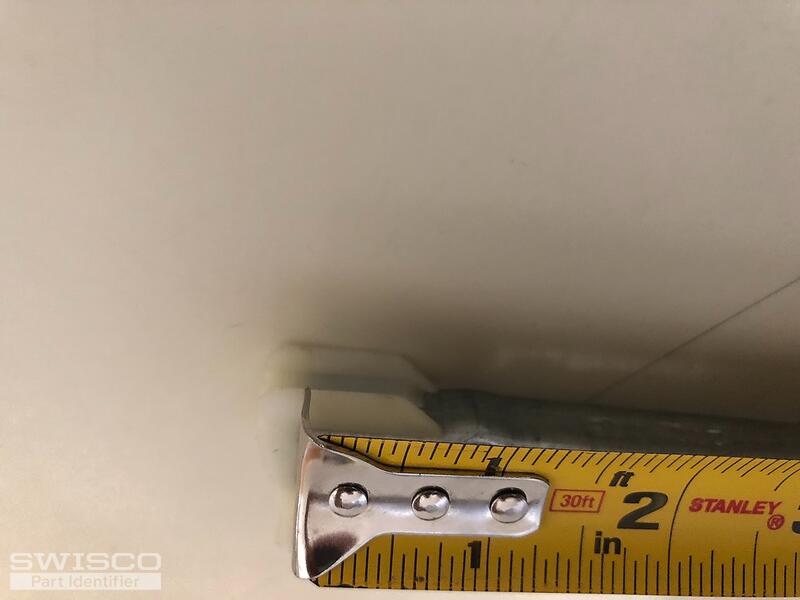

The bottom attachment: 1?

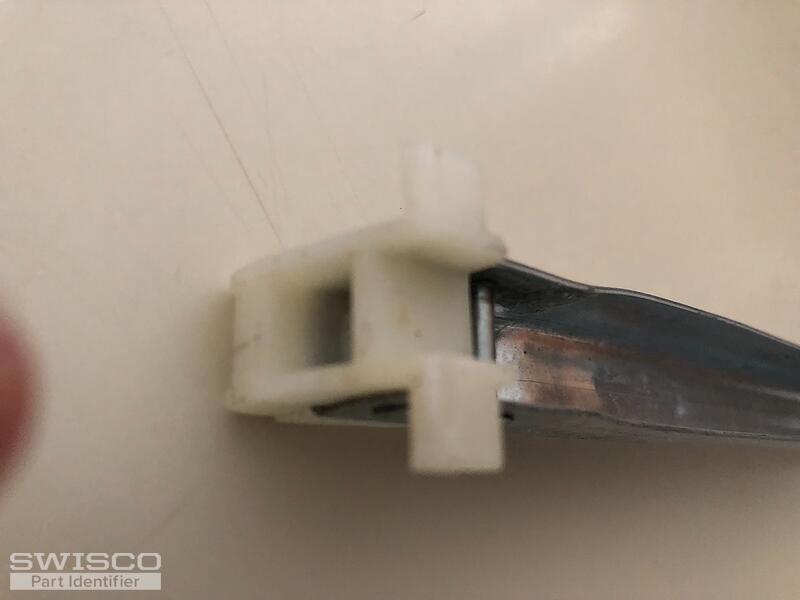

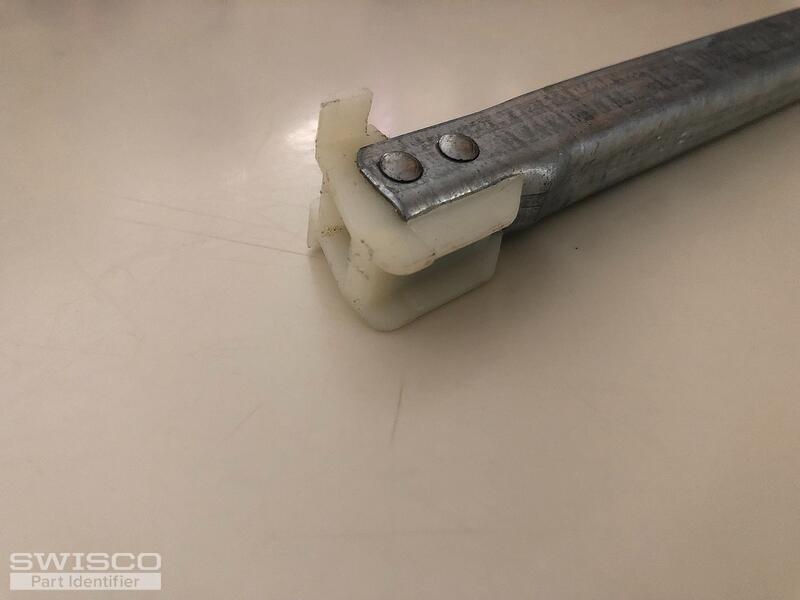

The bottom attachment look different like my piece look. I attached some pictures more.

Thank you,

Pedro

4 user uploaded images

Tom from SWISCO

Jul 6, 2018 8:36 am

If your bottom shoe is 1" from front to back, I wouldn't worry about the shape. Different manufacturers make the same balances with slightly different attachment shapes. The differences don't change how the balance works, though. You should be fine using the S380-29.
