Channel Balance

Question

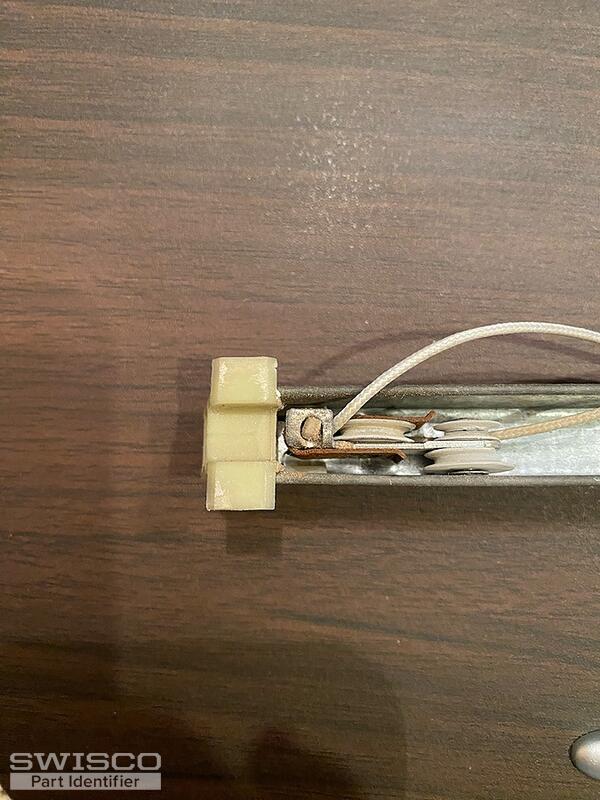

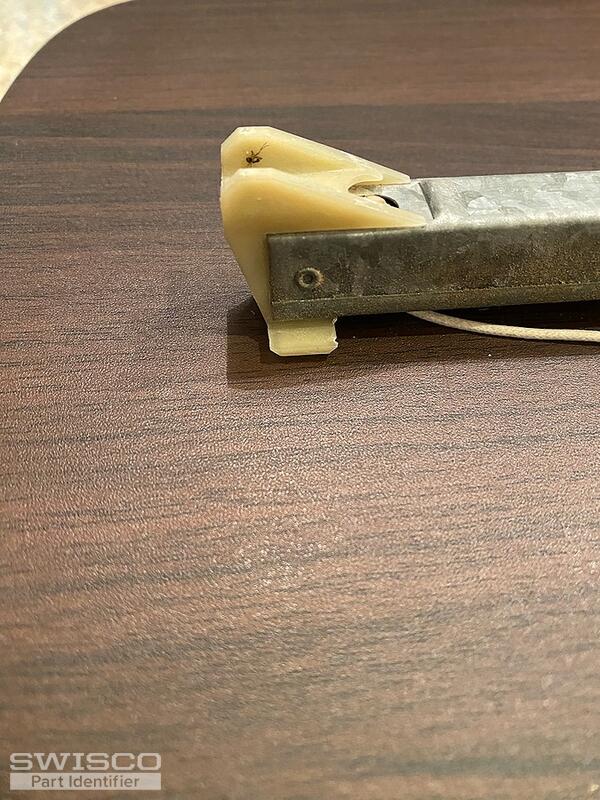

Please help to identify the part I need.  The stamp on the one that I have is 25 3 GP CALDWELL.  The length is 26 inches. Thank you for your help!

Bob · Accepted Answer

Thanks for posting. It looks like you have either a S380-26 or S385-26. The only difference between these two channel balances is the depth of the bottom nylon shoe, or the measurement from 'heel' to 'toe'. See the illustration below. Compare both with your old balance to see what matches best. In either case, for a stamp option go with 2530.

Comparison of the S378, S380 and S385 balance shoes.
