Channel Balance Identification

Quick Learner from Bartow, Fl

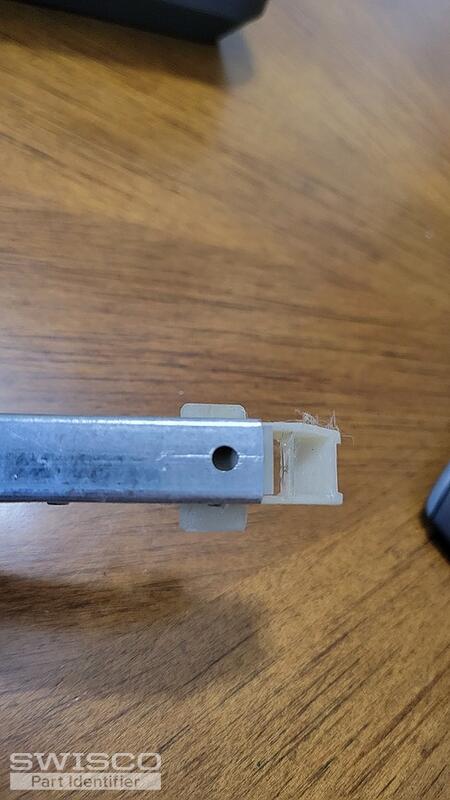

I'm looking to make sure I get the correct window channel balances. Please let me know as I need to replace as soon as possible.
4 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. This looks like it might be the S380-35 Channel Balance, but check the depth of the bottom nylon shoe. The depth can be thought of as the 'heel-to-toe' measurement. See the diagram below for reference. If the depth is 1", you indeed have a Series 380; however I think there's a chance your shoe's depth might be less than that, at 7/8". We don't carry a stock channel balance with a shoe depth that size, but can provide it for you via custom order. We'd just need to know how many channel balances you need to get started. Many thanks.

Detail of 26-398
Detail of 26-398
