Channel Balance Identification

Question

I'm looking at the series 795 chart. Is that the correct chart?

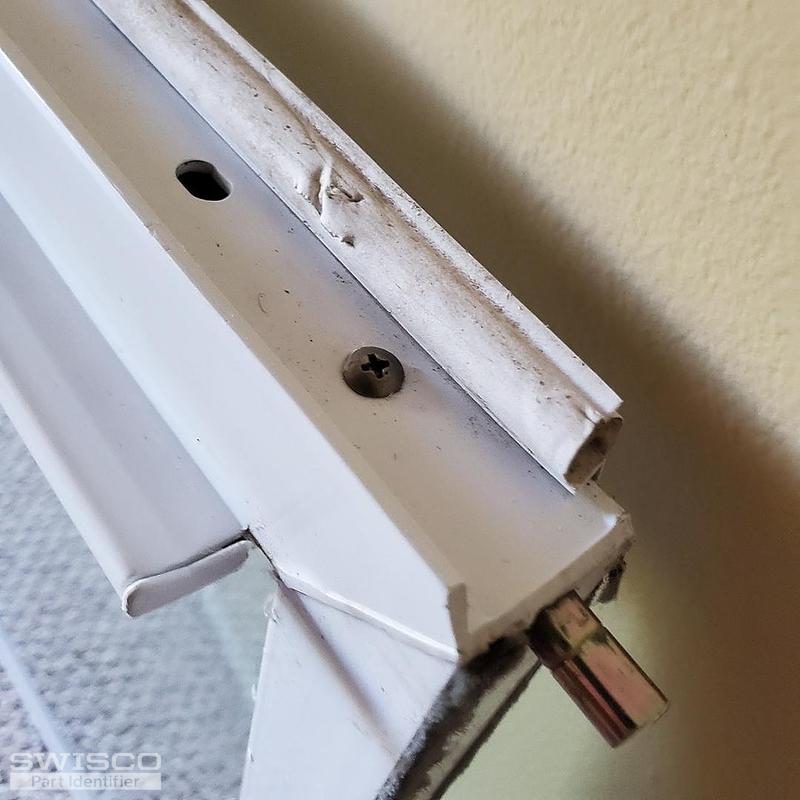

Sash weighs essentially exactly 30 lbs. That is a dividing line on the 795 chart. I'm assuming that I move up in weight?

Channel itself measures 27" in length.

Stamp on channel does not seem to match anything on the 795 chart.Looks like
26 9BSI RL (?)

I'm going to order 2 of these channel balances.

Bob · Accepted Answer

I agree this looks like an S795-27. Coming across these balances with different stamp rating systems is not unheard of. If the sash weighs exactly 30 lbs, you could use either a stamp option of 27E or 27F; if it weighs less than 30 lbs, go with 27E.

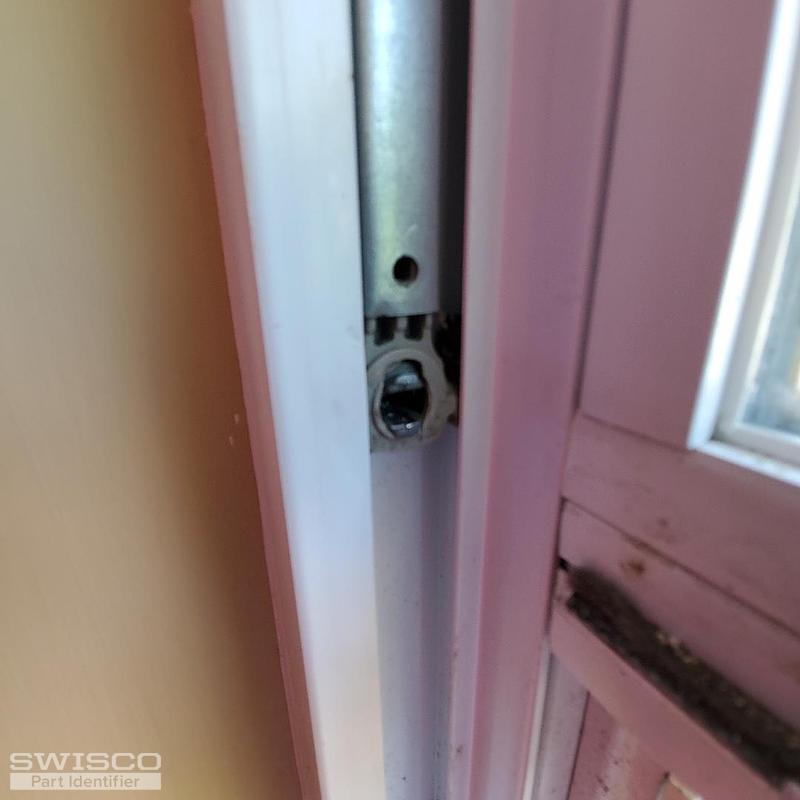

Finally, just make sure your balance's T-Lock Shoe is either closed cam (meaning you can't see through the back of the metal cam) or open cam (you can see through it). If it's an open cam, you'll need our 15-195B sold separately.
