Channel Balance Needed for Plygem Vinyl Windows

A home owner from North Carolina says:
May 16, 2022
Markings:

Series: Twinseal Single Hung
H-R25-46x77
H-R50*-35x61 (MODIF)
H-R50*-32x74 (MODIF)

I wanted to confirm my selections:
26-200 screw plug
26-366 pivot bar
26" series 795 channel balance

Thank you

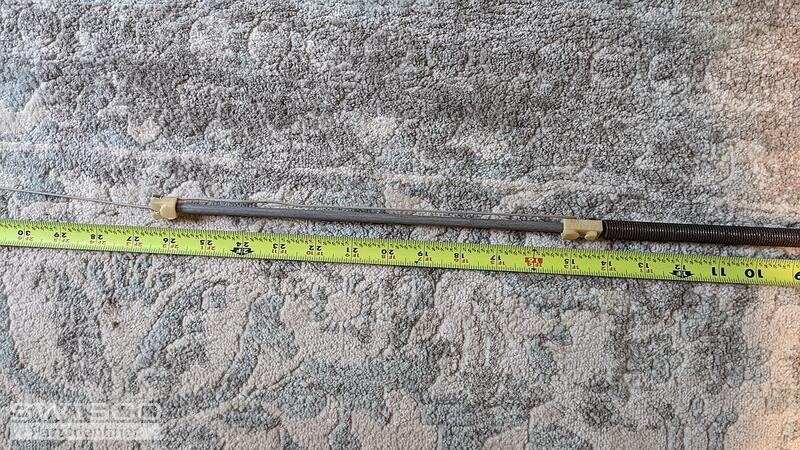

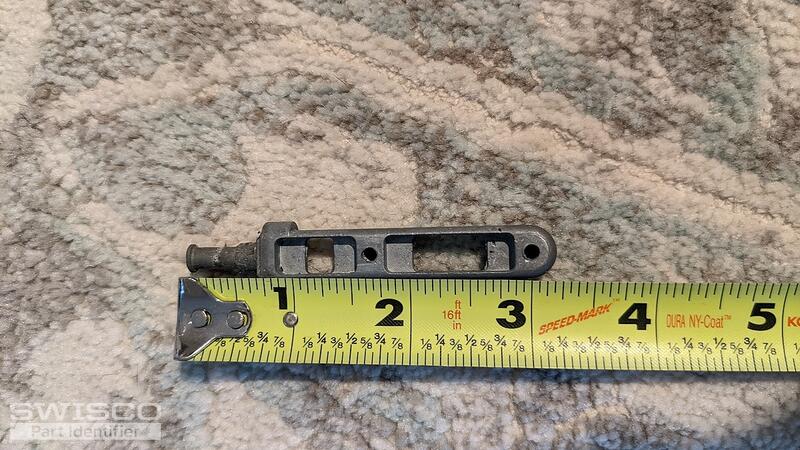

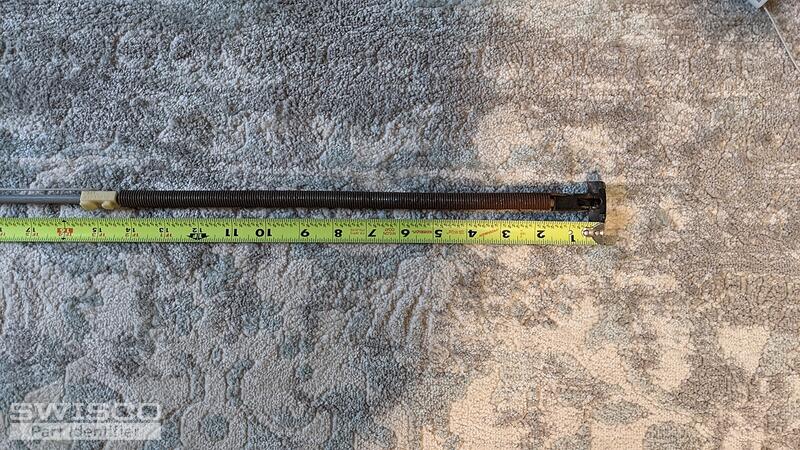

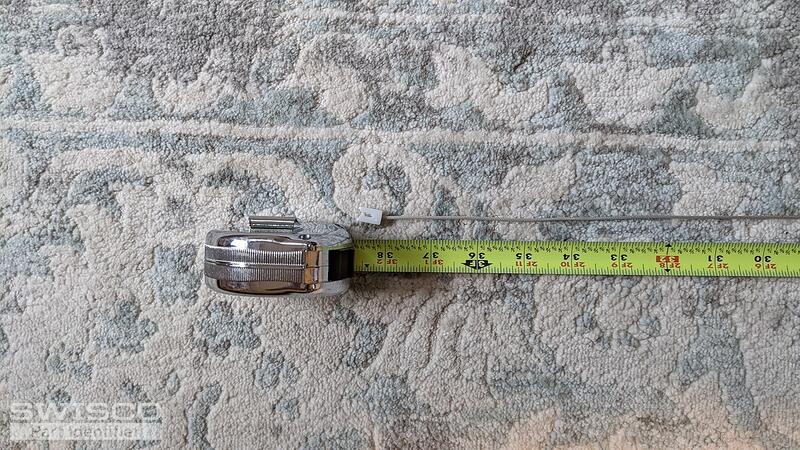

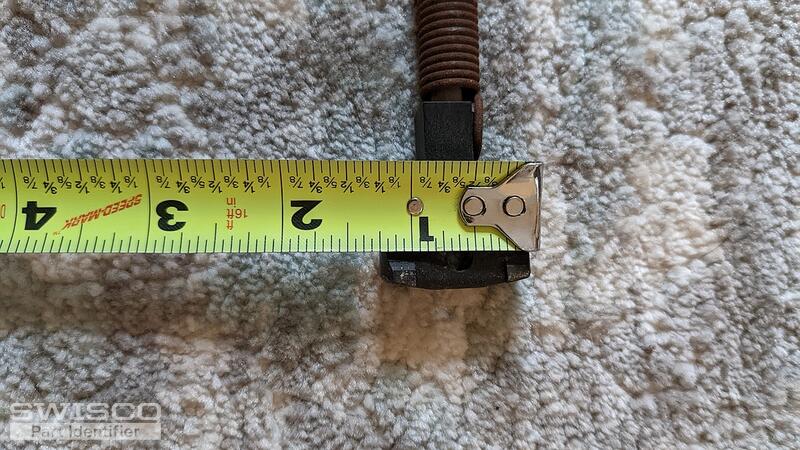

Thumbnail of the uploaded file named PXL_20220516_233908501.jpg
Thumbnail of the uploaded file named PXL_20220516_233655664.jpg
Thumbnail of the uploaded file named PXL_20220516_233642984.MP.jpg
Thumbnail of the uploaded file named PXL_20220516_233648998.MP.jpg
Thumbnail of the uploaded file named PXL_20220516_233720674.MP.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 18, 2022

 Thanks for reaching out to us! I'm afraid I don't know what your question is. It sounds like you found all the parts you needed. Was there anything specifically you wanted to know about them before you placed an order?
A home owner from North Carolina says:
May 18, 2022
Tom,

Thanks for reviewing. I just wanted to make sure the items I selected were accurate.

Can you tell me what size/length screws are typically used with the balance plug and the pivot bars?


Thanks
Profile picture of Tom
Tom from SWISCO responded:
May 18, 2022

Sure, you want to use a #8 screw for both. The 33-016 is compatible in each case, but keep in mind that the length may need to be different for the pivot bar. I recommend reusing the old screws to be safe.

Also note that you may need to drill new holes for the 26-366 to be compatible with the new balance. The tip on the new style is a little shorter than the original.
A home owner from North Carolina says:
May 18, 2022
Thank you for your assistance. Based on research I also came to the same conclusion that the pivot bars may need new holes drilled.
