Channel Balance Replacement

Question

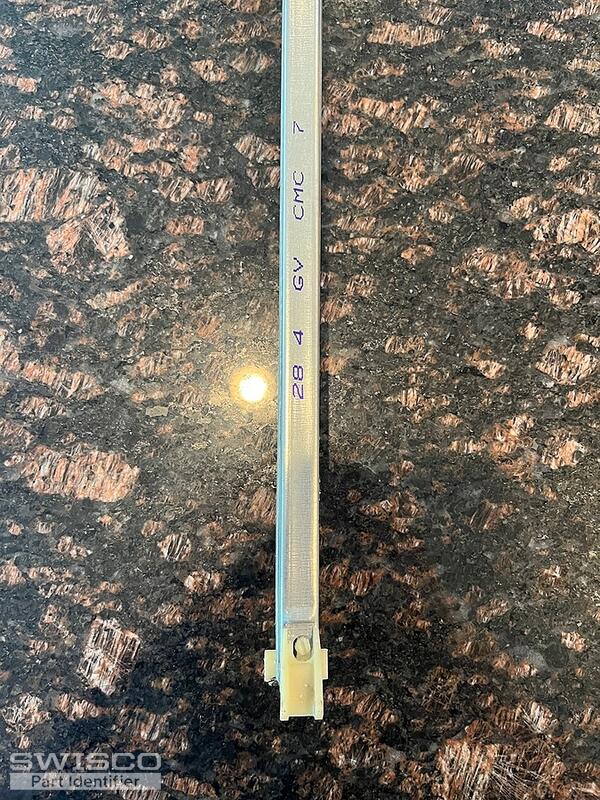

Looking to confirm adequate replacement part number. Existing window is non-tilt, channel width is 1/2 inch, length is 29 inches, and bottom shoe is 1 inch deep. Is Series 380-29 with Option 2840 correct?

Jasmine · Accepted Answer

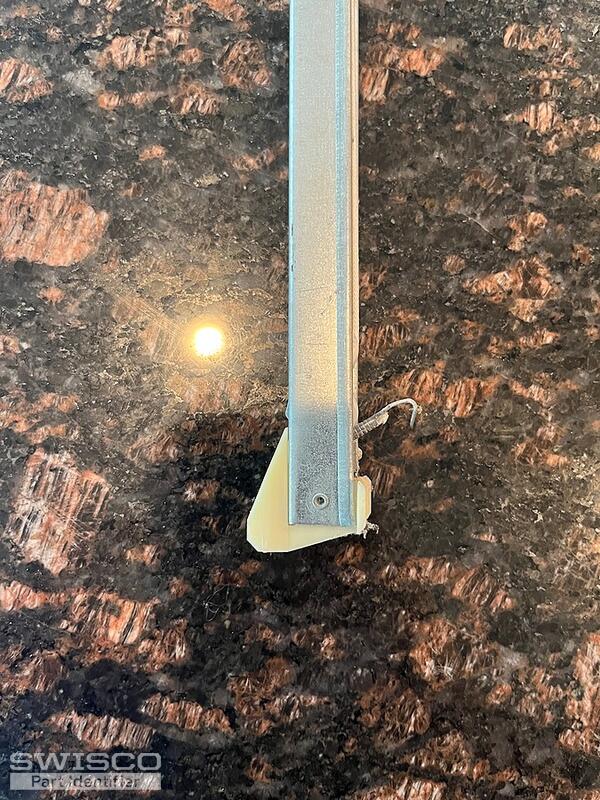

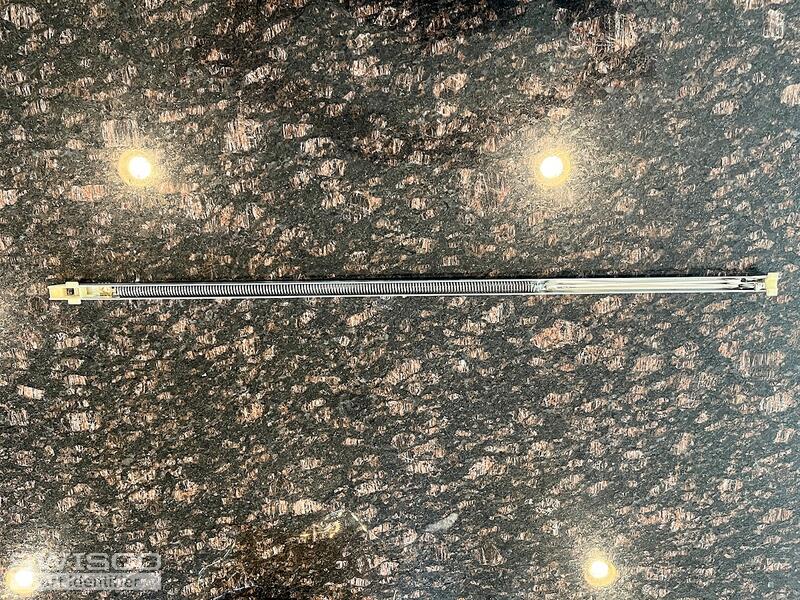

Thanks for writing in! It is very likely the S380-29 may be the balance needed for your repairs. I'll just need to see a photo of the bracket connecting the spring and the string to confirm. May I see a full view of the balance from the spring side of the channel?

The 2840 would typically be the option we suggest but it would be a good idea to double check that the sash weight falls between 23 to 28lbs.

Pleas feel free to reach out with any other questions you might have.
