Channel Balance Replacement for 27-5 LX CMC 11

Quick Learner from San Francisco, CA

May 20, 2023 4:24 am

Hi I need to replace a number of my channel balances. They are stamped with "27-5 LX CMC 11". I took pictures of the channel balance with the measuring tape so you can see the length. Please help me confirm that 28" Series 380 Channel Balance will work for me.

Thank you,
Jon

4 Replies

Casey from SWISCO

May 23, 2023 8:38 am

Hello,

We'd be happy to help but, unfortunately, your photos did not come through. If you could resend them and include a clear view of both end attachments, we can go from there. Thank you!

Quick Learner from San Francisco, CA

May 24, 2023 6:58 pm

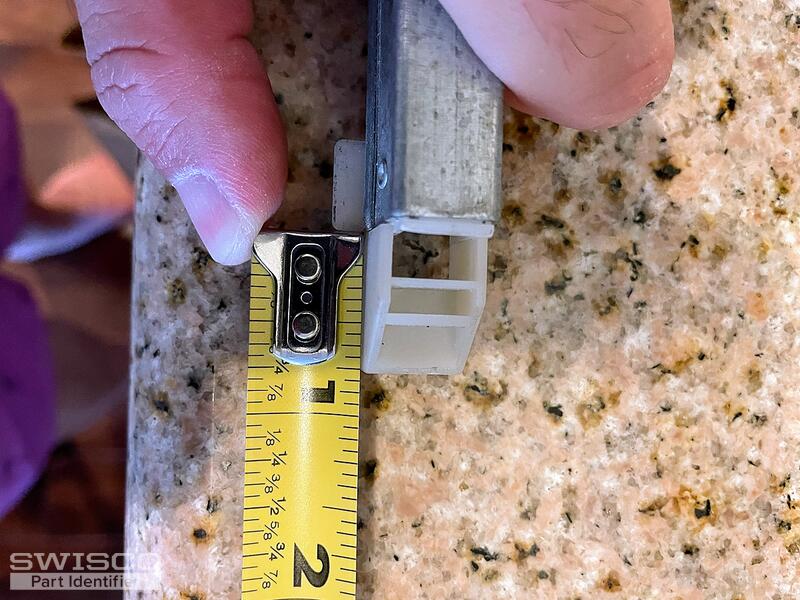

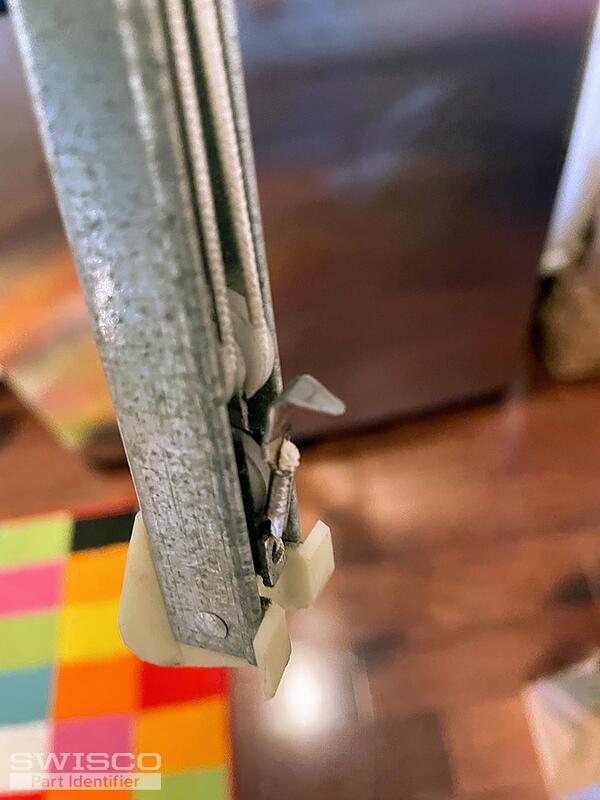

Not sure what happened with the file upload. Here are the pictures again.

5 user uploaded images

Casey from SWISCO

May 25, 2023 8:19 am

Thanks for getting back to us. With this combination of attachments, you could have either the S380-28 or S385-28 channel balance. You’ll need to measure as shown below to confirm the correct replacement since it's tough for us to get accurate measurements from photos. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2750 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
