Channel Balance Replacements

A home owner from Oregon City Oregon. says:

Hello! My name is Chuck Watson and I am need of (2) identical channel balance assemblies. And wanted to be certain to order the correct assembly. Photos of the Channel Balance included. Metal channel (only) length is 32" with stamp 3130. Looks to have "Channel Balance Top Winged 19-005. And Winged Channel Balance Shoe 15-004.

I will also be wanting to order a dozen Top Sash Guides 18-008 or 18-008H It doesn't matter which as I have both kinds in my windows with the slotted top hole not used. Plus 6 "Take Out Clips" 16-002 as long as I am ordering parts.

Thank You in advance for your help.

Chuck

Thumbnail of the uploaded file named image1.jpeg
Thumbnail of the uploaded file named image2.jpeg
Thumbnail of the uploaded file named image3.jpeg

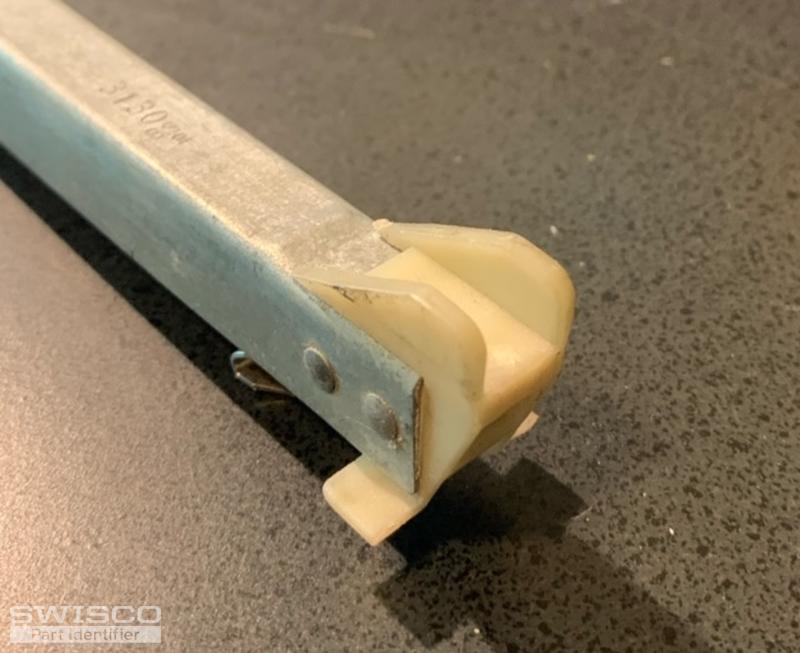

Thumbnail of the uploaded file named image4.jpeg

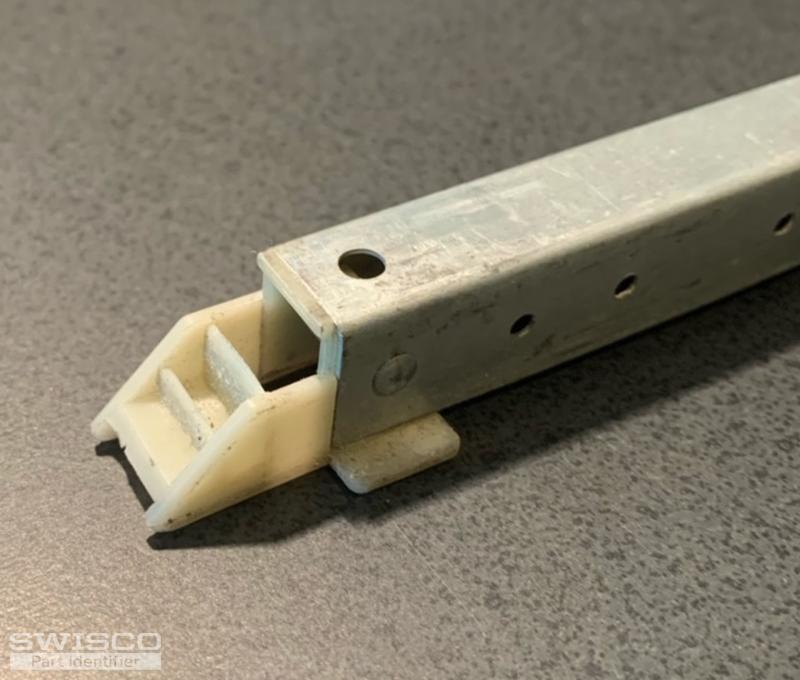

Thumbnail of the uploaded file named image5.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hi Chuck,

If you're certain that your bottom attachment has the same 1-3/32" depth of the 15-004, I would recommend you take a look at our S385-32 with a 3130 spring strength option. Take a look and see what you think. Thanks for posting!

A home owner from Oregon City Oregon. says:

Hello Casey,

Thank you for your reply.

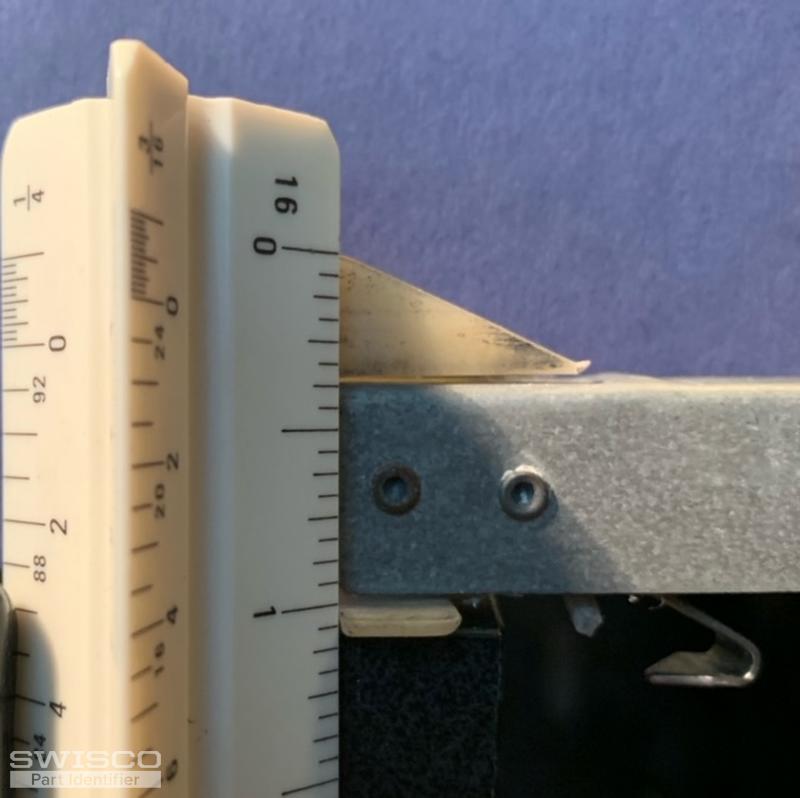

It appears that the picture of the shoe measurement did not transmit with my initial inquiry. As you can see (if the picture sends this time) the shoe is definitely not the 1" shoe depth. So it must be the 1 3/32"

I will place my order for the S385-32 with the 3130 spring. Unless you see the shoe differently.

Thank you for your assistance.!!!

Chuck

Thumbnail of the uploaded file named Balance Shoe.png
Profile picture of Casey
Casey from SWISCO responded:

I agree that the S385 would be the way to go as long as the depth is over 1". Photos can be deceiving so I try not to interpret my own measurements but it does look like your attachments would be a match to the 15-004

A home owner from Oregon City Oregon. says:
I concur.

Thank you for your help.

Chuck
