Channel Balance Shoe

A quick learner from CA says:

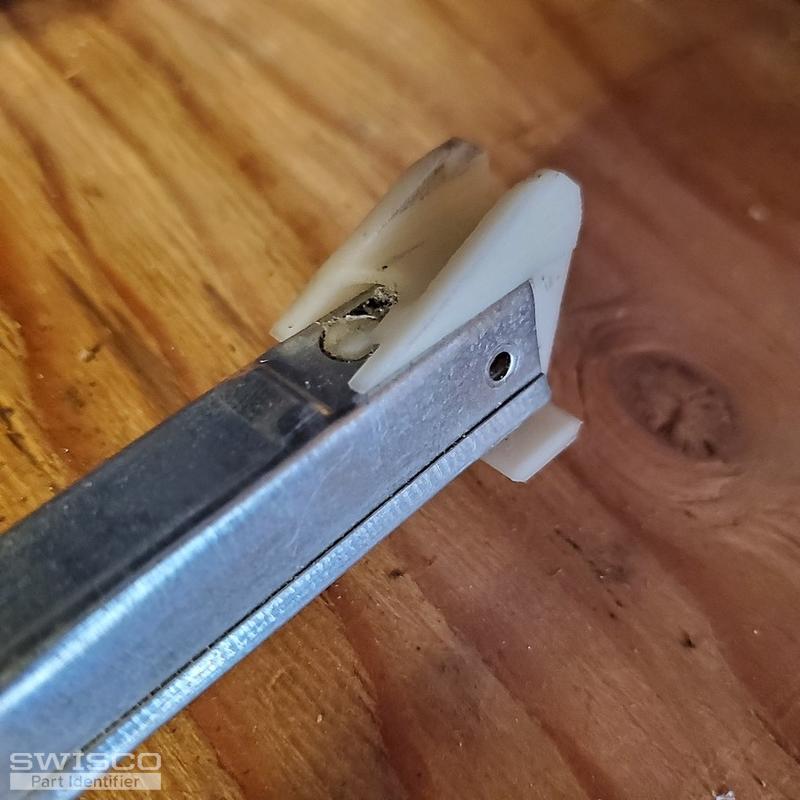

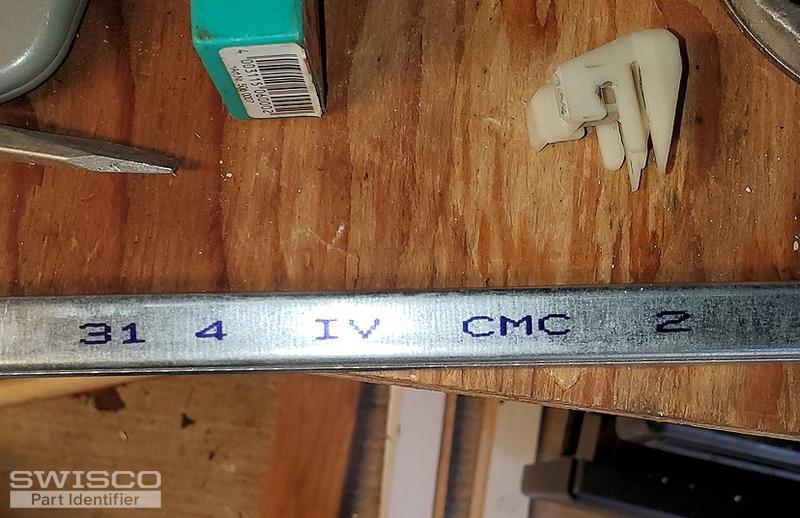

The park is a winged Channel Balance shoe. I've looked through your catalog, and it appears to be similar to the ones you have except for the fact that there is a gap in the middle of the slot that you slide the part on to. This is to make room for the spring holder clip. The ones I see in your catalog do not have this Gap that I can see in the pictures. The Gap is visible in the second to last picture where I'm holding it between my thumb and forefinger.
Thumbnail of the uploaded file named 20200126_134019.jpg
Thumbnail of the uploaded file named 20200126_134000.jpg
Thumbnail of the uploaded file named 20200126_133907.jpg
Thumbnail of the uploaded file named 15800752749371265358347717869078.jpg
Thumbnail of the uploaded file named 1580075436807709619571862861664.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. I wouldn't worry too much about slight differences in this case. This shoe looks like either our 15-005 1" Deep Shoe, or the 15-004 1-3/32" Deep Shoe. Compare the depth to know which matches your shoe. Frankly it's easier to replace your entire channel balance instead of riveting on new shoes, though if you were looking to do that we have a video that illustrates the process; see below. Otherwise, or if you need new balances anyway, it looks like you'll need either our S380-32 or S385-32, depending on the identity of the nylon shoe. You'll need a stamp option of 3140.
