Channel Balance Shoe

Quick Learner from Clayton, NC

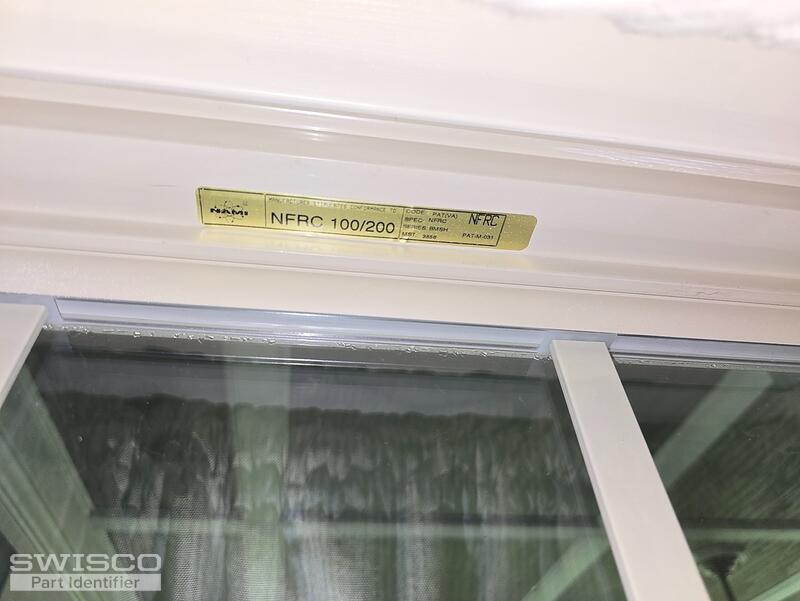

Looking for one Channel Balance Shoe for my stock single hung tilt window. I have attached the image of the broken Shoe and the only labels IO can find on the window. Please help me to identify the correct part.

Thanks,

John
4 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hi John, thank you for posting,

Unfortuantely we do not carry a match for your original curved T-lock shoe. The best we can offer is a full replacement balance.

We recommend reviewing the Series 795 channel balance with the 15-194 T-lock shoe. This shoe is only compatible with the Series 795 balance and not your original curved in channel. The shoe would need to be purchased separately and switched out with the stock shoe before installation.

Alternate view of 15-194
Alternate view of 15-194

To further review, are you able to provide the length of the metal channel along with the number/letter stamped on the channel? Please also confirm if it installs into the window with a hook at the top or a screw in clip. If it uses a hook, this configuration will require a custom order to assemble for you. Thank you!
