I think I need 35" Series 380 Channel Balance
Product Code: S380-35 Option 3460 or 3465. Could you please verify?

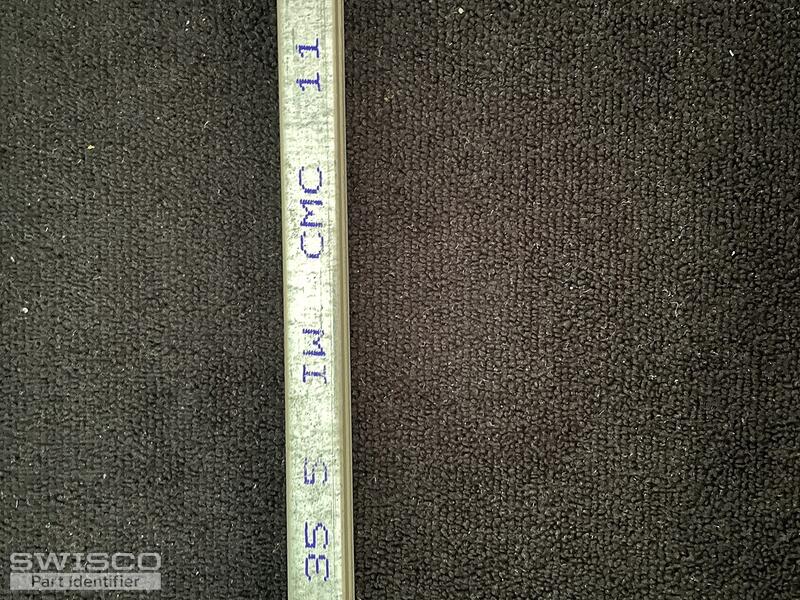

Channel has 35 5 IW CMC 11 on it
Channel Balance for Non Tilt Window Identification
Home Owner from Montverde, FL
Apr 14, 2024 4:33 pm
5 user uploaded images
4 Replies
Bob from SWISCO
Apr 15, 2024 11:35 pm
Thanks for posting. Close. A balance stamped 35-5 usually has a metal channel length (not including the end attachments) of 36". Please confirm. If so, you need either the S380-36 or S385-36. The only difference between these two balances is the depth of the bottom nylon shoe, or the measurement from heel to toe. See the diagram below for reference. Compare both balances with your old one to see what matches best. For the stamp option choose 3550. Let me know if you have any questions.
Comparison of the S378, S380 and S385 balance shoes.
Home Owner from Montverde, FL
Apr 16, 2024 11:02 am

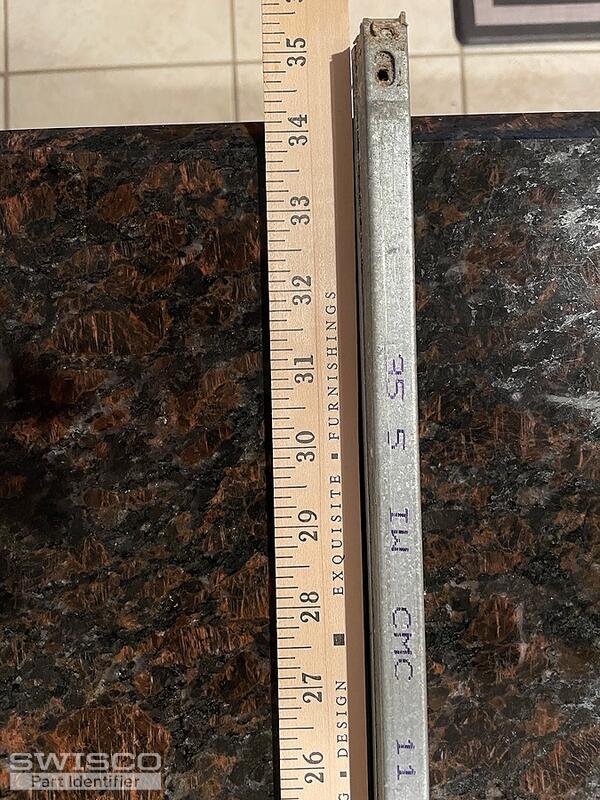

I rechecked the metal channel measurement (not including the end attachments)and it is definitely 35 inches. I attached the photo. The depth of the nylon shoe is 1 inch. The weight of the window is 30.5 pounds.
Based on this information and what you provided it appears to me that I need the 35" Series 380 Channel Balance Product Code: S380-35 Option 3450. Is that correct?
Thank you for all your help!
Based on this information and what you provided it appears to me that I need the 35" Series 380 Channel Balance Product Code: S380-35 Option 3450. Is that correct?
Thank you for all your help!
1 user uploaded image
Bob from SWISCO
Apr 16, 2024 1:05 pm
Yes, I agree! The S380-35 with a 3450 stamp should be the right size for your application.
Thanks for considering us and please let me know if we can be of any further assistance.
