Channel Balance for Single Hung Window

Question

Need to replace channel balances in two windows.  Want 4 channel balances 26 3 GW CMC 11 plus four 1 1/4 X 1/4 takeout clips.

Casey · Accepted Answer

Hello,

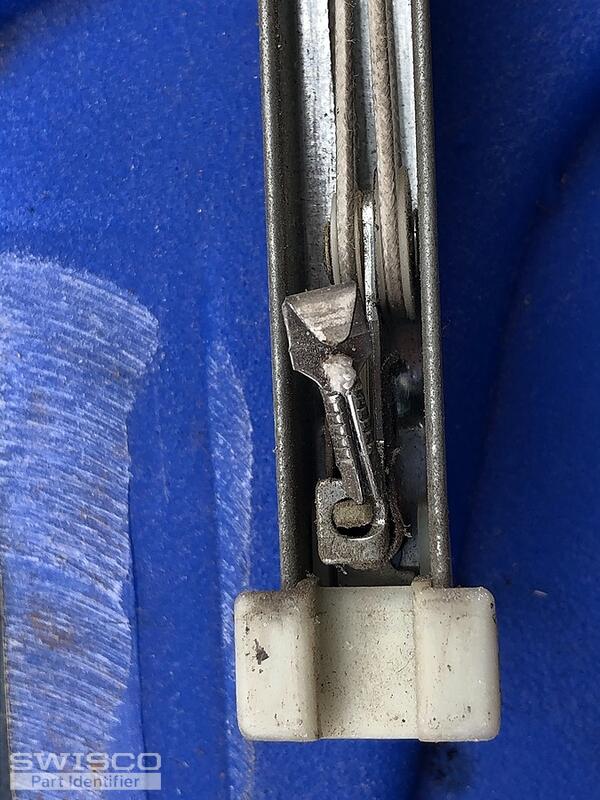

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2630 spring strength options for your replacement balances.

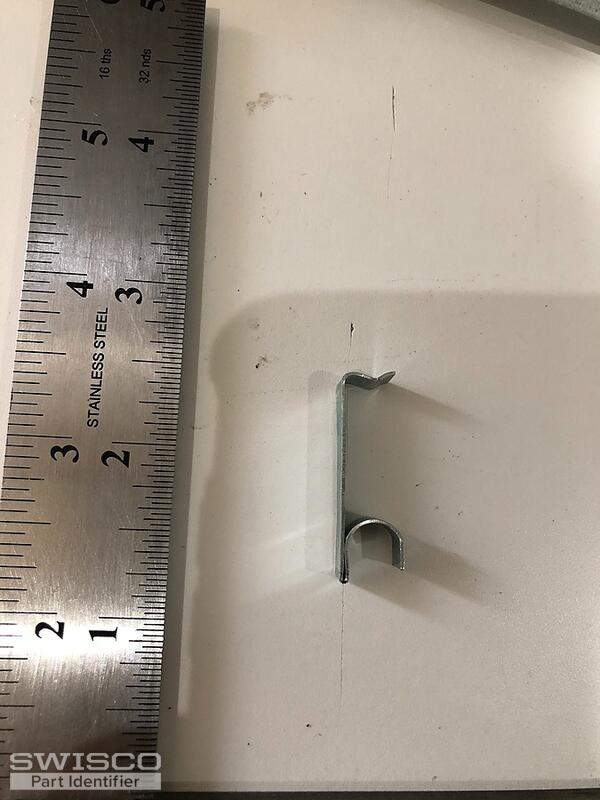

Also, see our 16-002 take-out clip shown in one of your photos. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
