Channel Balance for fixed window

Home Owner from Cincinnati 45204

Apr 20, 2020 5:55 pm

Hello. I need a replacement for a 28 inch metal shaft balance. Marked b 2730.

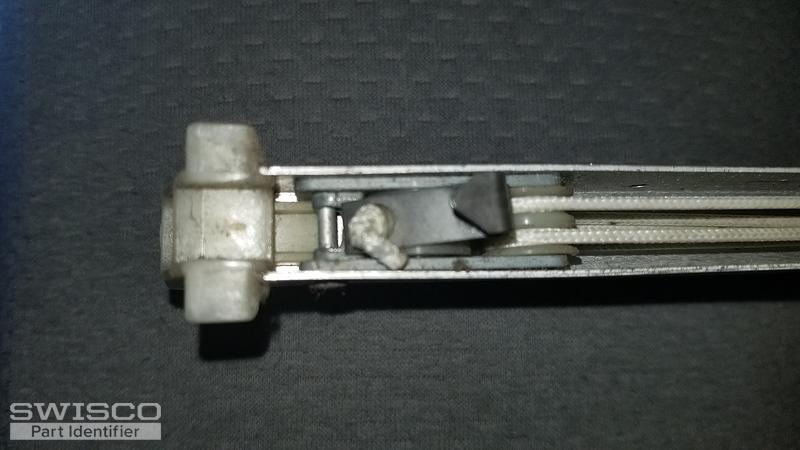

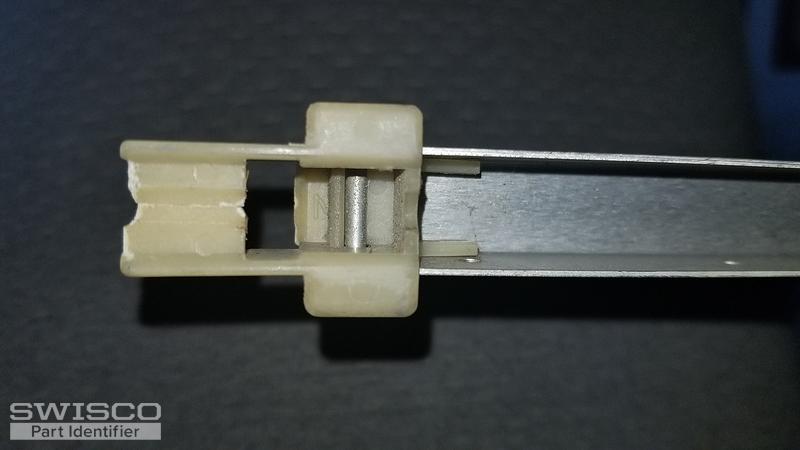

I included photos of the plastic parts. If you need additional information please let me know.

Thank you,
Steve

5 user uploaded images

4 Replies

Tom from SWISCO

Apr 23, 2020 10:32 am

Thanks for posting, Steve. Your balance looks like our S385-28. This has a 19-005 top and 15-004 bottom nylon fitting, so make sure to check the dimensions we show for each of these pieces. As long as the sizes match up, then our S385-28 should work well for your window.

Home Owner from Cincinnati 45204

Apr 23, 2020 5:17 pm

Hello and thanks for all your help.

A quick question. You are recommending the S385 line. How is this different than your S350 line.

Thanka again,
Steve

Tom from SWISCO

Apr 24, 2020 8:35 am

The Series 350 has a different combination of nylon fittings; specifically, the 19-002 top and 15-004 bottom. It's not necessarily a drastic difference, but we like to recommend you go with what was installed originally. There's no reason to change if it's been working fine all this time.
