Channel Balance question

Quick Learner from California

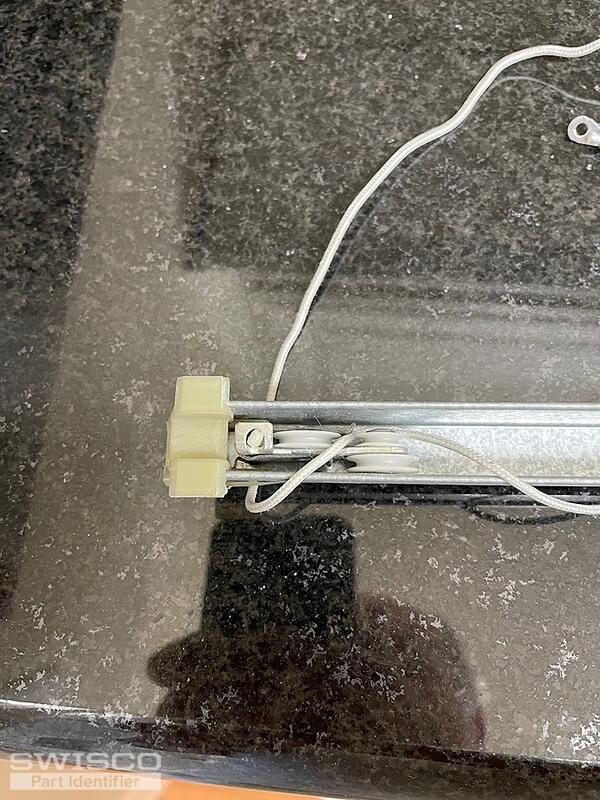

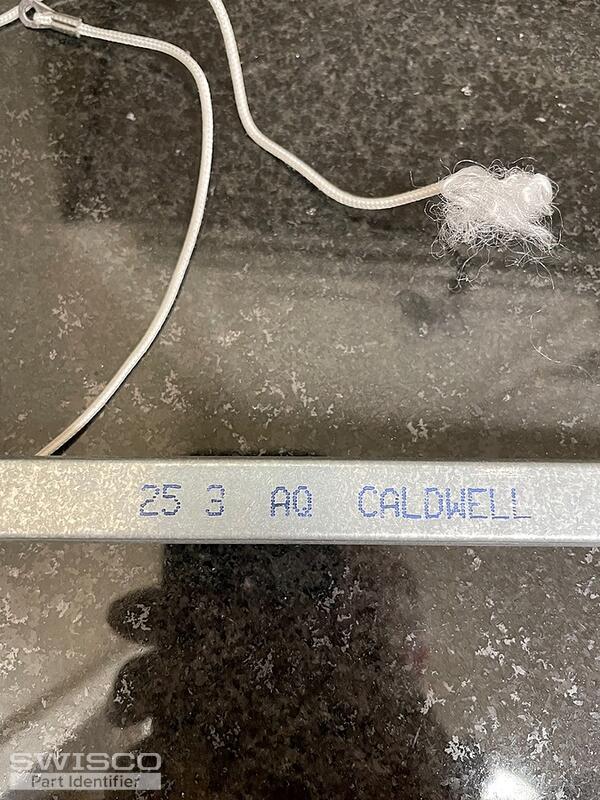

Hi - I believe I need a 26" 350 Channel Balance based on the info on your website. I am providing pictures to confirm this. Also, the stamp on the channel is "25 3", so I think this is option 2503, but am looking for your input. Thanks!
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

The Series 350 only has wings, or 'side tabs', on the bottom nylon fitting. Both of your balance's fittings have wings; therefore, you actually need either the S380-26 or S385-26. The only difference between these two balances is the depth of their bottom nylon shoe, or the shoe's 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the illustration below for reference. You are correct, the stamp 25-3 means you should select a stamp option of 2530.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
