Channel Balance replacement

Question

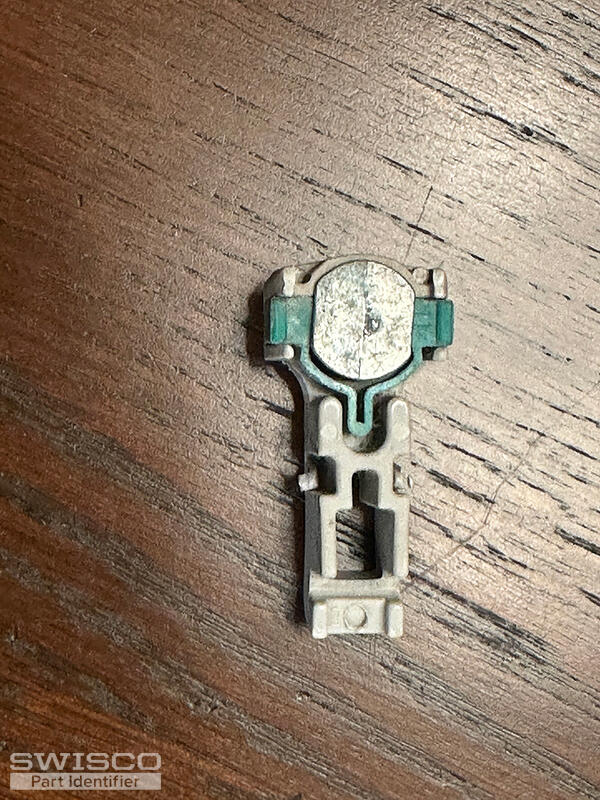

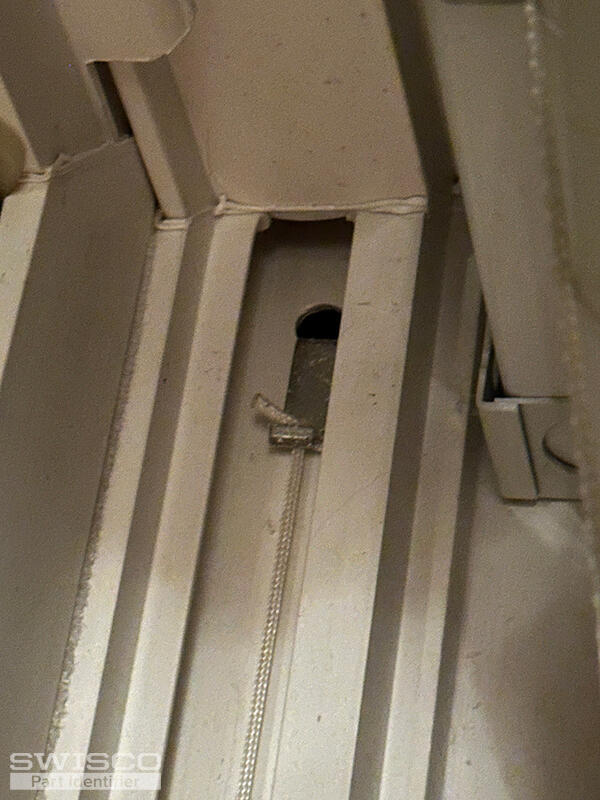

30 C Stamped on the cannel,  Hooks into round hole in track.  pictures of the foot/shoe atached, pic of the hook into hole attached as well.  need part numbers for the replacements if possible.  will have other windows as we with different channel balance tensions and lenghts but all seem to have same foot and hook.  one ictured is 30 inchels long and 9/16 th wide

Tom · Accepted Answer

We can supply this balance, but only as a custom order due to its configuration.

Before we go any further, can you just tell me how many you needed? Once we do that, we'll email you a purchase link and price quote that you can use to add them to your cart.

The balances will be made to the following configuration:

We'll use the Series 795 channel balance as a base, with a 30" long metal channel
We'll use the 30C stamp, which carries a sash weighing 19 through 24 pounds.
We'll be swapping the top clip out for the 15-194 hook.

You also need the 15-194 shoe, which is smaller than the one that comes with the Series 795 by default. However do to limitations in our shop we can't currently attach that to the balance for you. Therefore you need to buy the 15-194 separately and swap them out once you receive them. Don't forget to add the 15-194 shoe to your cart, as it won't otherwise be included with your order.

Once you supply a quantity, I'll email you that order link.
