Channel Balance (with clip) & T-Lock Balance Shoe

A home owner from Michigan says:
Hello,

I am in need of replacing my channel balance after the cord snapped. I am having trouble locating the exact correct parts.

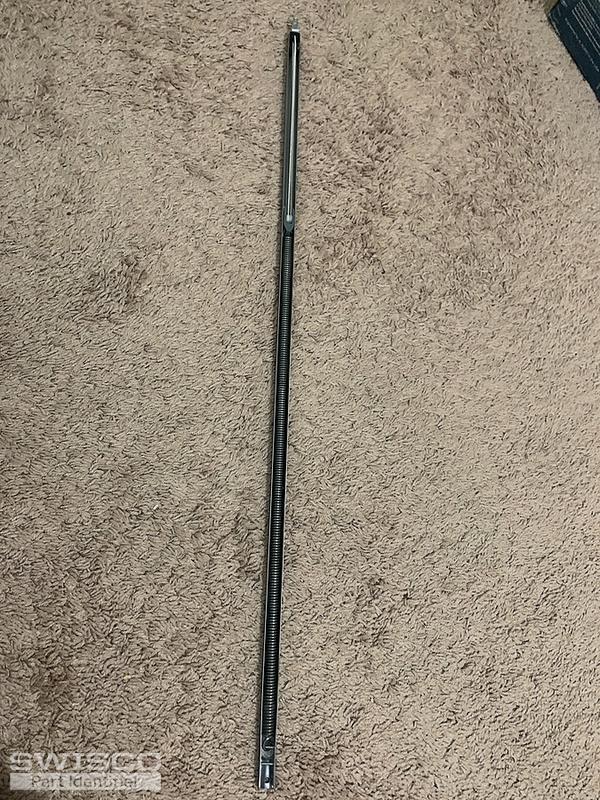

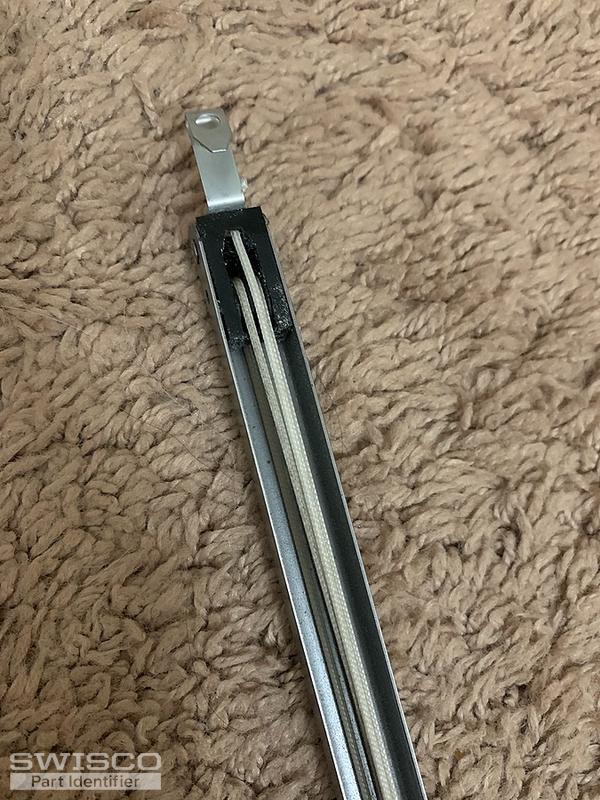

I know my balance is stamped 32D J0 on the back and is not ribbed. It measures 32" without any clips attached. From shopping on your site it seems the Series 795 is what I need but I require the balance clip attachment and not the regular one shown in the product page. And I am not 100% certain it is for sure the correct part. Based off the photos, would you think this is correct?

My T-lock is a 1-1/4" and closed cam, I think it matches Product Code: 15-195.

If there is any additional information you require from me, please let me know. Thank you for your assistance.

Best,
Justin
Thumbnail of the uploaded file named IMG-3061.jpg
Thumbnail of the uploaded file named IMG-3056.jpg
Thumbnail of the uploaded file named IMG-3057.jpg
Thumbnail of the uploaded file named IMG-3058.jpg
Thumbnail of the uploaded file named IMG-3060.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Justin. I agree, it looks like you have a Series 795 but with a hook at the top instead of a screw tab. This has to be a custom order, since that's not a stock configuration.

Before we go further, can you tell me how many you need? Once I know that, I'll email you a purchase link and price quote for that quantity. You can use that to place an order on our site.

A home owner from Michigan says:
I read online that if you're replacing one, you should replace them both. Is that a correct assumption?

If so I would like to purchase 2 sets please. And would there be any instructions for proper installation for this type of balance?
Profile picture of Tom
Tom from SWISCO responded:

Yes, you want to replace both at the same time. I'll shoot over an order link now for two.

We don't have instructions on this particular balance, but it's very easy. You slide the shoe in sideways, twist it, then tilt the balance up so you can hook it in at the top.
