Channel Balancer

A handy person from AZ says:

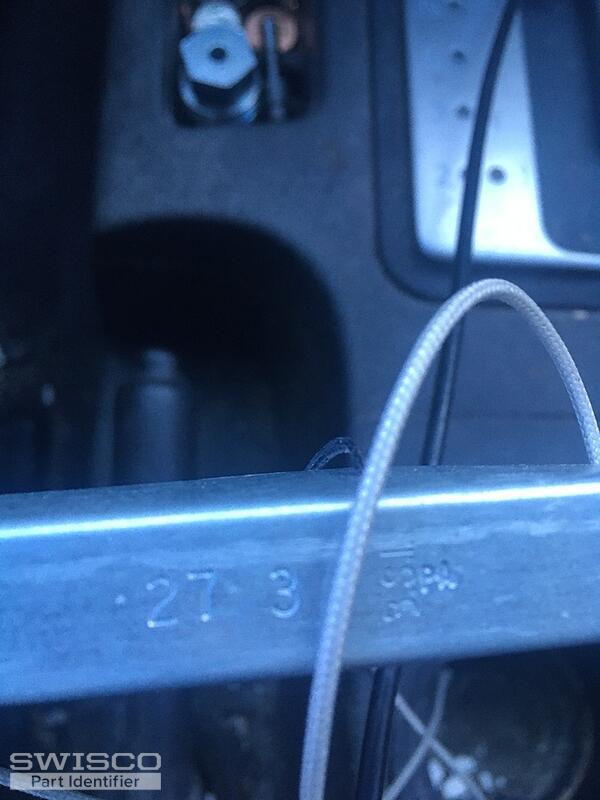

My window Channel balancer looks like it's 27 in. But this is all that is stamped on the balancer currently. What model should I pick?
Thumbnail of the uploaded file named IMG_9359.JPG
Profile picture of Tom
Tom from SWISCO responded:

I'm not sure what you have, unfortunately. We have dozens of different balances with that stamp. It's not a product code or anything, it just indicates the strength of the spring.

In order to figure out what Series this is, I need you to remove an undamaged version of this balance from the window and show me clear pictures of the top and bottom nylon fittings. I will also need to know the dimensions of these fittings.

A handy person from AZ says:

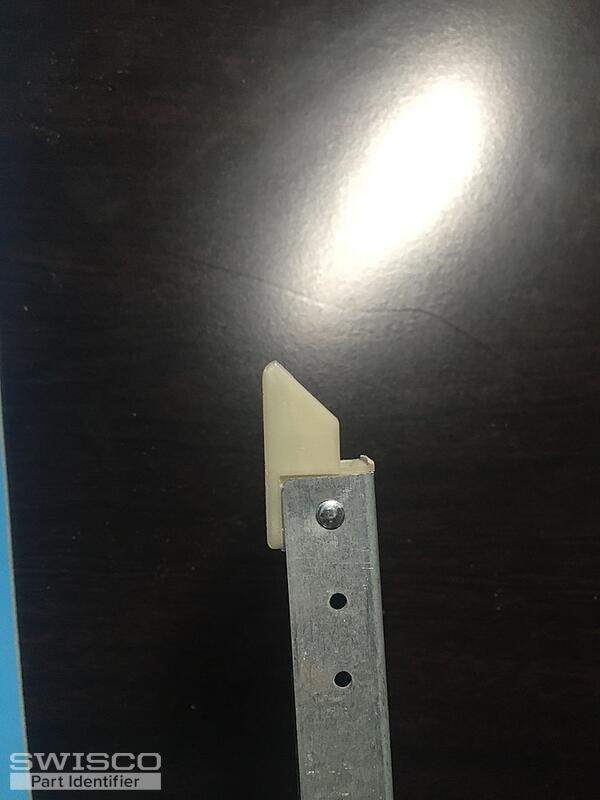

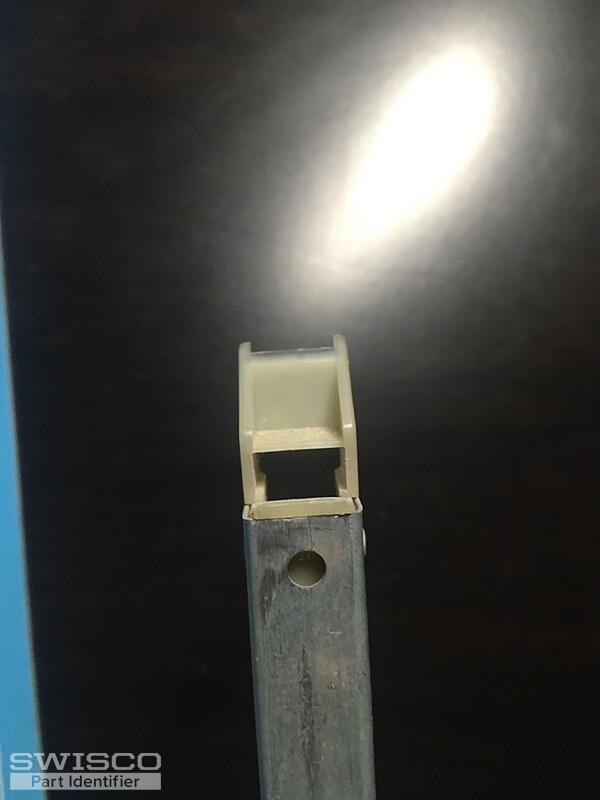

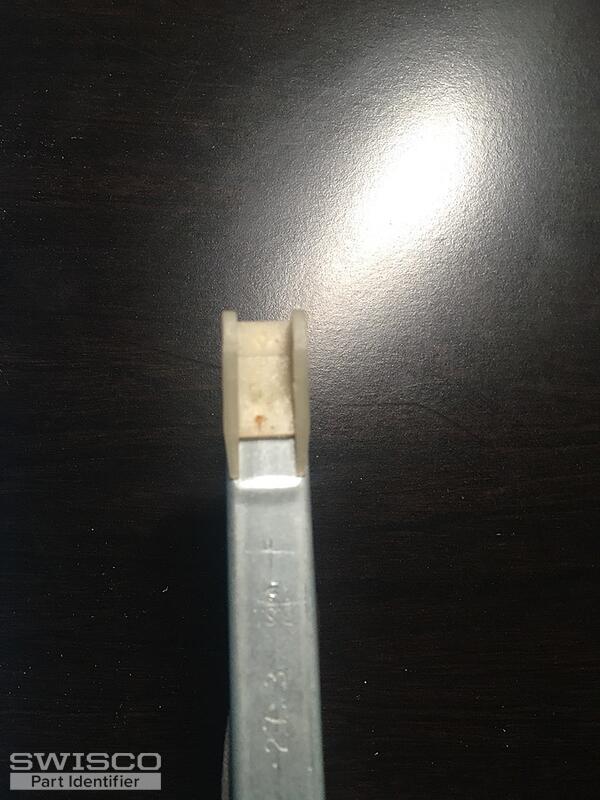

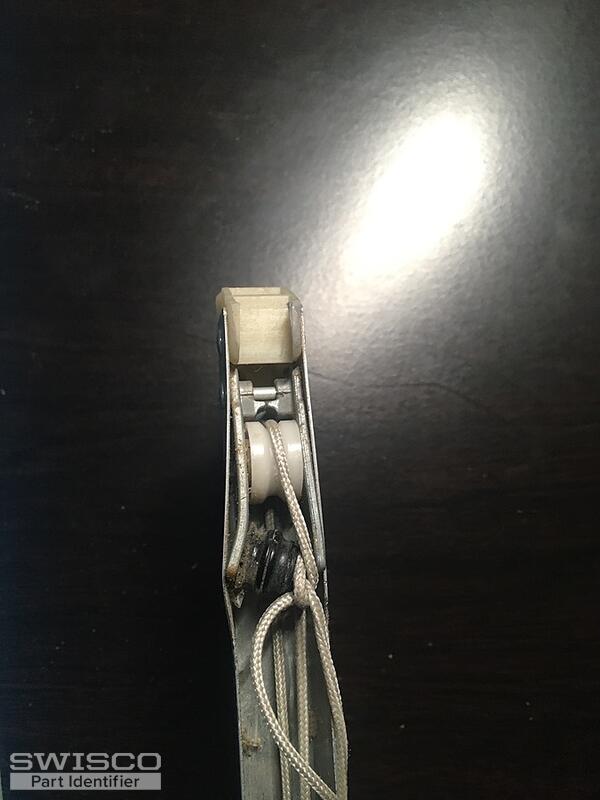

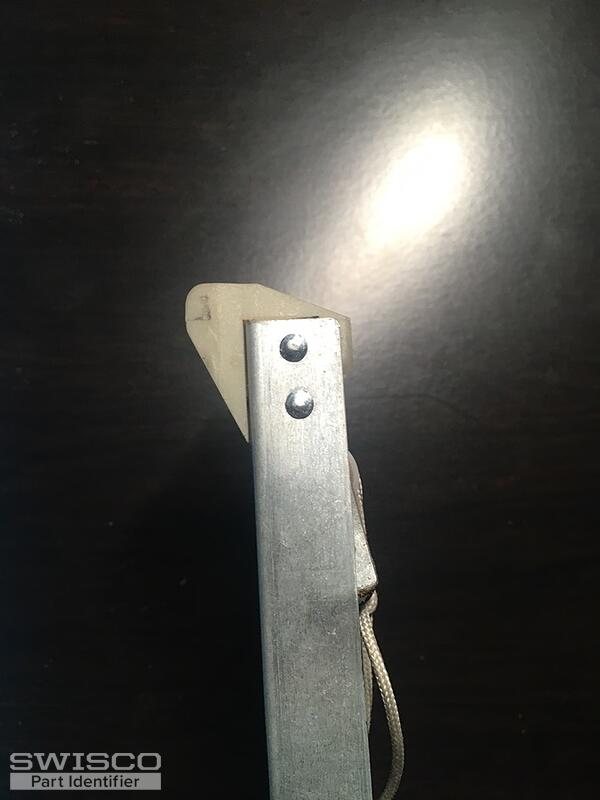

The metal part is 27" long. Photos are attached
Thumbnail of the uploaded file named F1223812-3939-41E4-95F6-05C3519C193D.jpeg
Thumbnail of the uploaded file named 299145DB-AF3D-4944-A7F0-2E677CE9BBBC.jpeg
Thumbnail of the uploaded file named 8CCB44F5-4D22-4414-BA38-EE5C652BA869.jpeg
Thumbnail of the uploaded file named D63A8794-4B77-450C-93BD-9E12FD298C99.jpeg
Thumbnail of the uploaded file named 3B38FB83-3CDA-4BF3-AA5B-A85633AB9847.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! These photos are a huge help. Based on what I see here, you have either our S351-27 or S390-27, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
