Channel Balances For Tilt Windows

Quick Learner

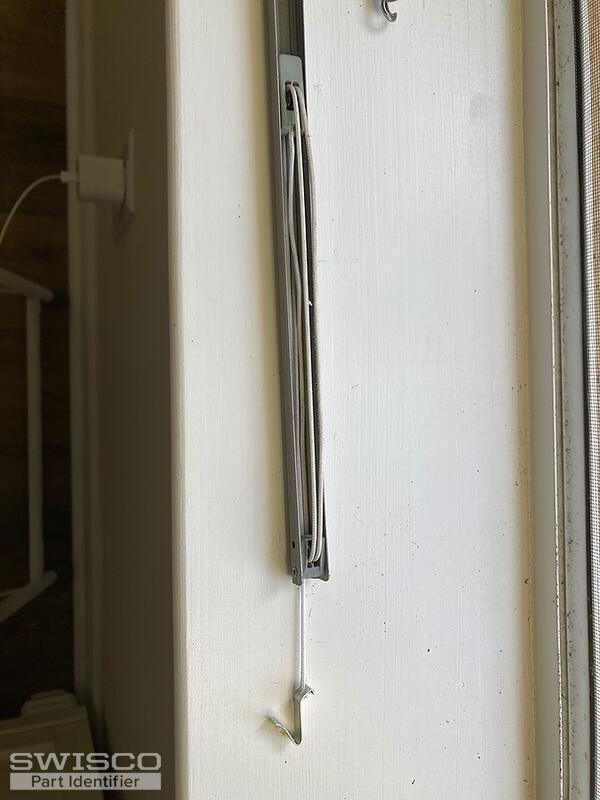

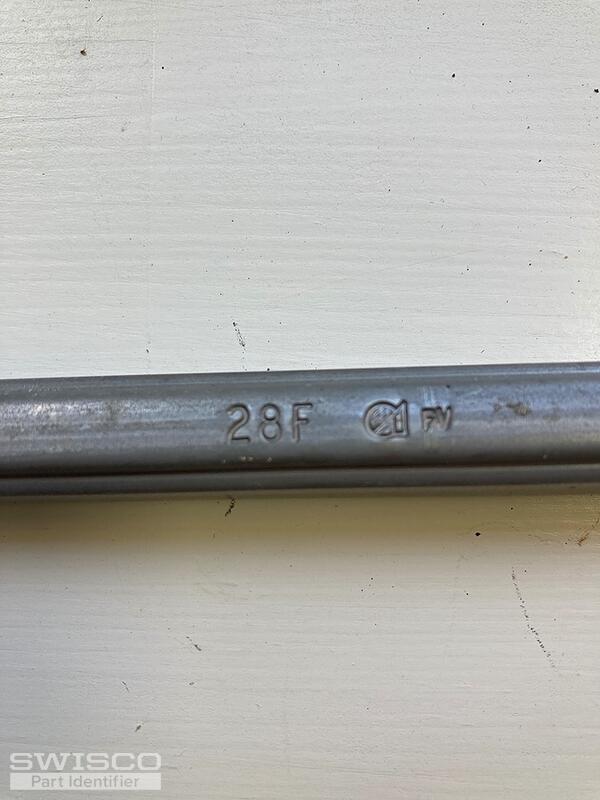

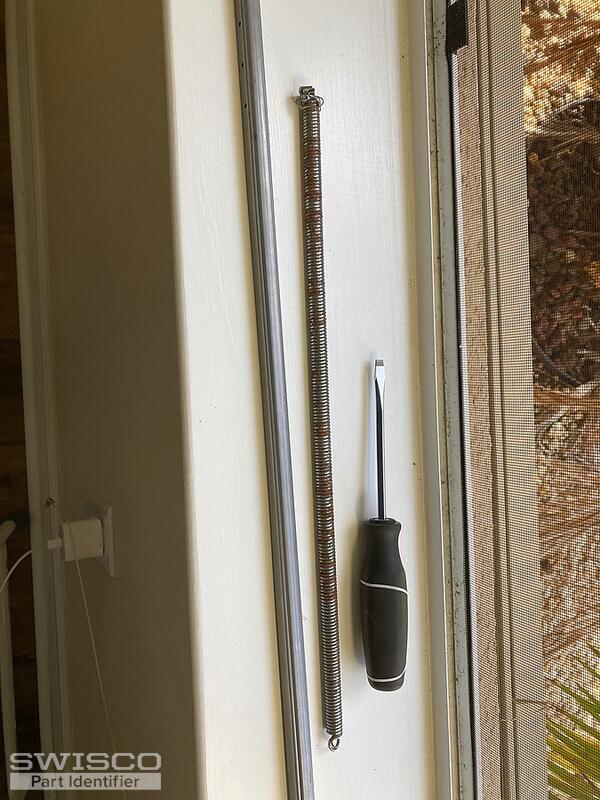

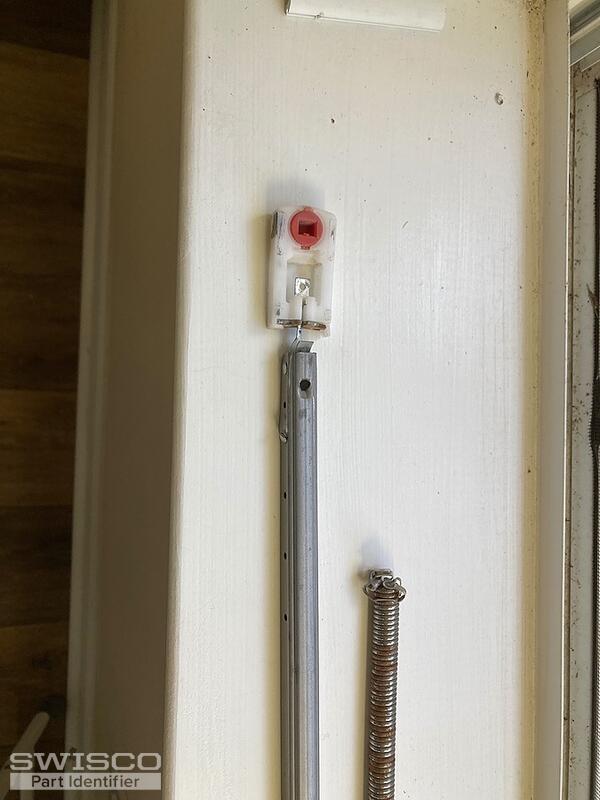

I'm trying to find Replacement Channel balances for my windows but can't find with the matching attachment
5 user uploaded images
3 Replies
Quick Learner

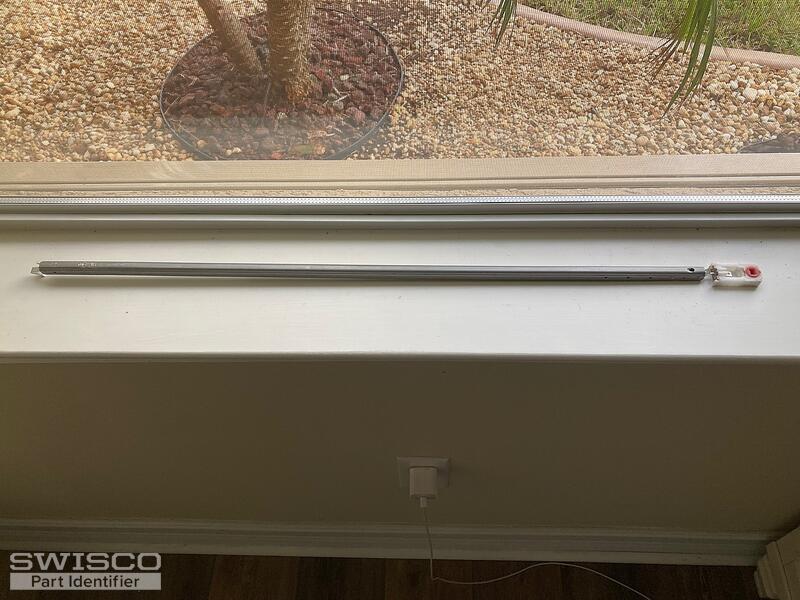

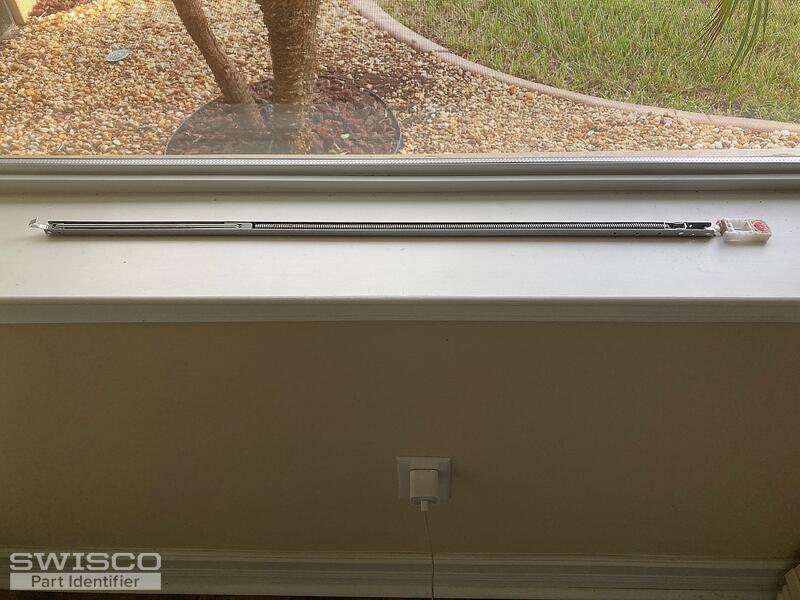

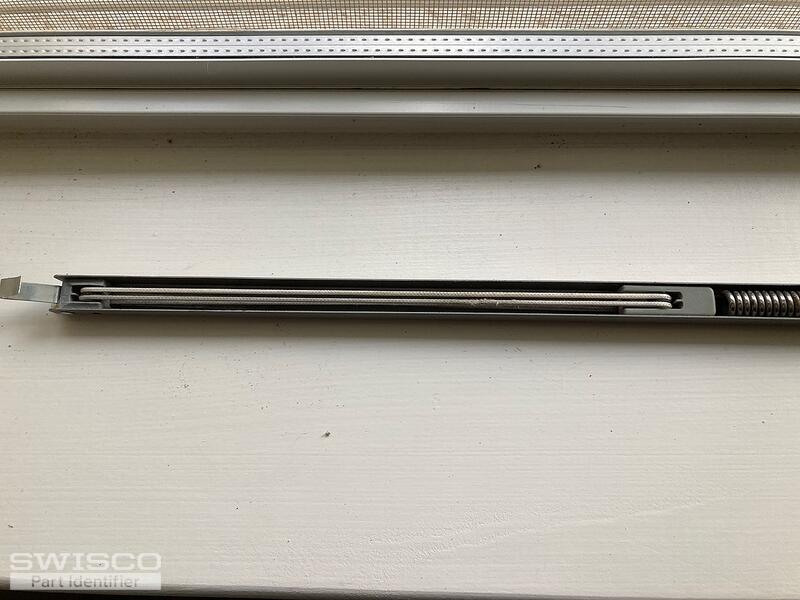

I've added additional photos of the balance that's still good if it helps
Regards,
Mark
4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Mark.

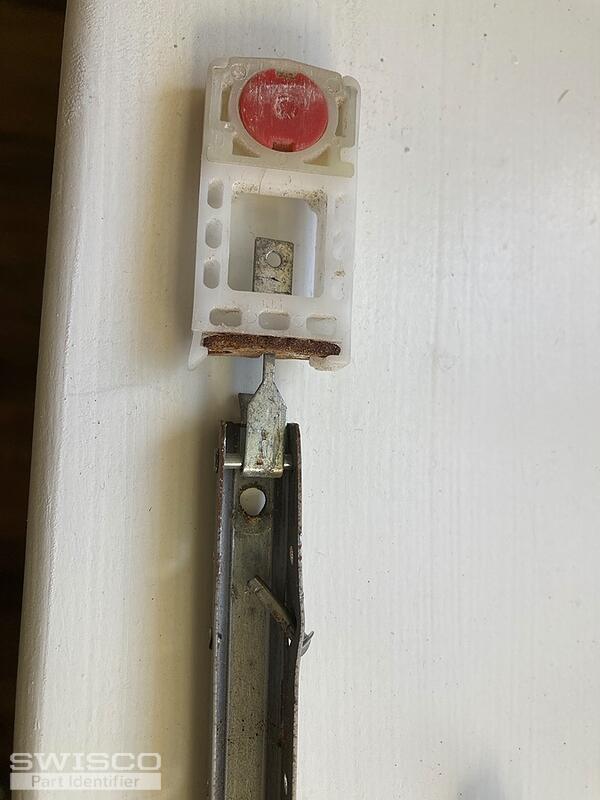

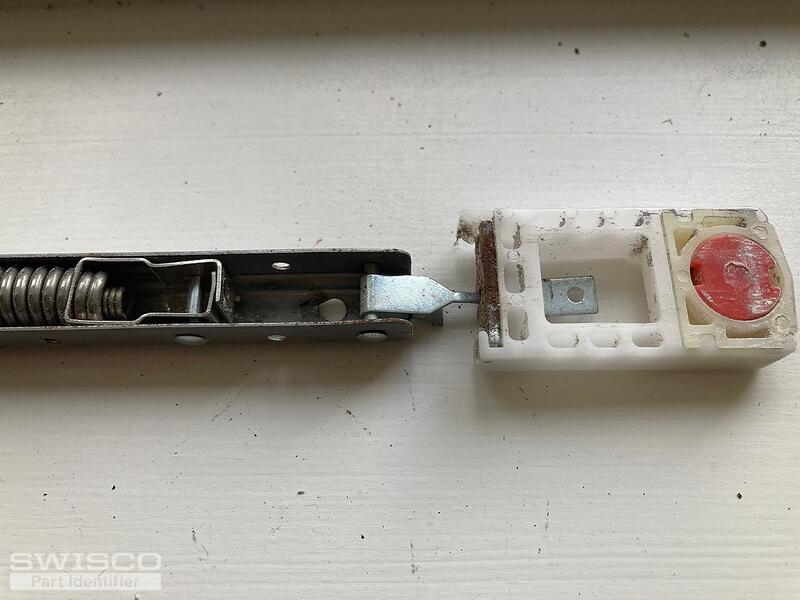

Thanks for reaching out to us. This is an old, discontinued balance. We can help supply replacements for it but it won't be a 1:1 match for what you show here. To outline it for you, we'll be using a "skinny" ribbed version of our Series 795. This balance comes with a T-lock shoe by default but you won't be able to use it. You'll need to pop it off and find a way to re-install the metal clip that anchors to your pivot shoe for our replacement to function. That metal clip is no longer available so it's very important you hold on to it.

To get the ball rolling, can you confirm the length of the metal channel? How many balances are you looking to replace?
