Channel Balances, tilt windows

A contractor from Florida says:

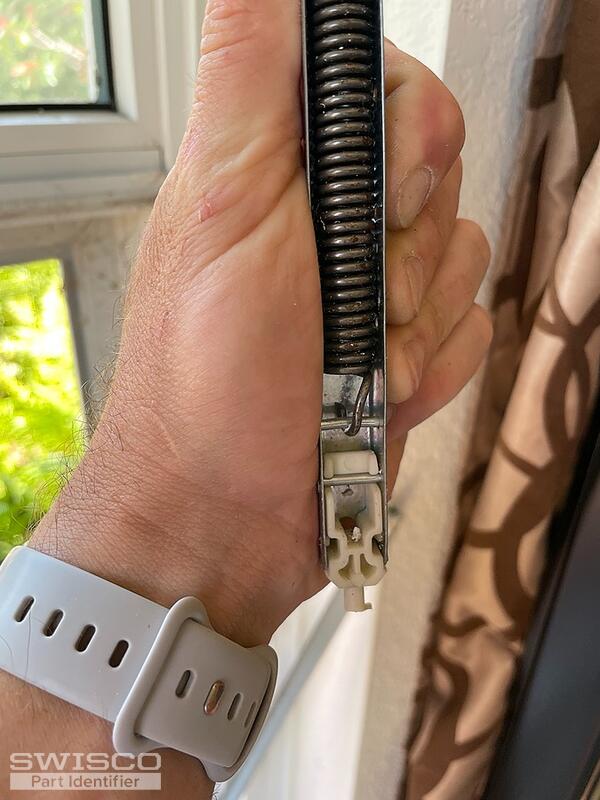

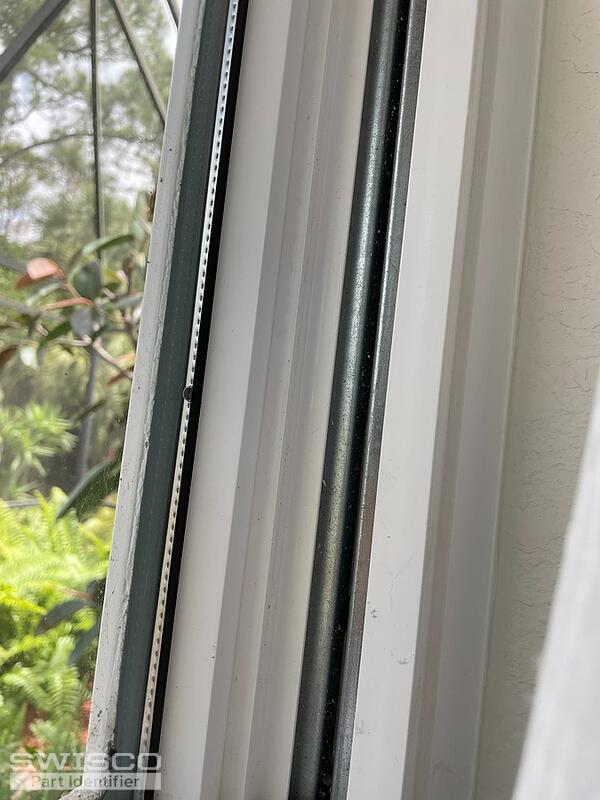

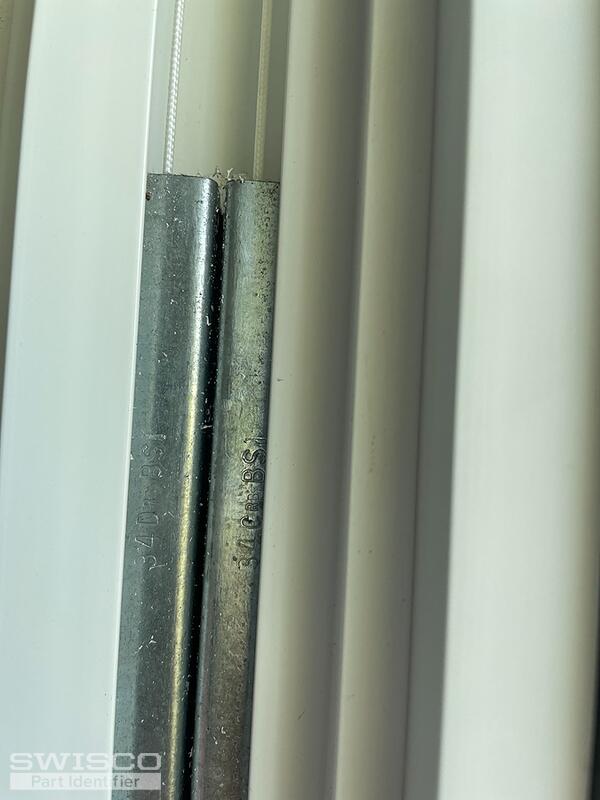

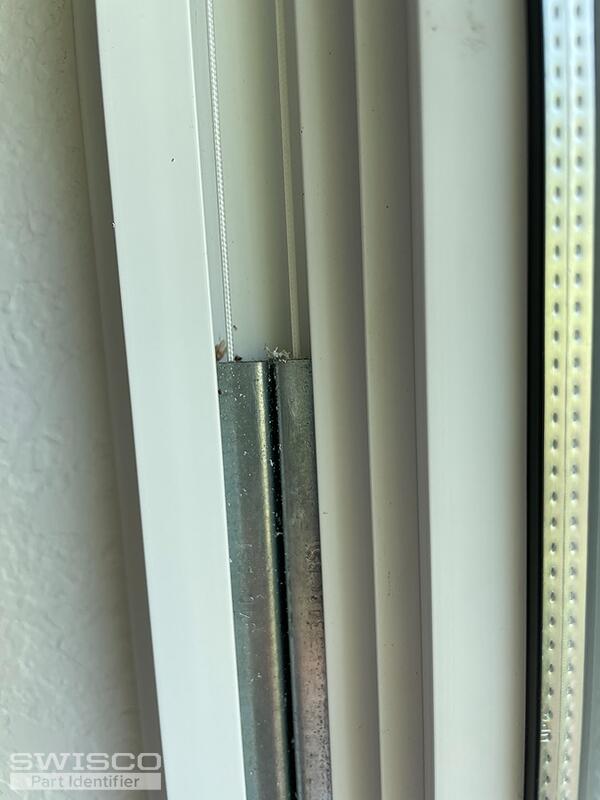

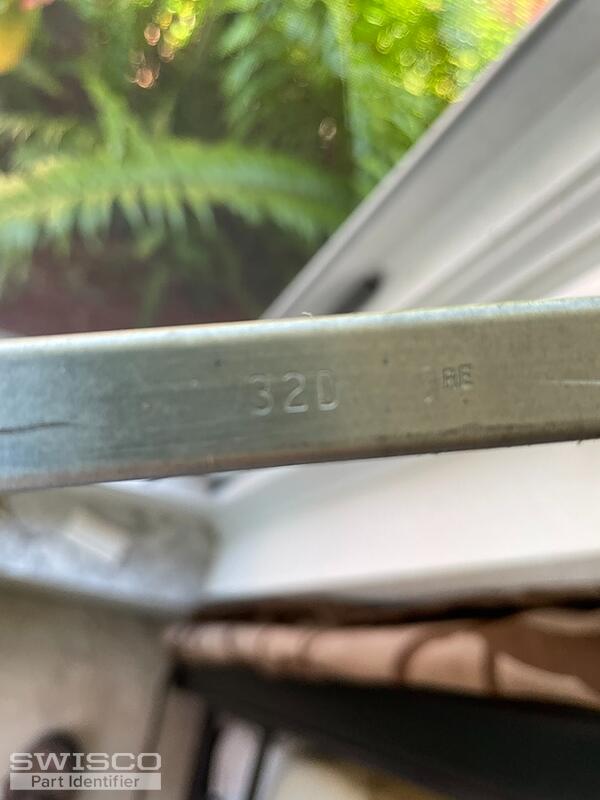

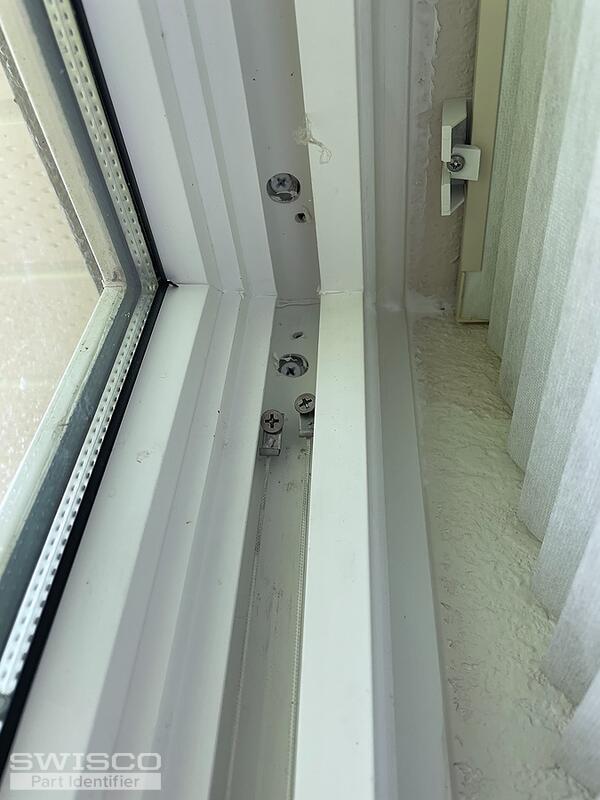

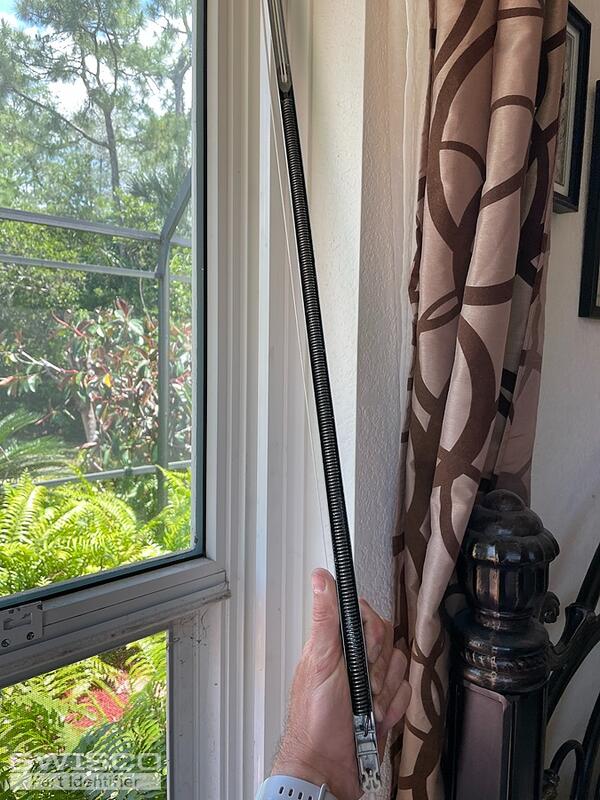

Numbers on one window are 32 C and D (two rods per side)
the other window 34 C and D (two rods per side)
Thumbnail of the uploaded file named 4D4F12C6-E17F-4331-B9D3-CB27023F6B7.jpeg
Thumbnail of the uploaded file named 4EC53BA8-28B1-48B4-9B14-26ECFD0B9C1.jpeg
Thumbnail of the uploaded file named 75D9BDF0-9938-4A20-AABE-5C494961CA6.jpeg
Thumbnail of the uploaded file named ABCF2C8A-3FD8-4A01-996E-701FF3372D0.jpeg
Thumbnail of the uploaded file named D6E61420-A3AB-492E-ABD0-47CACBF125C.jpeg
A contractor from Florida says:
Thumbnail of the uploaded file named 2F108E71-8463-4677-B5B8-85CD97AF235.jpeg
Thumbnail of the uploaded file named 4EC53BA8-28B1-48B4-9B14-26ECFD0B9C1.jpeg
Thumbnail of the uploaded file named B908AC54-4652-4C0E-9212-F44E58A6202.jpeg
Profile picture of Tom
Tom from SWISCO responded:

These balances look like they match our Series 795, but with one important difference: instead of the T lock shoe at the bottom, you have the 15-224 inverted link.

The good news is that these just snap on and off. You can purchase our Series 795 and the 15-224 inverted link separately and then just pop them on when you get them.

Let me know if you had any other questions.

A contractor from Florida says:
Thanks for the help!
