Channel Spring Confusion
Quick Learner from Sanibel, FL
Sep 24, 2020 12:22 pm

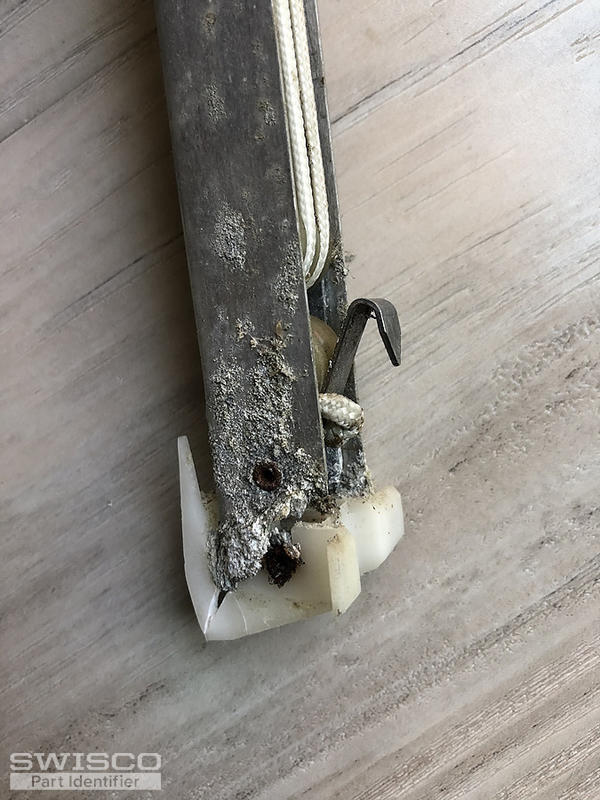

Good afternoon, I'm having trouble. Just the aluminum channel measures 23 inches and 1/2 inch wide. However I can't see a difference between the plastic Top/Bottom on your series S380, S385, or S395. Sure could use your assistance. Thank you! Oliver
4 user uploaded images
2 Replies
Casey from SWISCO
Sep 29, 2020 10:12 am
With this combination of attachments, you could have either an S380-23 or S385-23 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2230 spring strength options for your replacement balances.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
